| Engine and transmission |
| Displacement |
1584.0 ccm (96.66 cubic inches) |

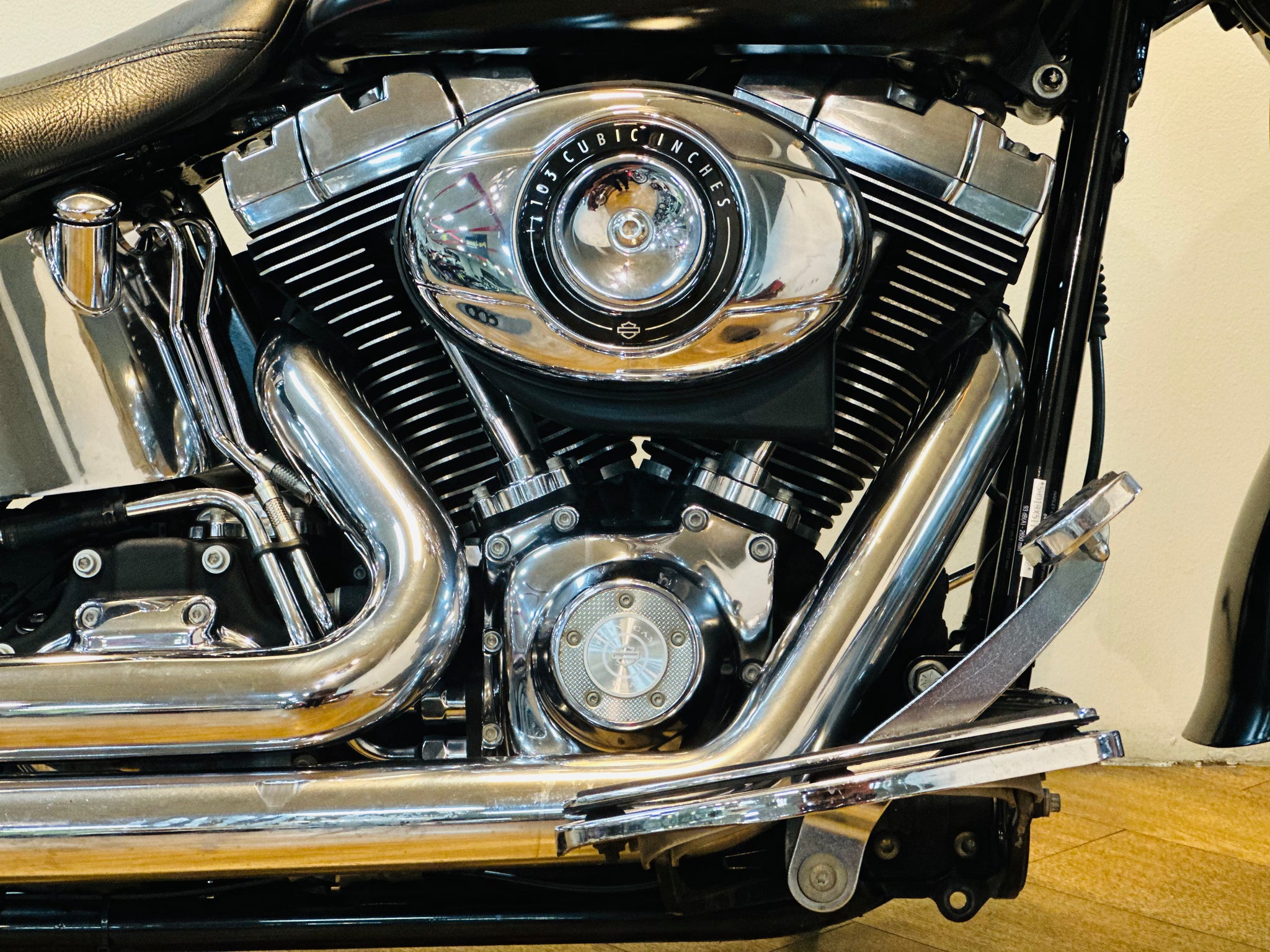

| Engine type |
V2, four-stroke |
| Torque |
120.0 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 3300 RPM
|
| Compression |
9.2:1 |
| Bore x stroke |
95.3 x 111.1 mm (3.8 x 4.4 inches) |
| Fuel system |
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling system |
Air |
| Gearbox |
6-speed |
| Transmission type |
Belt (final drive) |
| Clutch |
9-plate, wet |
| Exhaust system |
Chrome, over/under shotgun exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
| Frame type |
Mild steel tubular frame; rectangular section backbone; |
| Rake (fork angle) |
32.0° |
| Trail |
147 mm (5.8 inches) |
| Front suspension |
41.3mm telescopic, “beer can” covers |
| Front wheel travel |
130 mm (5.1 inches) |
| Rear suspension |
Hidden, horizontal-mounted, coil-over |
| Rear wheel travel |
109 mm (4.3 inches) |

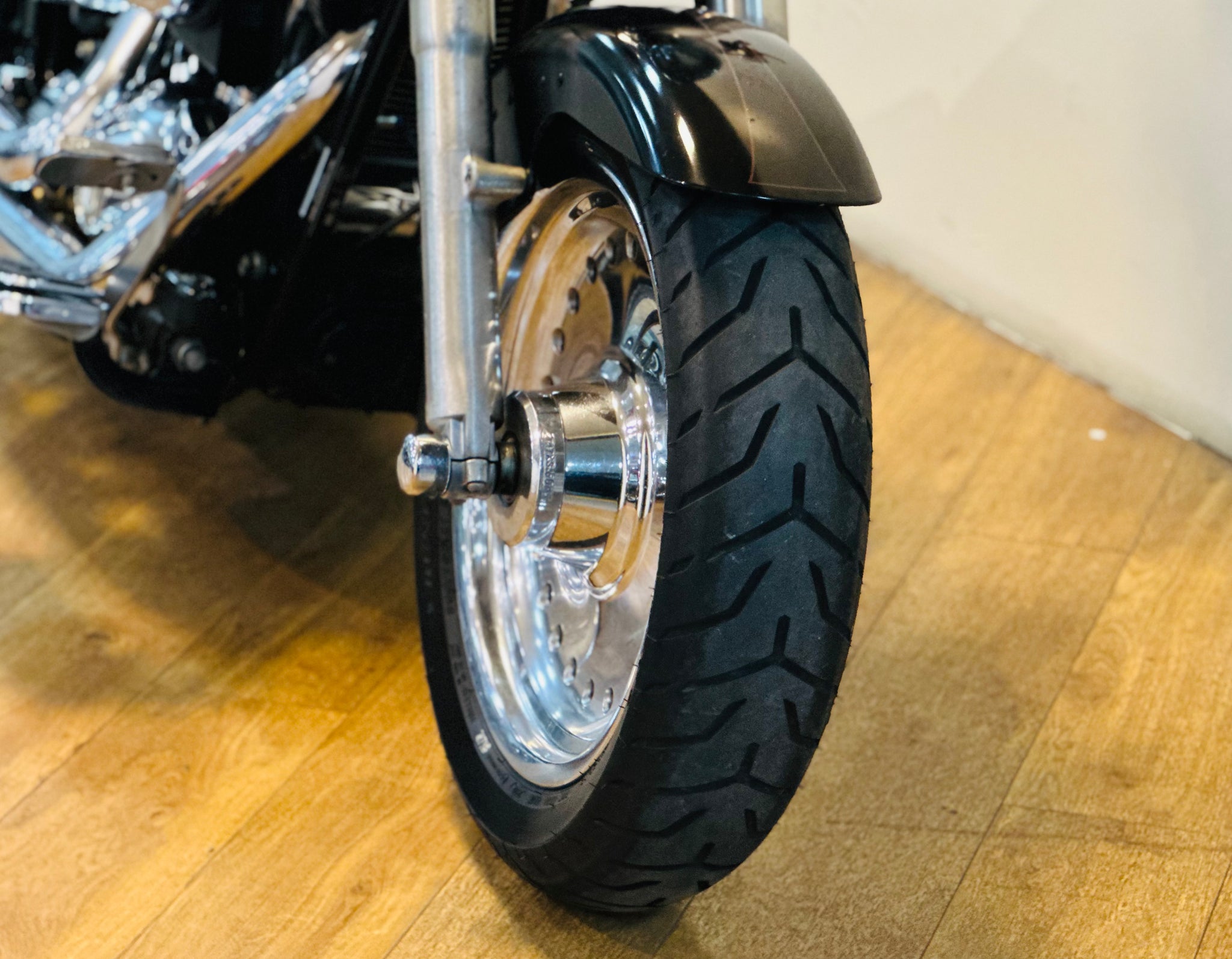

| Front tire |
140/75-R17 |
| Rear tire |
200/55-R17 |
| Front brakes |
Single disc. 4-piston |
| Diameter |
292 mm (11.5 inches) |
| Rear brakes |
Single disc. 2-piston |
| Diameter |
292 mm (11.5 inches) |
|
Physical measures and capacities |
| Dry weight |
313.0 kg (690.0 pounds) |
| Seat height |
645 mm (25.4 inches) If adjustable, lowest setting. |
| Overall length |
2396 mm (94.3 inches) |
| Ground clearance |
130 mm (5.1 inches) |
| Wheelbase |
1635 mm (64.4 inches) |
| Fuel capacity |
18.90 litres (4.99 US gallons) |
|
Other specifications |
| Color options |
Vivid Black, Black Pearl, Pewter Pearl, Flame Blue Pearl, Black Denim, Red Hot Sunglo |
| Starter |
Electric |
