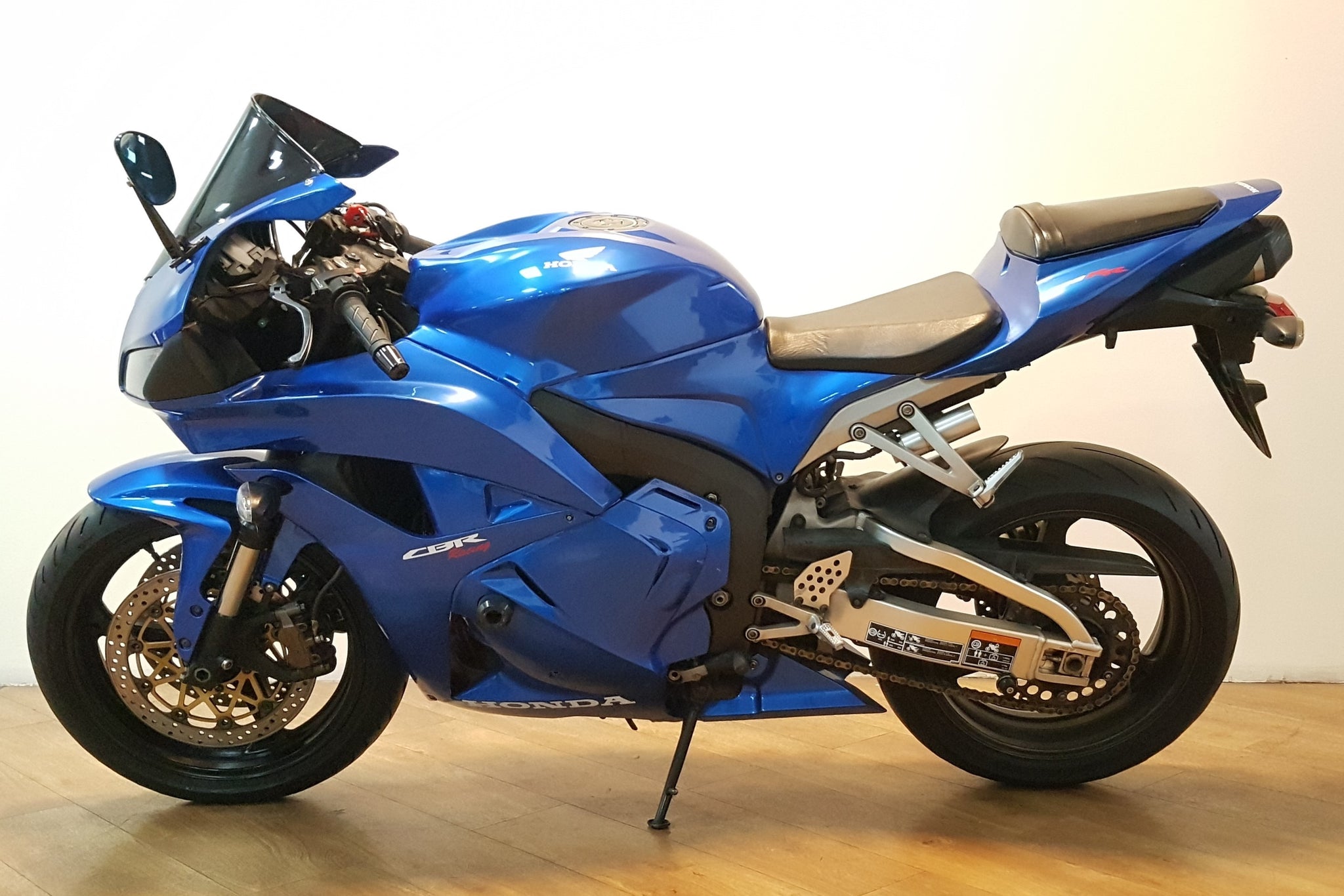

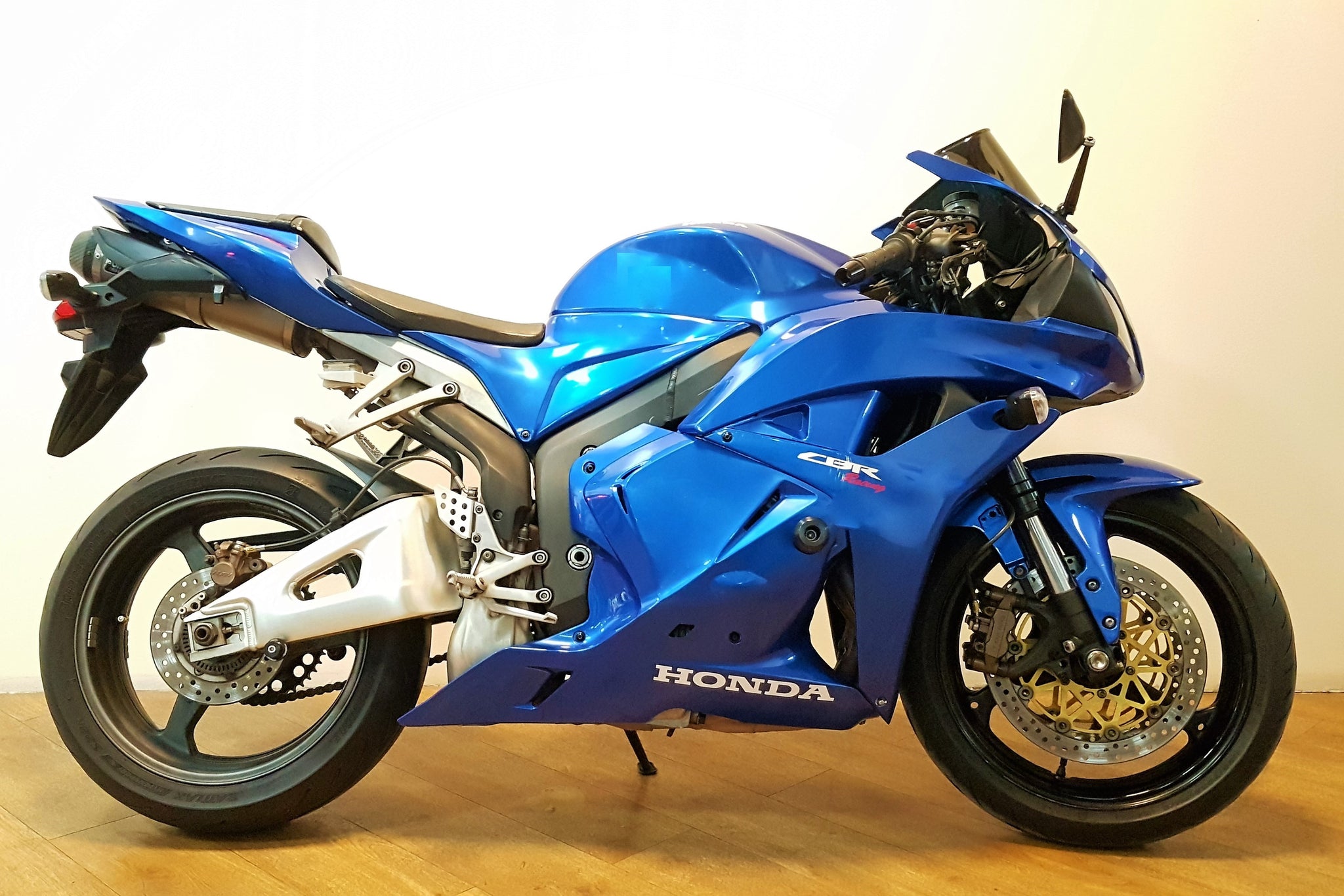

- Model: CBR600RR / CBR600RR C-ABS
- Engine Type: 599cc liquid-cooled inline four-cylinder
- Bore and Stroke: 67mm x 42.5mm
- Compression ratio: 12.2:1
- Valve Train: DOHC; four valves per cylinder
- Induction: Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors
- Ignition: Computer-controlled digital transistorized with 3-D mapping
- Transmission: Close-ratio six-speed
- Final Drive: #525 O-ring chain

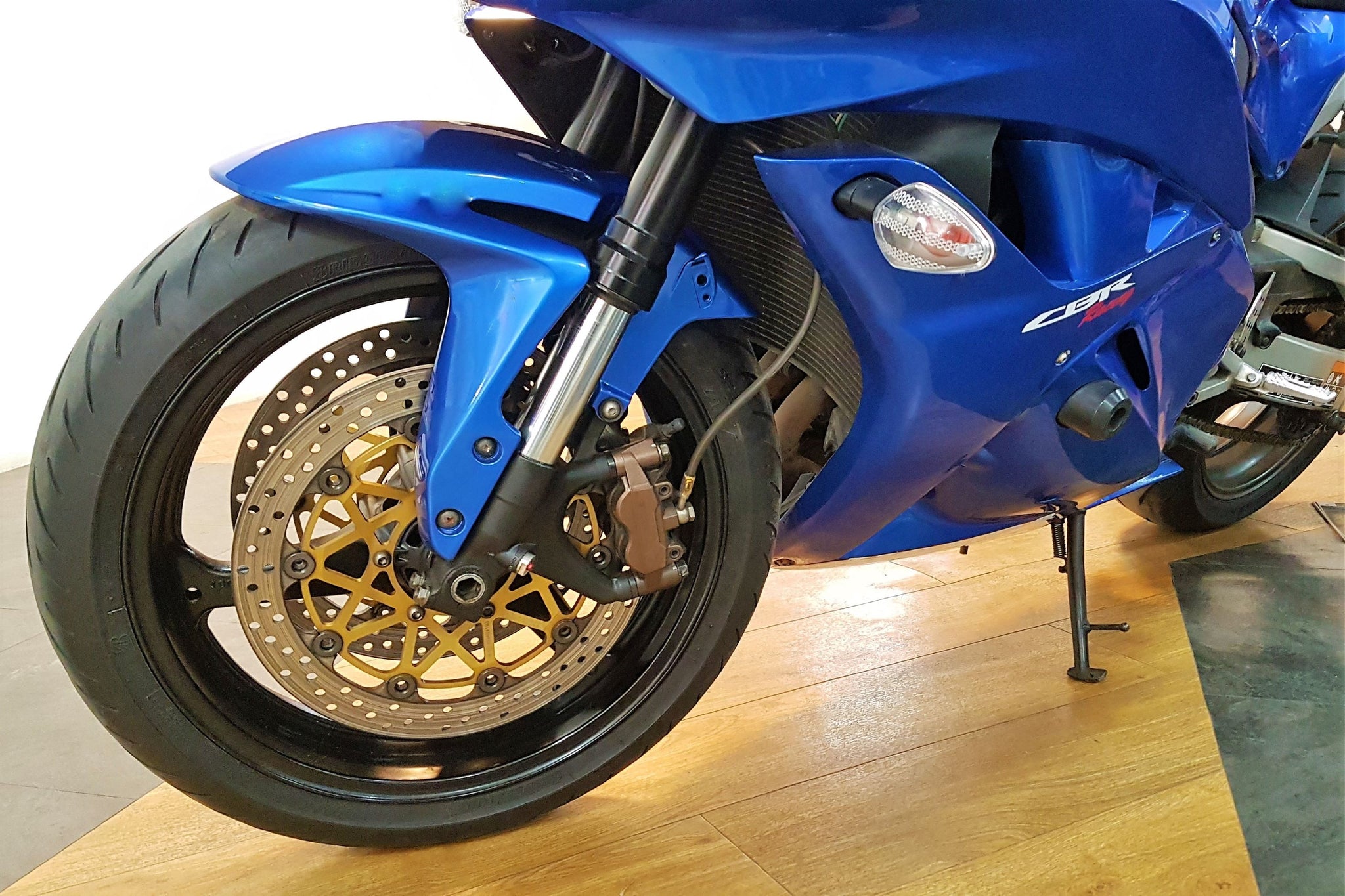

- Suspension Front: 41mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 4.3 inches travel

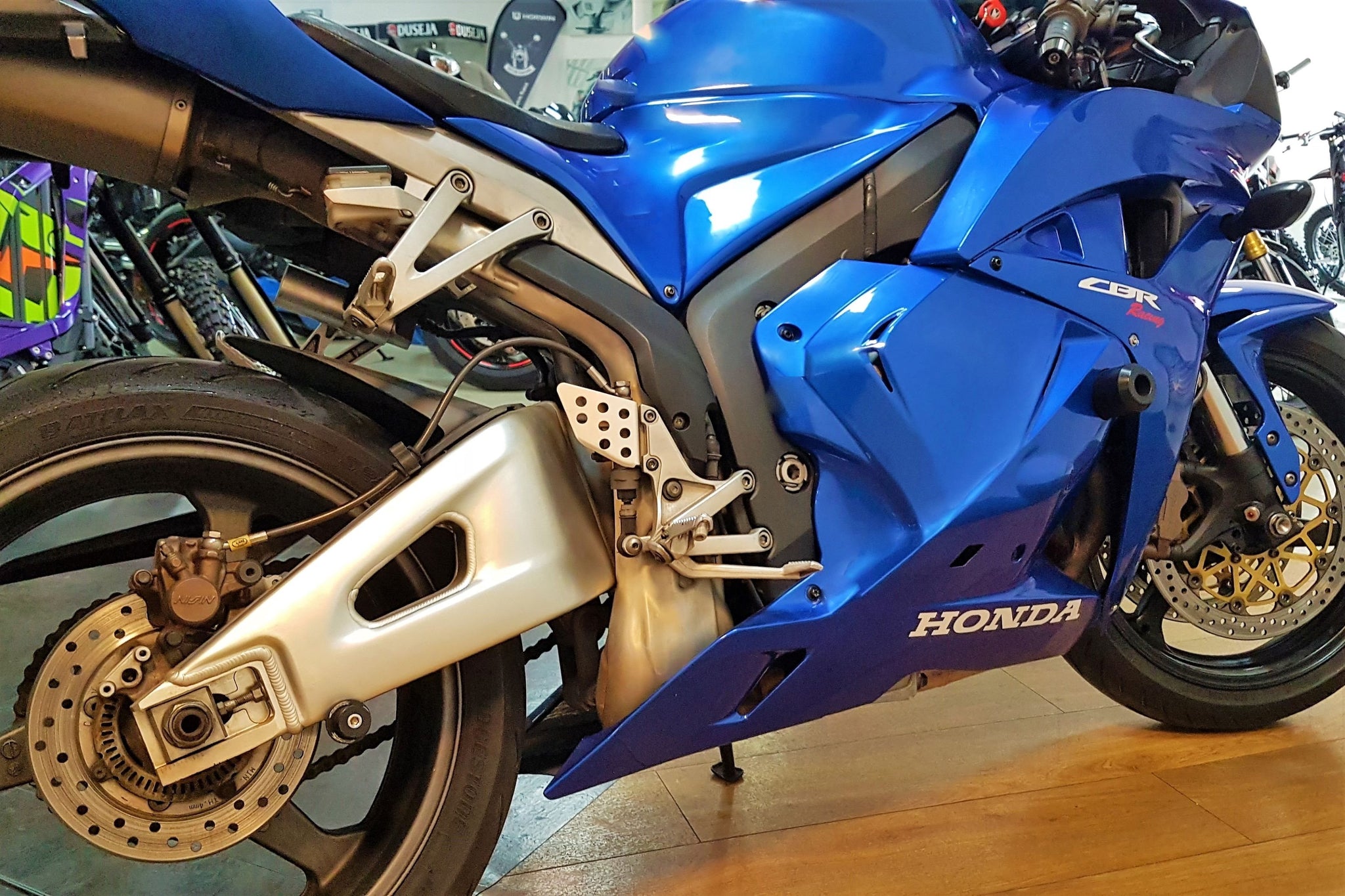

- Rear: Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability; 5.1 inches travel
- Brakes Front: Dual radial-mounted four-piston calipers with 310mm discs
- Rear: Single 220mm disc; Optional Honda Combined ABS (CBR600RR C-ABS)
- Tires Front: 120/70ZR-17 radial
- Rear: 180/55ZR-17 radial
- Wheelbase: 53.9 inches
- Rake: 23.5°
- Trail: 97.7mm (3.9 inches)
- Seat Height: 32.3 inches

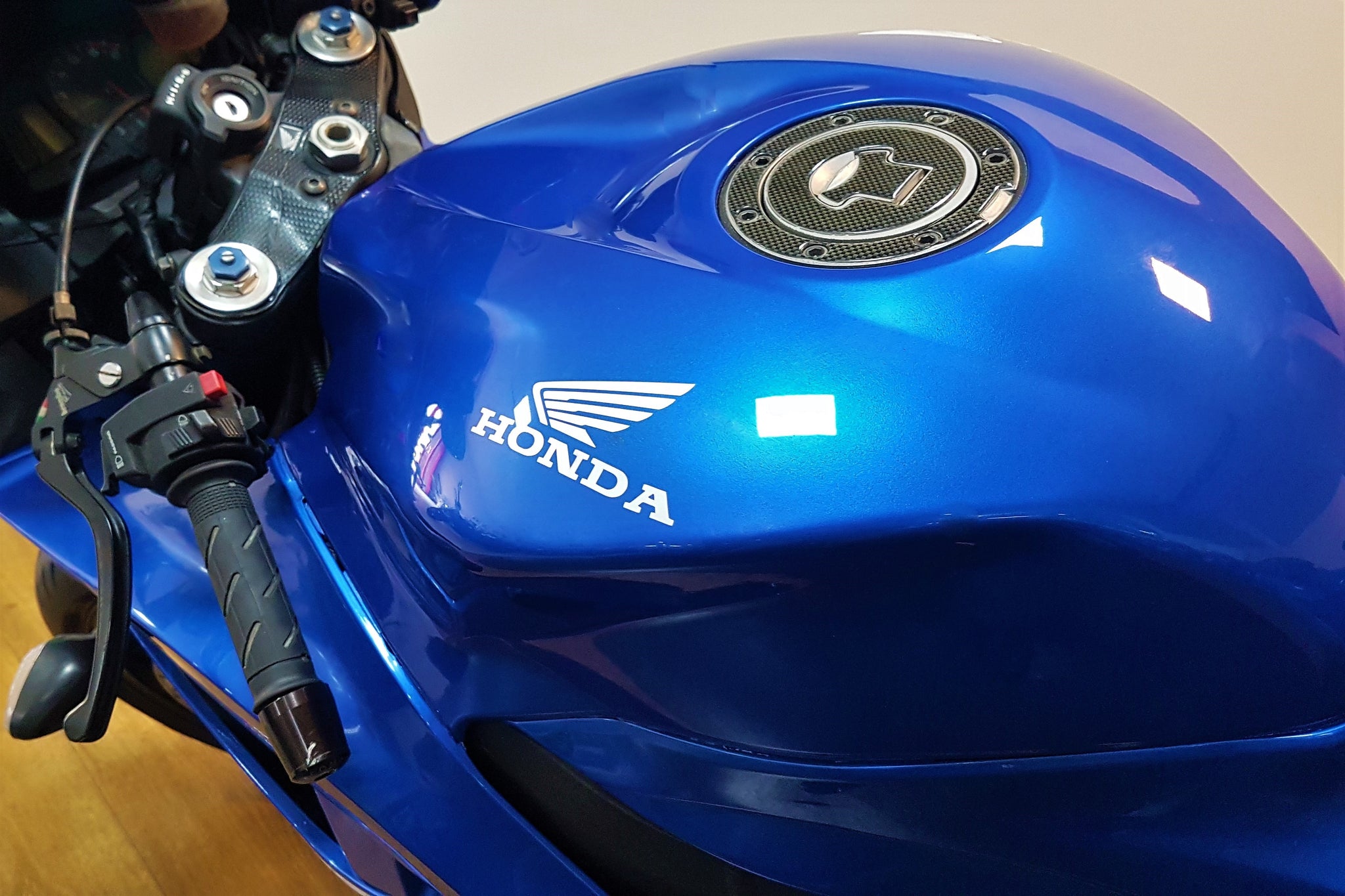

- Fuel Capacity: 4.8 gallons, including 0.9-gallon reserve
- Estimated Fuel Economy: 40 mpg
- Curb Weight: 410 pounds (CBR600RR) / 434 pounds (CBR600RR C-ABS)
