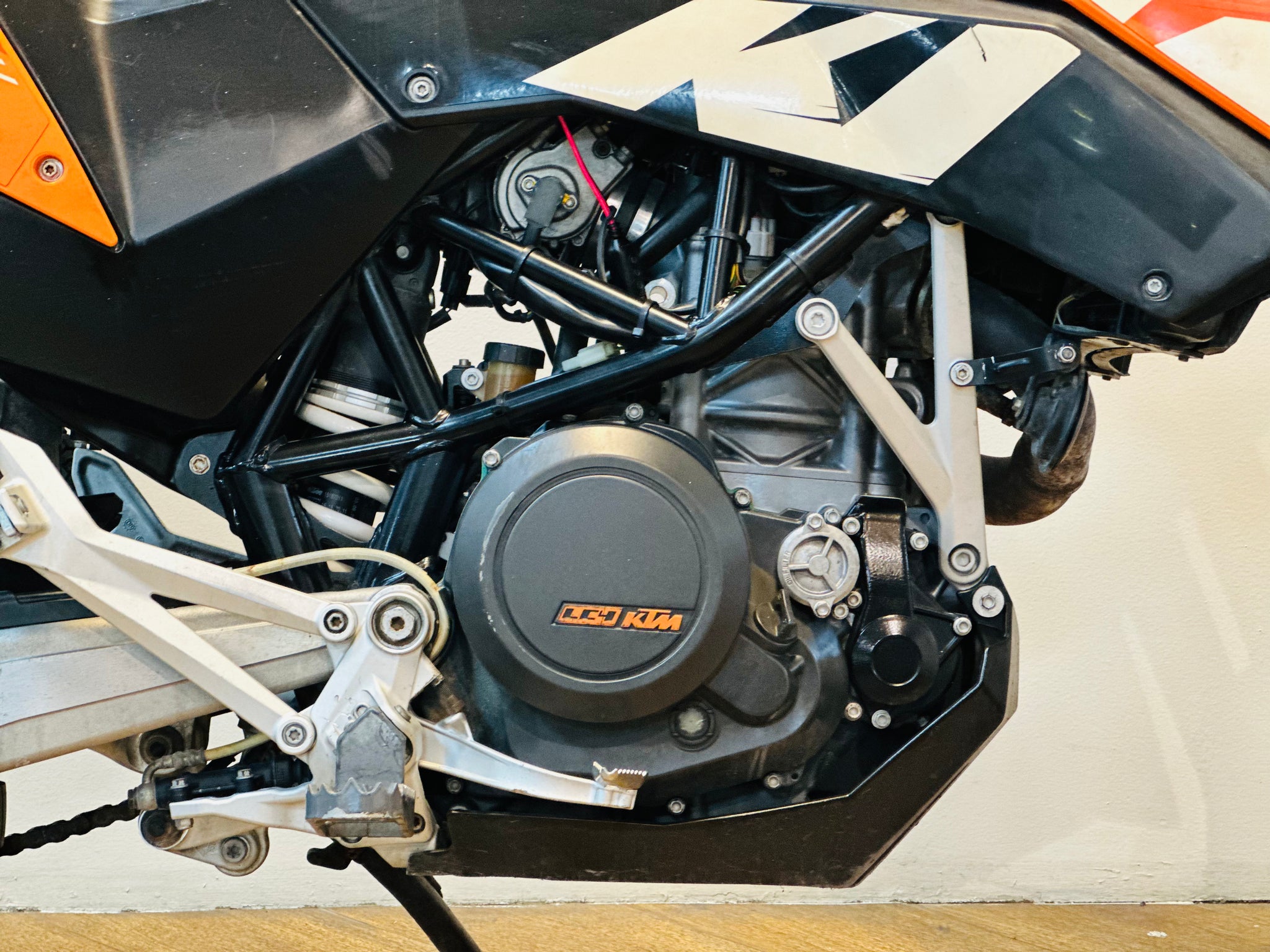

Engine Type
Single-Cylinder
Cylinders
1
Engine Stroke
4-Stroke
Horsepower (bhp/kW)
62.4 / 46.3
Horsepower RPM
7500
Torque (Ft Lbs/Nm)
47.2 / 64
Torque RPM
6000
Cooling
Liquid
Valves
4
Valves Per Cylinder
4
Valve Configuration
OHV
Bore (mm/in)
102 / 4.02
Stroke (mm/in)
80 / 3.15
Displacement (cc/ci)
654 / 39.9
Compression Ratio
11.8:1
Starter
Electric
Fuel Requirements
Regular
Fuel Type
Gas
Carburetion Brand
Keihin
Fuel Injector
No
Carburetor
Yes
Number Of Carburetors
1
Carburetion Type
Carburetor
Transmission
Transmission Type
Manual
Number Of Speeds
6
Primary Drive (Rear Wheel)
Chain
Reverse
No
Wheels & Tires
Wheels Composition
Aluminum
Tube / Tubeless
Tubed
Front Wheel Width (in)
3.5
Rear Wheel Width (in)
5
Chromed
No
Front Tire Width
120
Front Tire Aspect Ratio
70
Front Wheel Diameter
17
Rear Tire Width
160
Rear Tire Aspect Ratio
60
Rear Wheel Diameter
17
Front Tire (Full Spec)
120/70 R17
Rear Tire (Full Spec)
160/60 R17
Brakes
Brake Brand Name
Brembo(R)
Front Brake Type
Disc
Front Brake Diameter (in/mm)
12.6 / 320
Rear Brake Type
Disc
Rear Brake Diameter (in/mm)
9.5 / 240
Suspension

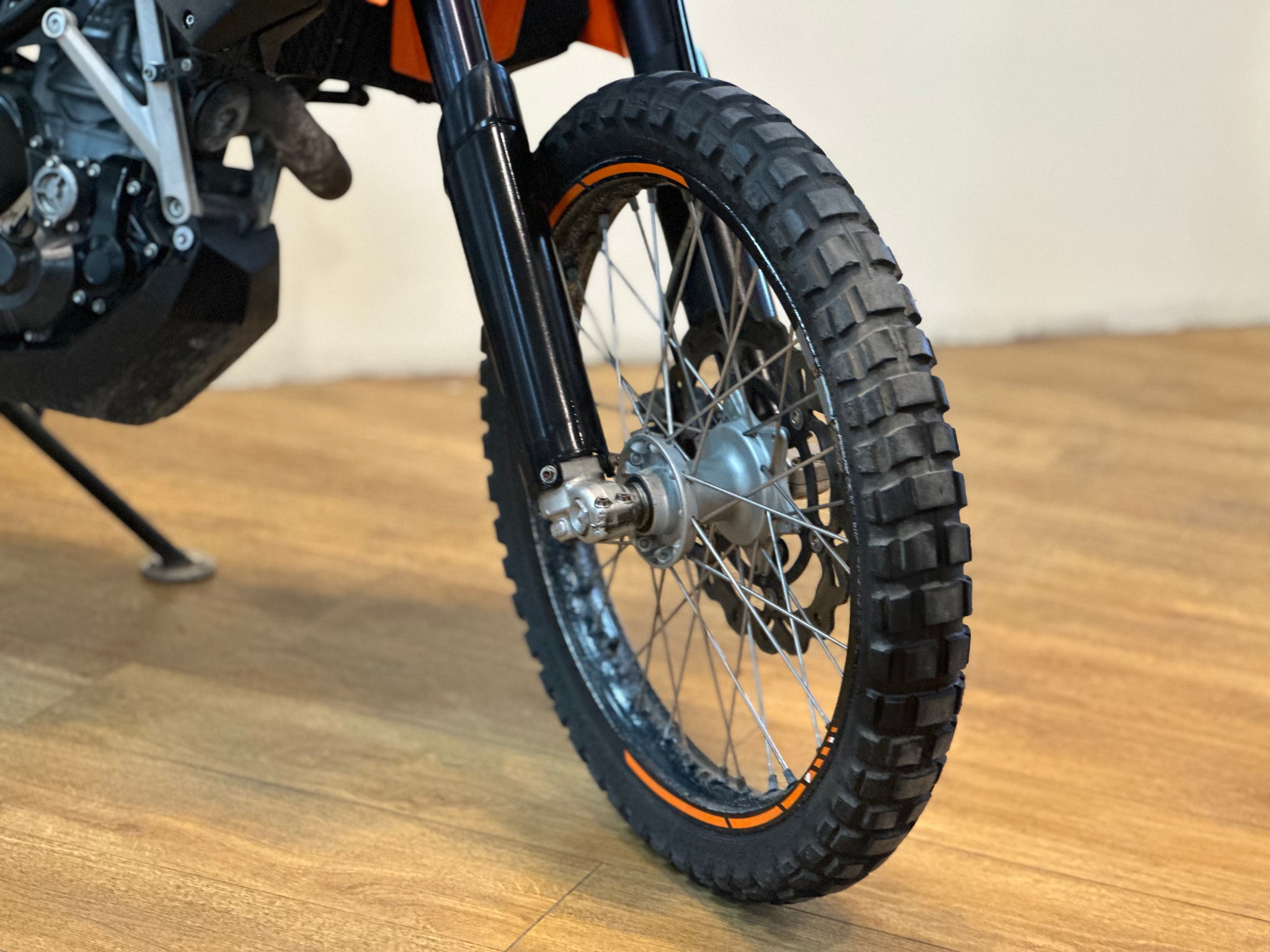

Front Suspension Type
Inverted Fork
Front Suspension Size (in/mm)
1.9 / 48
Front Travel (in/mm)
10.8 / 275
Front Adjustable Rebound Damping
Yes
Front Central Suspension Strut
No

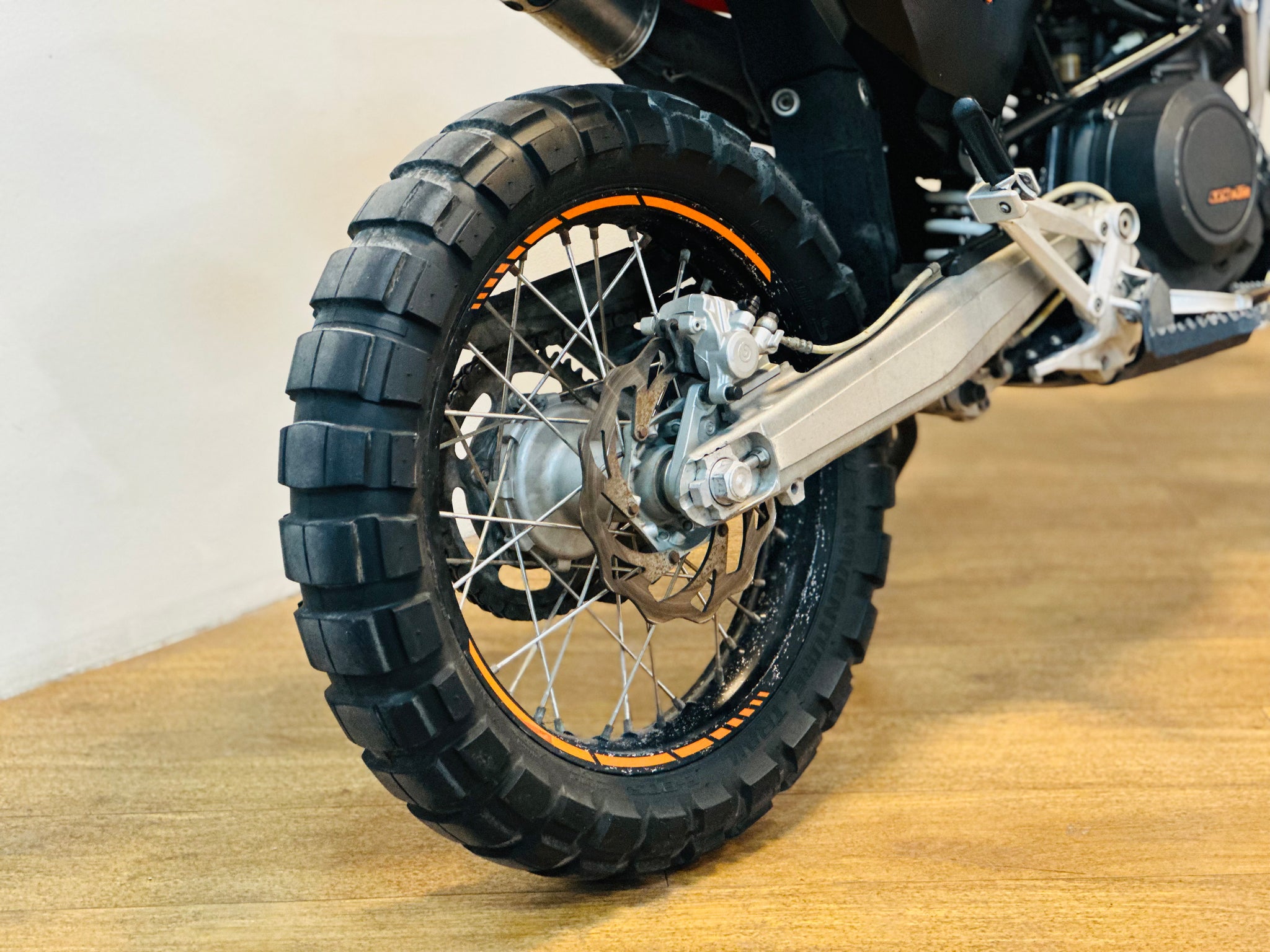

Rear Suspension Type
Twin Sided Swing Arm
Rear Travel (in/mm)
10.4 / 265
Rear Adjustable Rebound Damping
Yes
Number Rear Shock Absorbers
1
Rear Suspension Material
Aluminum
Air Adjustable
No

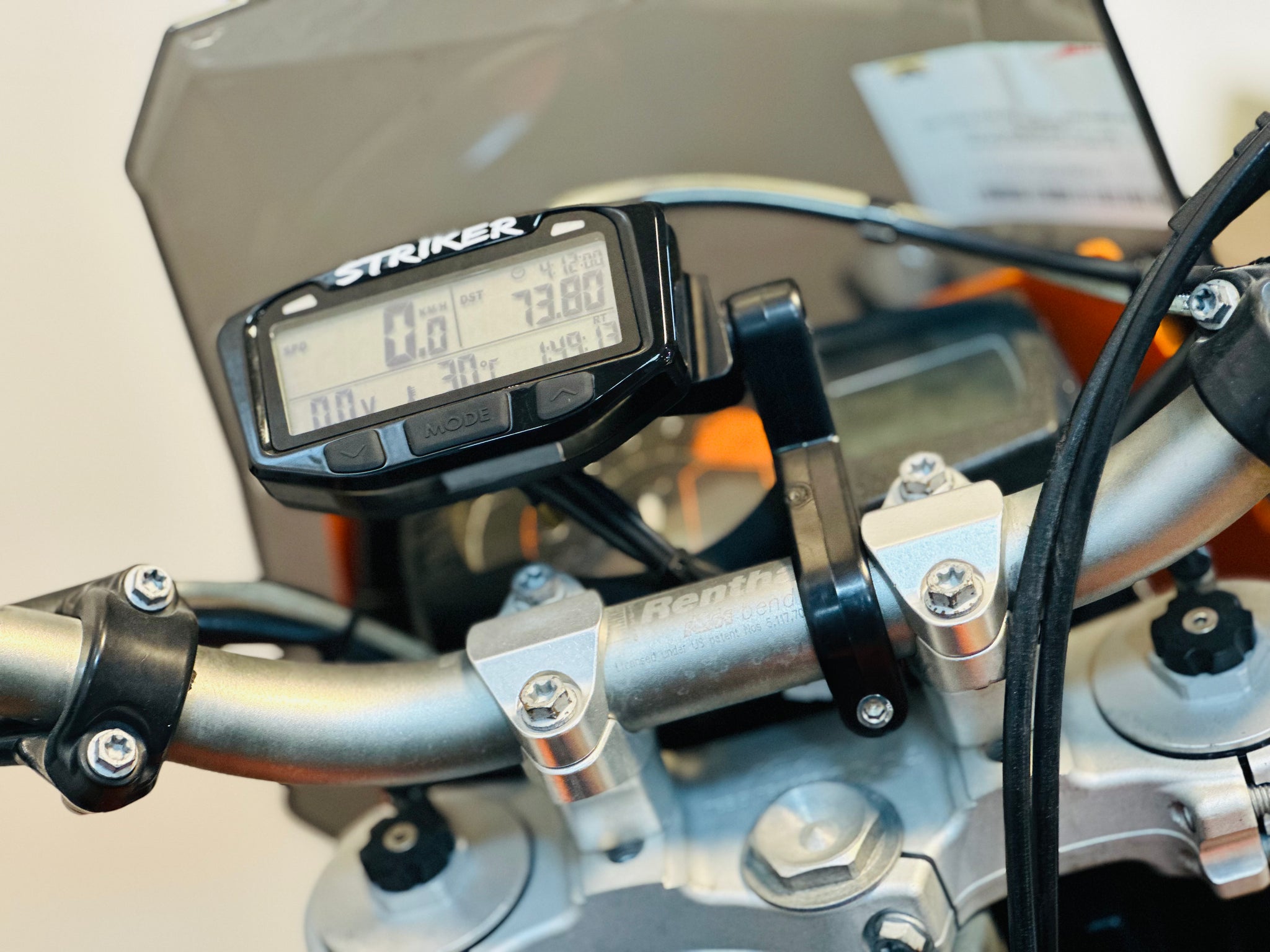

Steering
Steering Control
Handlebar
Technical Specifications
Wheelbase (in/mm)
58.3 / 1480
Ground Clearance (in/mm)
11.4 / 290
Dry Weight (lbs/kg)
304.4 / 139.5
Fuel Capacity (gal/l)
3.2 / 12
Fuel Capacity Reserve (gal/l)
0.7 / 2.5
Engine Displacement to Weight (cc)
2.14
