| Engine and transmission |
| Displacement |
850.0 ccm (51.87 cubic inches) |

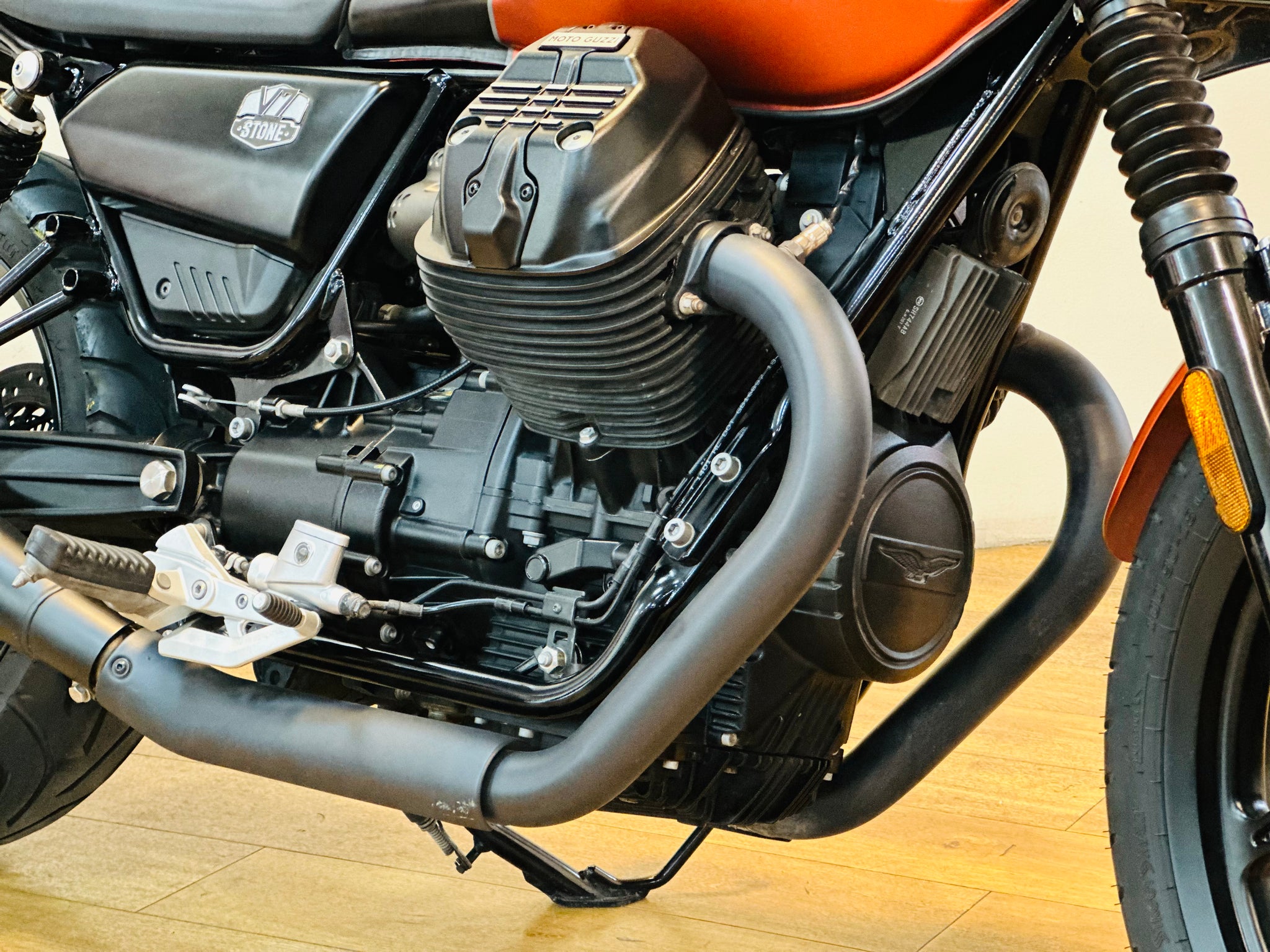

| Engine type |
V2, four-stroke |
| Engine details |
90° V-twin, titanium intake |
| Power |
65.0 HP (47.4 kW)) @ 6800 RPM
|
| Torque |
73.0 Nm (7.4 kgf-m or 53.8 ft.lbs) @ 5000 RPM
|
| Bore x stroke |
84.0 x 77.0 mm (3.3 x 3.0 inches) |
| Fuel system |
Injection |
| Cooling system |
Air |
| Gearbox |
6-speed |
| Transmission type |
Shaft drive (cardan) (final drive) |
| Clutch |
Dry single plate with flexible couplings |
| Emission details |
Euro 5 |
| Exhaust system |
Three-way catalytic converter with double lambda probe |
|
Chassis, suspension, brakes and wheels |
| Frame type |
Double cradle tubular frame in ALS steel with detachable rear subframe |
| Trail |
106 mm (4.2 inches) |
| Front suspension |
Hydraulic telescopic fork Ø 40 mm |
| Rear suspension |
Swingarm Twin-sided with two spring preload adjustable shock absorbers |

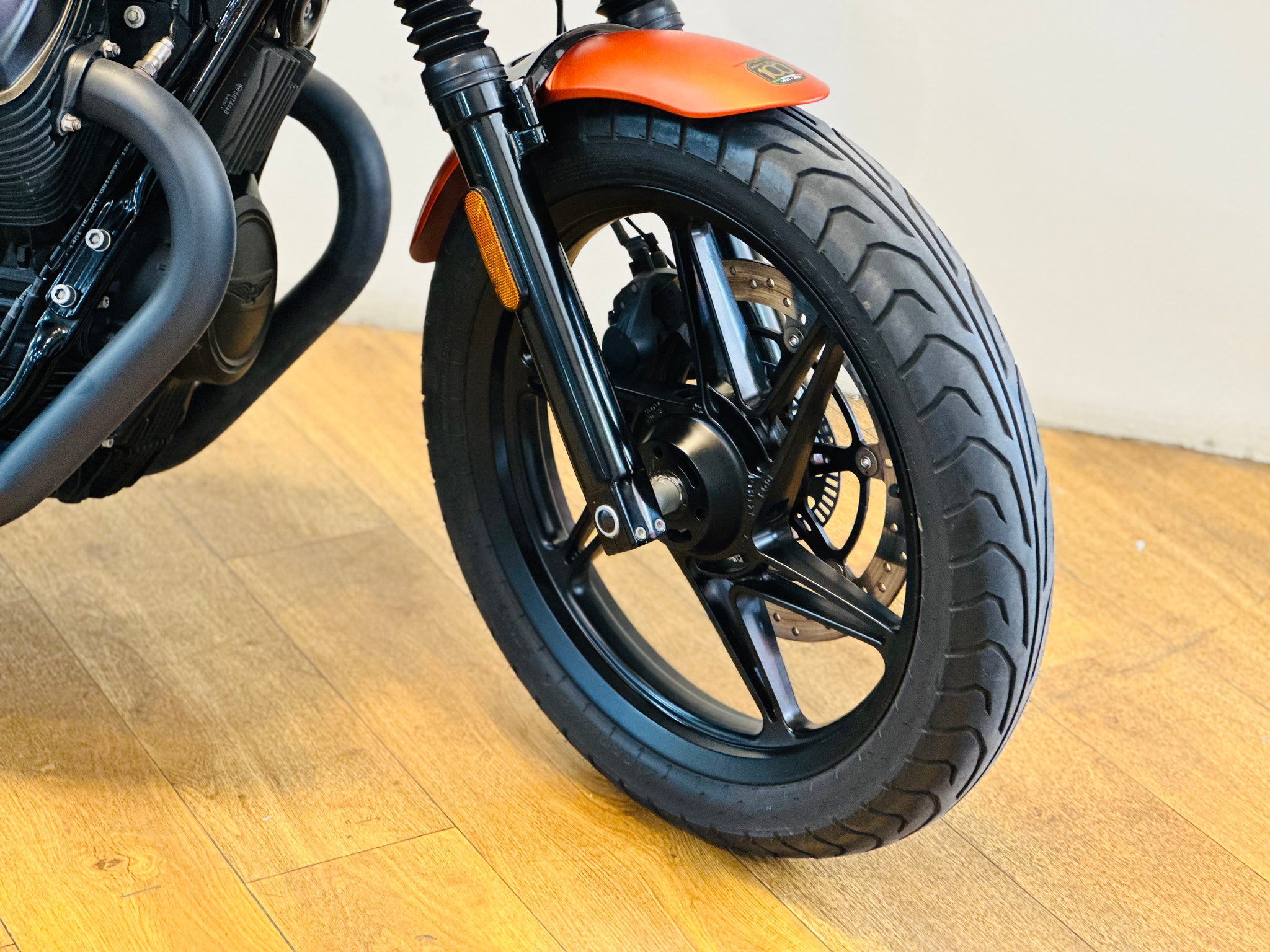

| Front tire |
100/90-18 |
| Rear tire |
150/70-17 |
| Front brakes |
Single disc. Brembo caliper with 4 differentiated pistons |
| Diameter |
320 mm (12.6 inches) |
| Rear brakes |
Single disc. Floating disc. Two-piston calipers. |
| Diameter |
260 mm (10.2 inches) |
| Wheels |
Lightweight alloy |

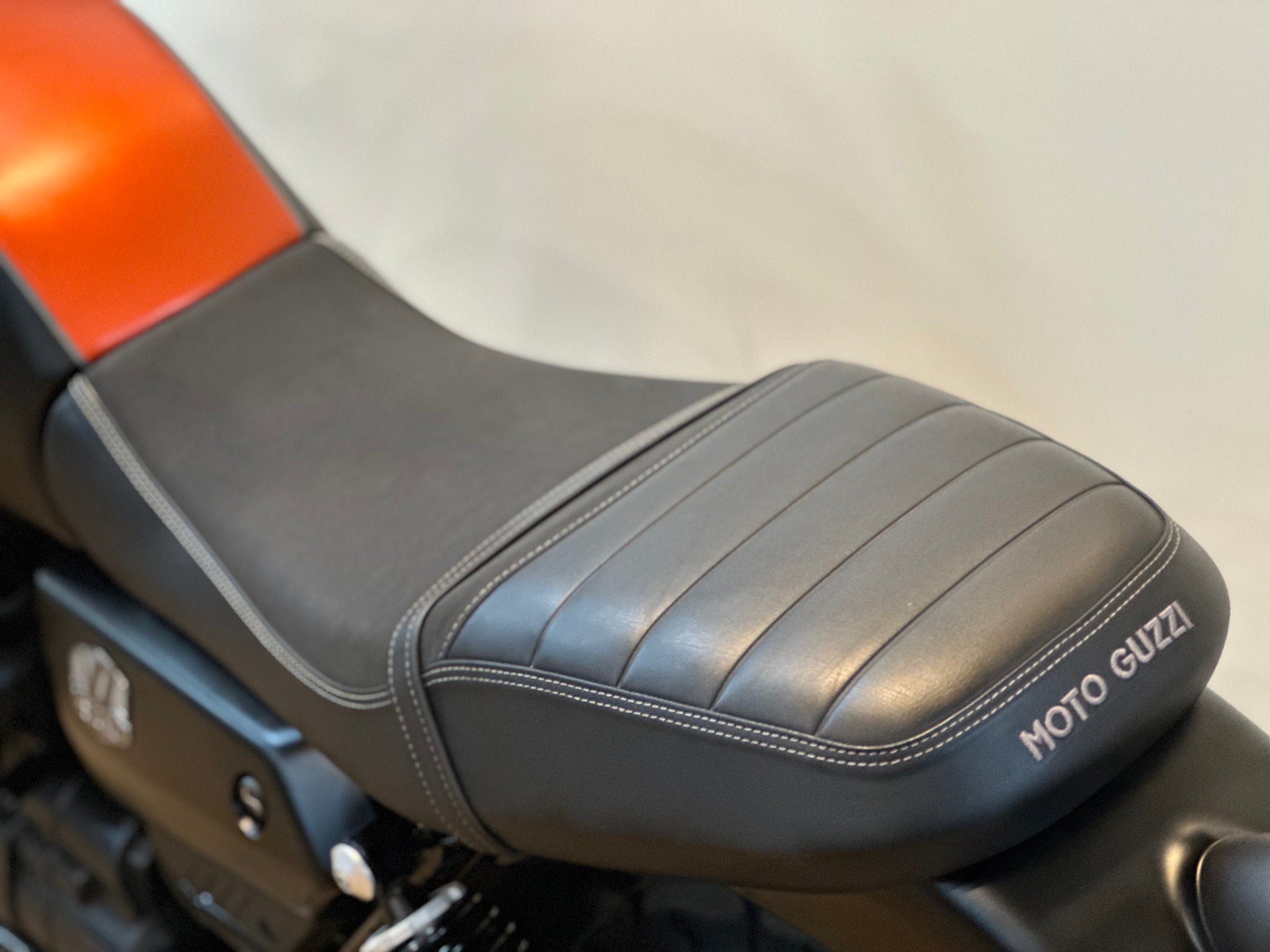

| Seat |
Two-tier saddle |
|
Physical measures and capacities |
| Dry weight |
198.0 kg (436.5 pounds) |
| Weight incl. oil, gas, etc |
218.0 kg (480.6 pounds) |
| Power/weight ratio |
0.3283 HP/kg |
| Seat height |
770 mm (30.3 inches) If adjustable, lowest setting. |
| Alternate seat height |
803 mm (31.6 inches) If adjustable, highest setting. |
| Overall height |
1110 mm (43.7 inches) |
| Overall length |
2185 mm (86.0 inches) |
| Overall width |
800 mm (31.5 inches) |
| Ground clearance |
150 mm (5.9 inches) |
| Wheelbase |
1463 mm (57.6 inches) |
| Fuel capacity |
21.00 litres (5.55 US gallons) |
| Reserve fuel capacity |
3.79 litres (1.00 US gallons) |
|
Other specifications |
| Color options |
Nero Ruvido black, Azzurro Ghiaccio blue, Arancione Rame orange |
| Starter |
Electric |

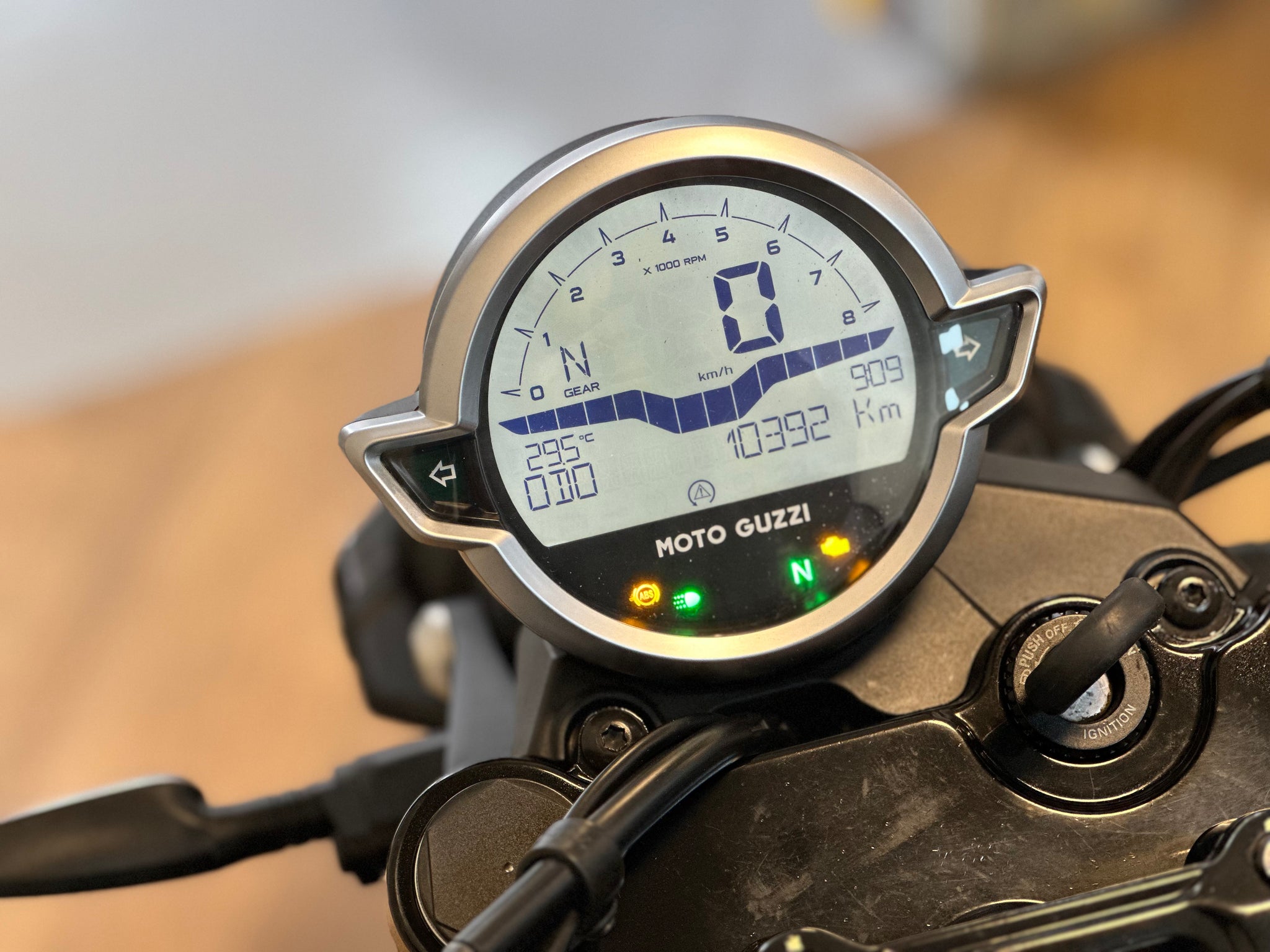

| Instruments |
LCD panel |

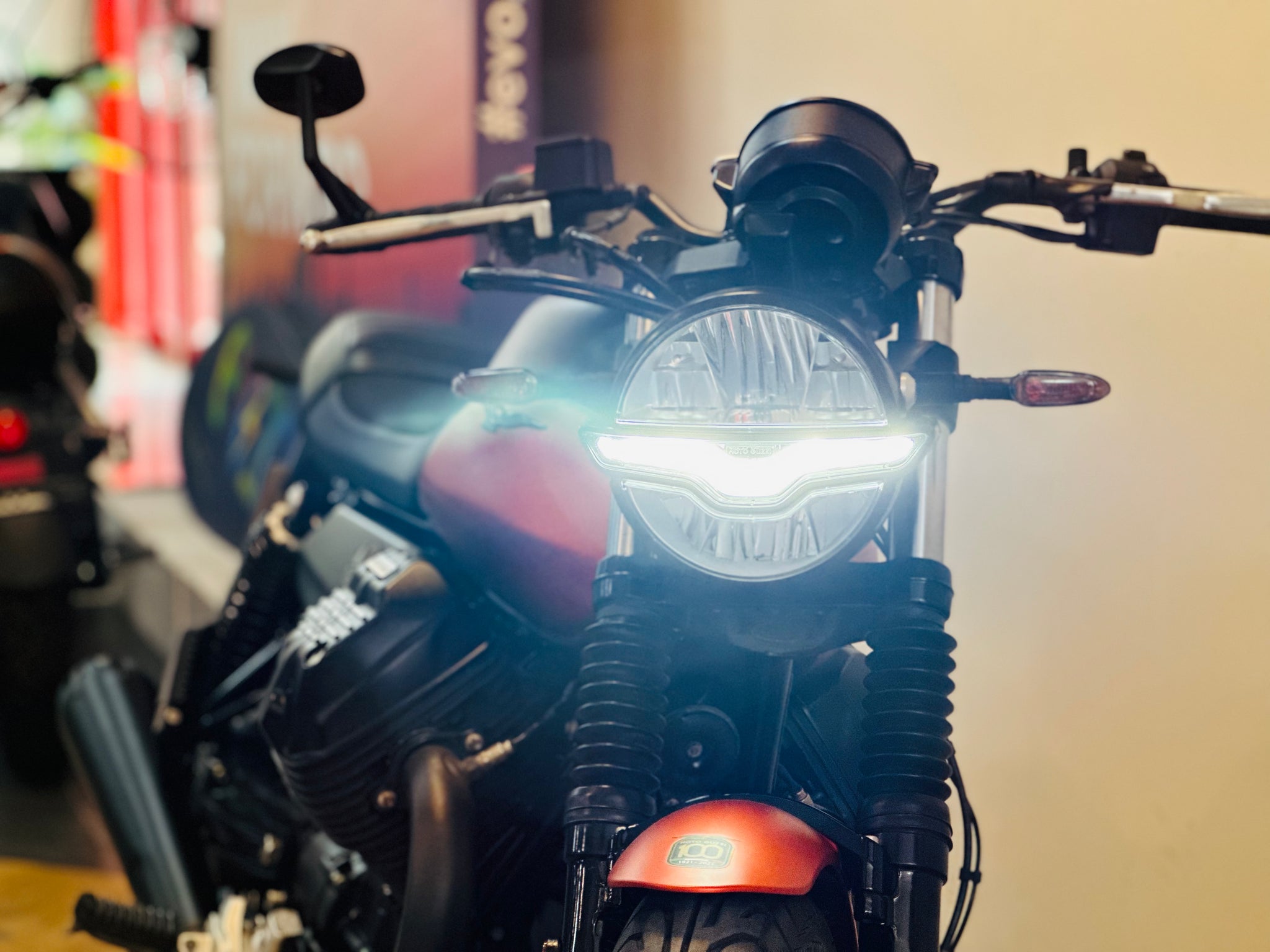

| Light |
LED headlight |
