| ENGINE SPECS |
| Type: |
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement: |
1340 cm3 |
| Bore X Stroke: |
3.2x2.6 in OR 81 mm |
| Compression Ratio: |
12.5:1 |
| Horsepower: |
195/9800 KW(hp)/RPM |
| Torque: |
114/10200 lb-ft/RPM OR 155/10200 Nm/RPM |
| Fuel System: |
Suzuki Fuel Injection fuel injection |
| TRANSMISSION SPECS |
| Gearbox: |
6-Speed |
| Clutch: |
Wet multi-discs |
| Primary Drive: |
- |
| Final Drive: |
Chain |
| CHASSIS SPECS |
| Frame: |
Twin-spar (Aluminum Alloy) |
| Front Suspension: |
Inverted telescopic coil springs, spring preload, rebound and compression damping fully adjustable. |
| Rear Suspension: |
Link type, oil damped, coil springs, spring preload, rebound and compression damping fully adjustable. |

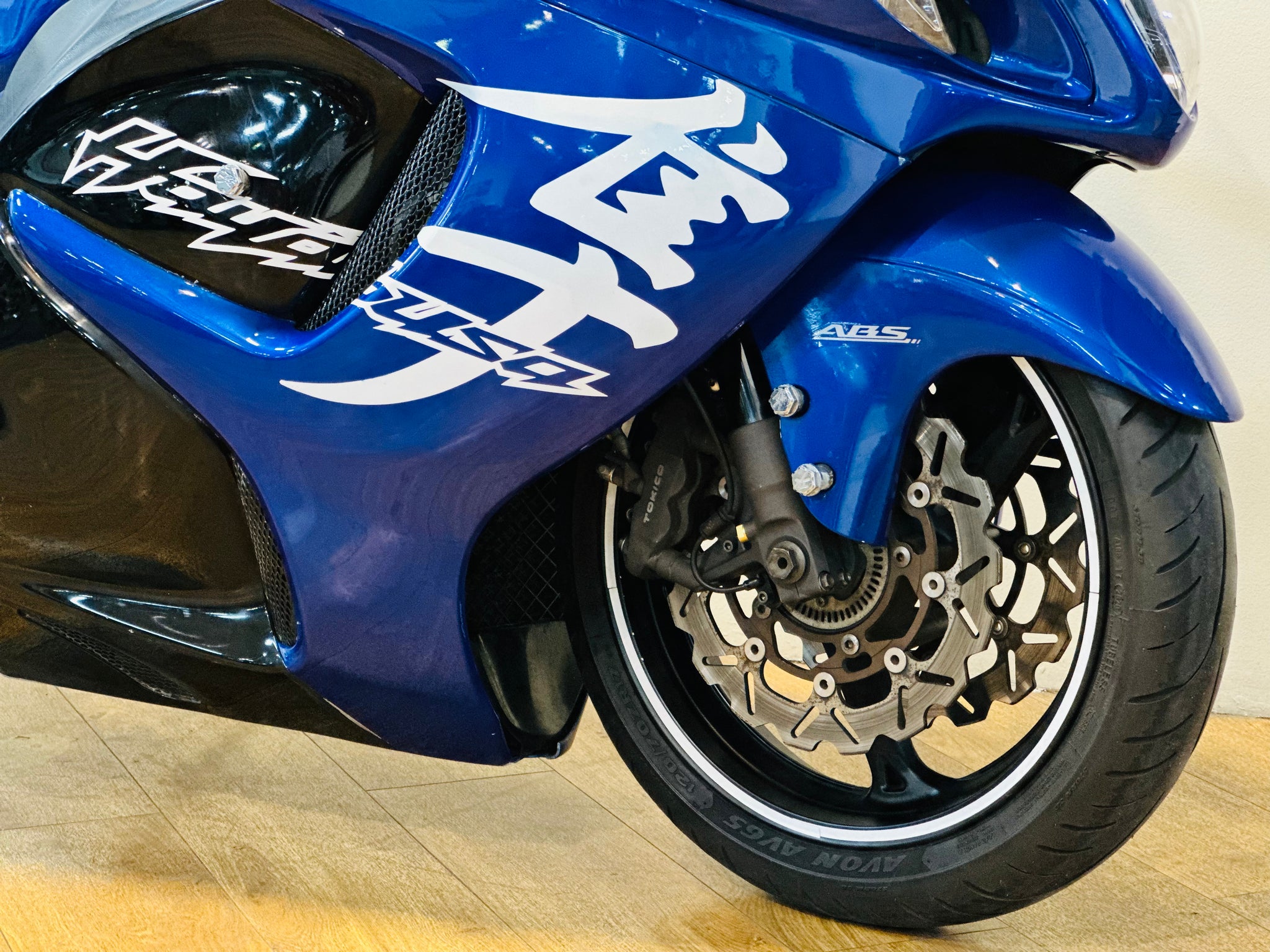

| Front Brake: |
Double discs 310 mm |

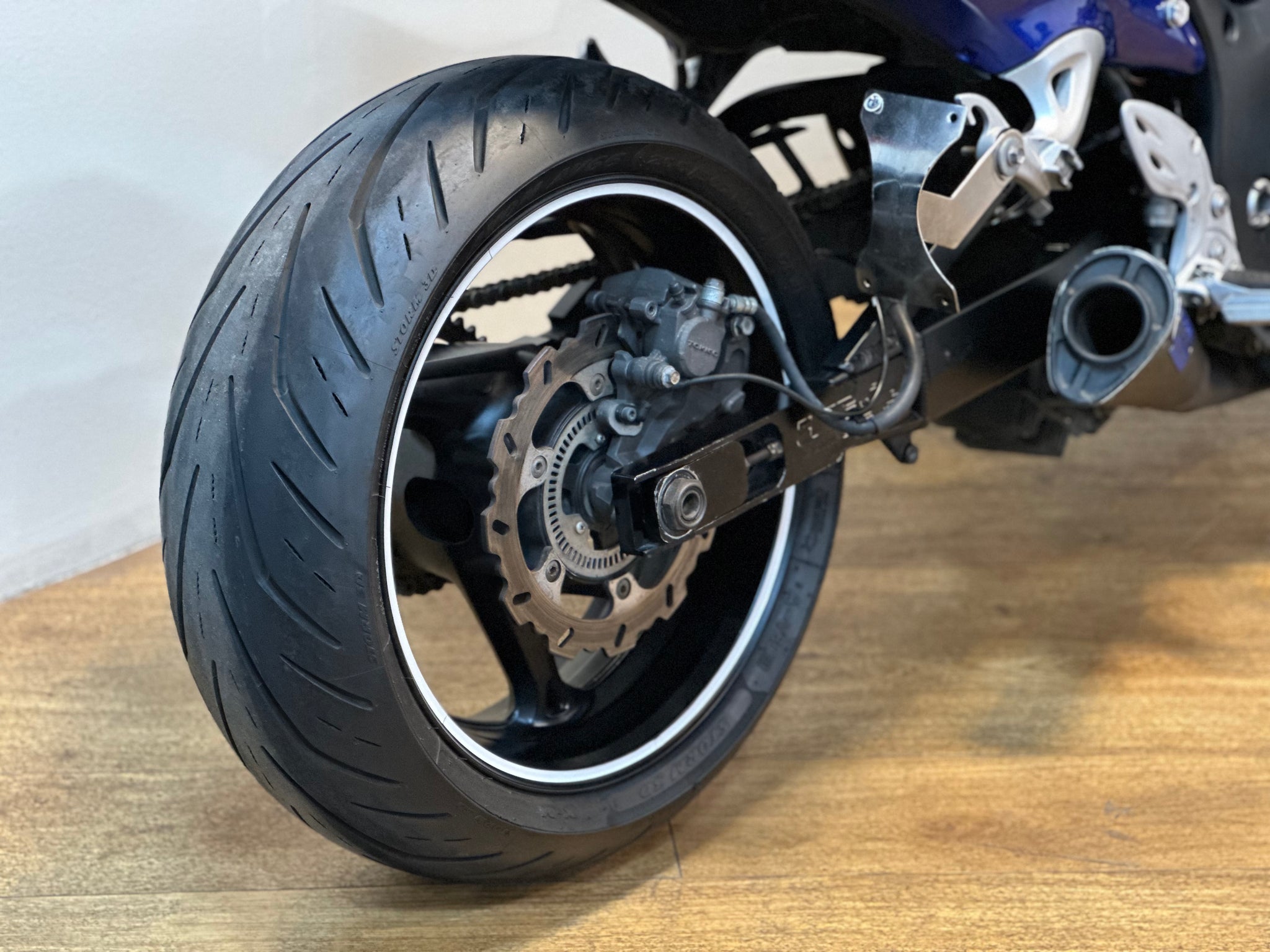

| Rear Brake: |
Single disc 260 mm |
| DIMENSION SPECS |
| Overall Length: |
86.2 in OR 2189 mm |
| Overall Width: |
28.9 in OR 734 mm |
| Seat Height: |
31.7 in OR 805 mm |
| Weelbase: |
58.3 in OR 1481 mm |
| Ground Clearance: |
4.7 in OR 119 mm |
| Weight: |
586 lbs OR 266 kg |
| Fuel Capacity: |
5.5 gallons OR 20.8 L |
| TYRES SPECS |
| Front: |
120/70 ZR17 |
| Rear: |
190/50 ZR17 |
