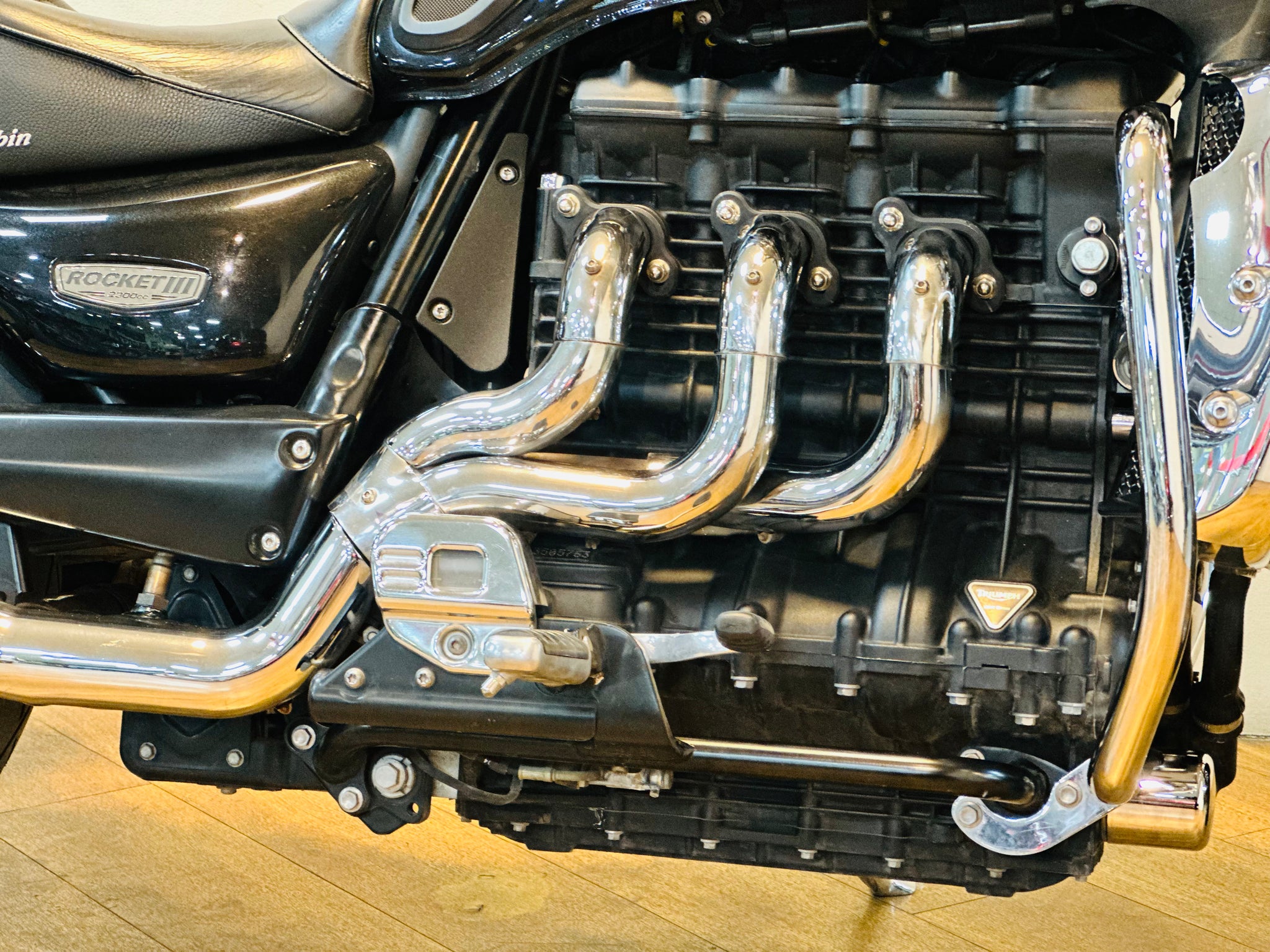

| ENGINE SPECS |
| Type: |
liquid-cooled, DOHC, in-line 3-cylinder |
| Displacement: |
2,294 cm3 |
| Bore X Stroke: |
4x3.71 in OR 102 mm |
| Compression Ratio: |
- |
| Horsepower: |
148/5750 KW(hp)/RPM |
| Torque: |
163/2,750 lb-ft/RPM OR 221/2,750 Nm/RPM |
| Fuel System: |
multipoint sequential electronic fuel injection with twin butterflies and progressive linkage on primary butterflies |
| TRANSMISSION SPECS |
| Gearbox: |
5-speed |
| Clutch: |
wet, multiplate |
| Primary Drive: |
- |
| Final Drive: |
shaft |
| CHASSIS SPECS |
| Frame: |
tubular steel, twin spine |
| Front Suspension: |
ayaba 43mm upside down forks, 120mm travel |
| Rear Suspension: |
Kayaba black spring twin shocks |

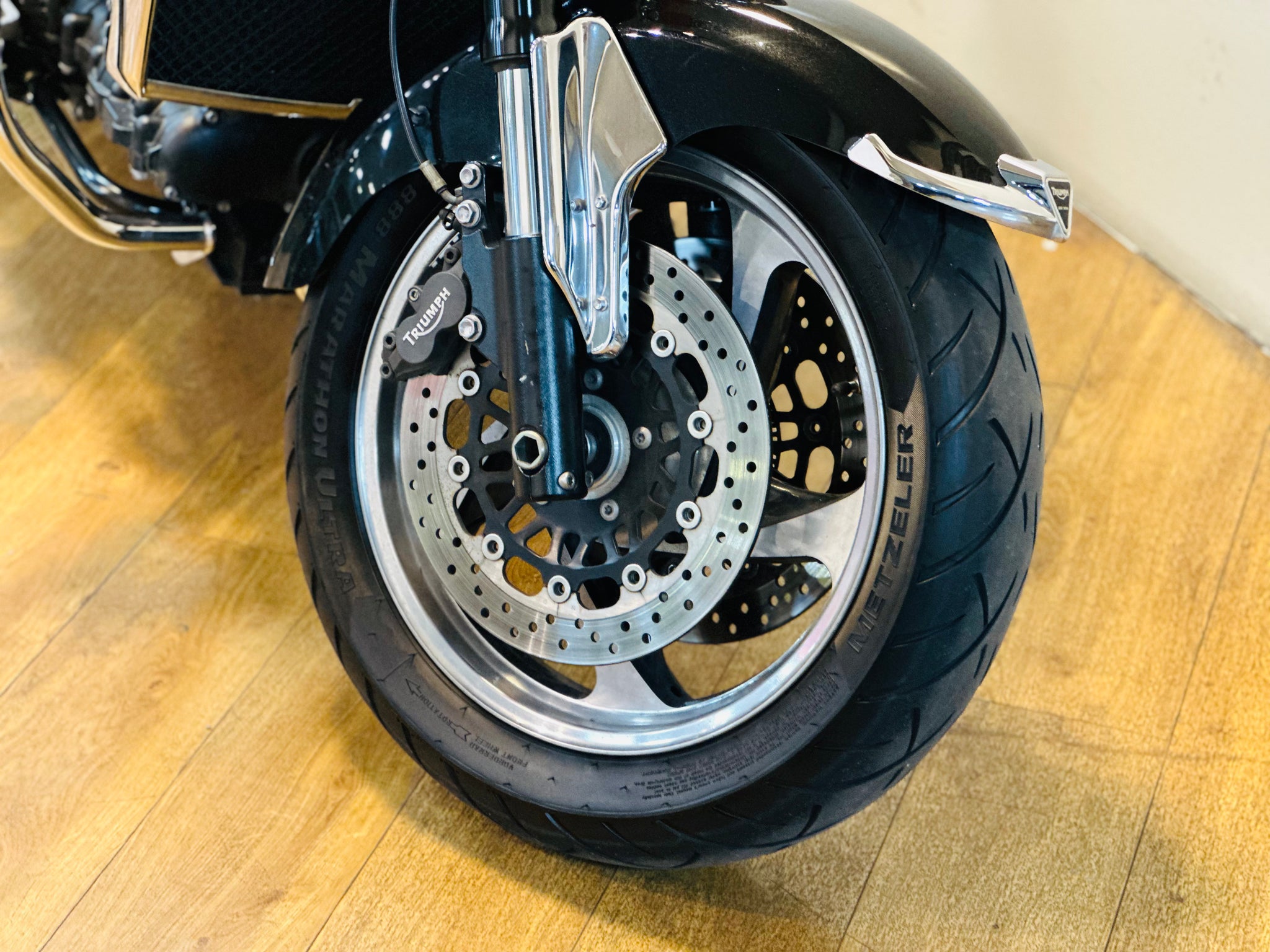

| Front Brake: |
twin 320mm floating discs |
| Rear Brake: |
single 361mm disc |
| DIMENSION SPECS |
| Overall Length: |
98.3 in OR 2497 mm |
| Overall Width: |
38.2 in OR 970 mm |
| Seat Height: |
29.5 in OR 749 mm |
| Weelbase: |
66.7 in OR 1694 mm |
| Ground Clearance: |
- |
| Weight: |
807 lbs OR 366 kg |

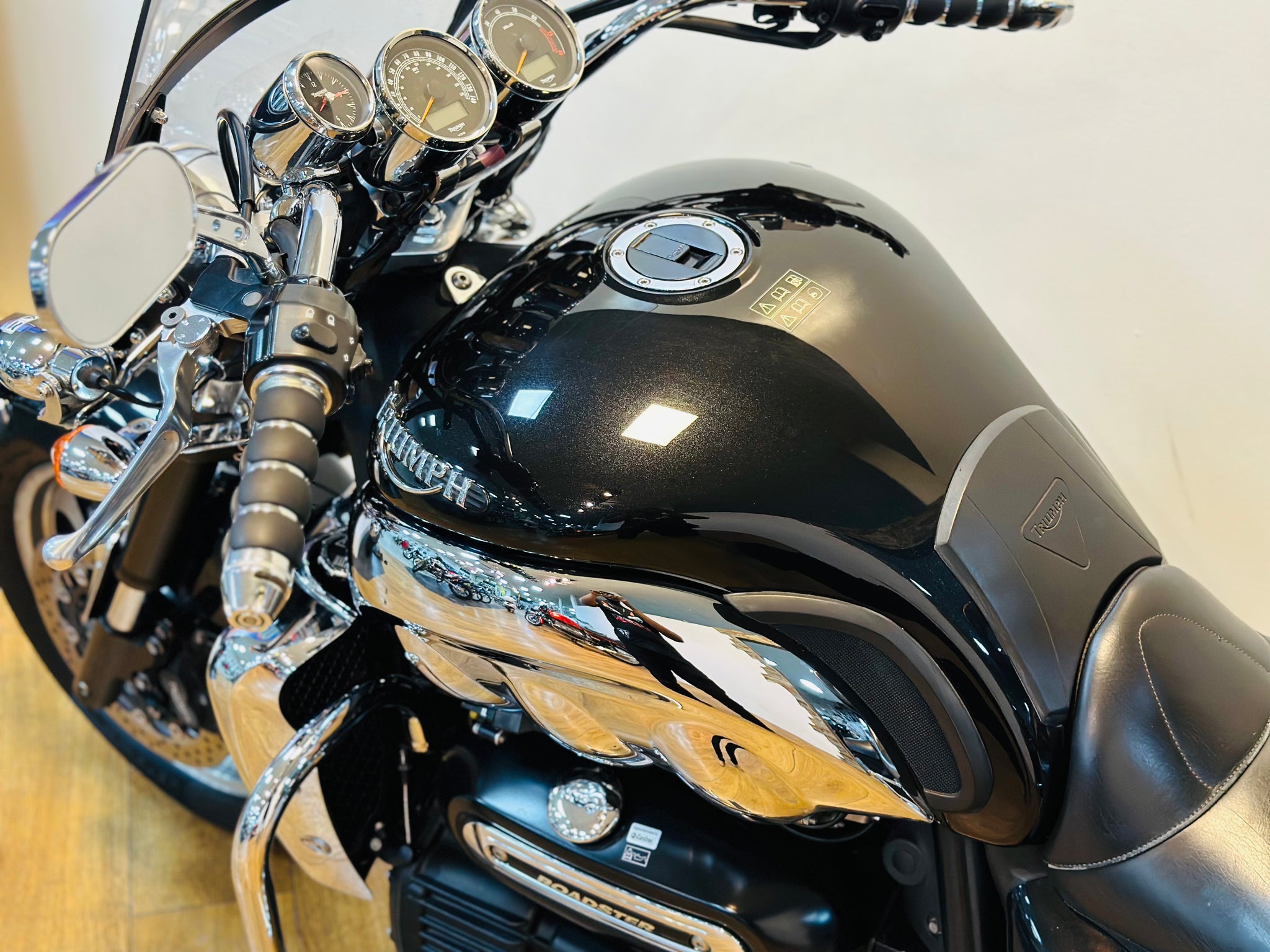

| Fuel Capacity: |
6.3 gallons OR 23.8 L |
| TYRES SPECS |
| Front: |
150/80 R17 |
| Rear: |
240/50 R16 |
