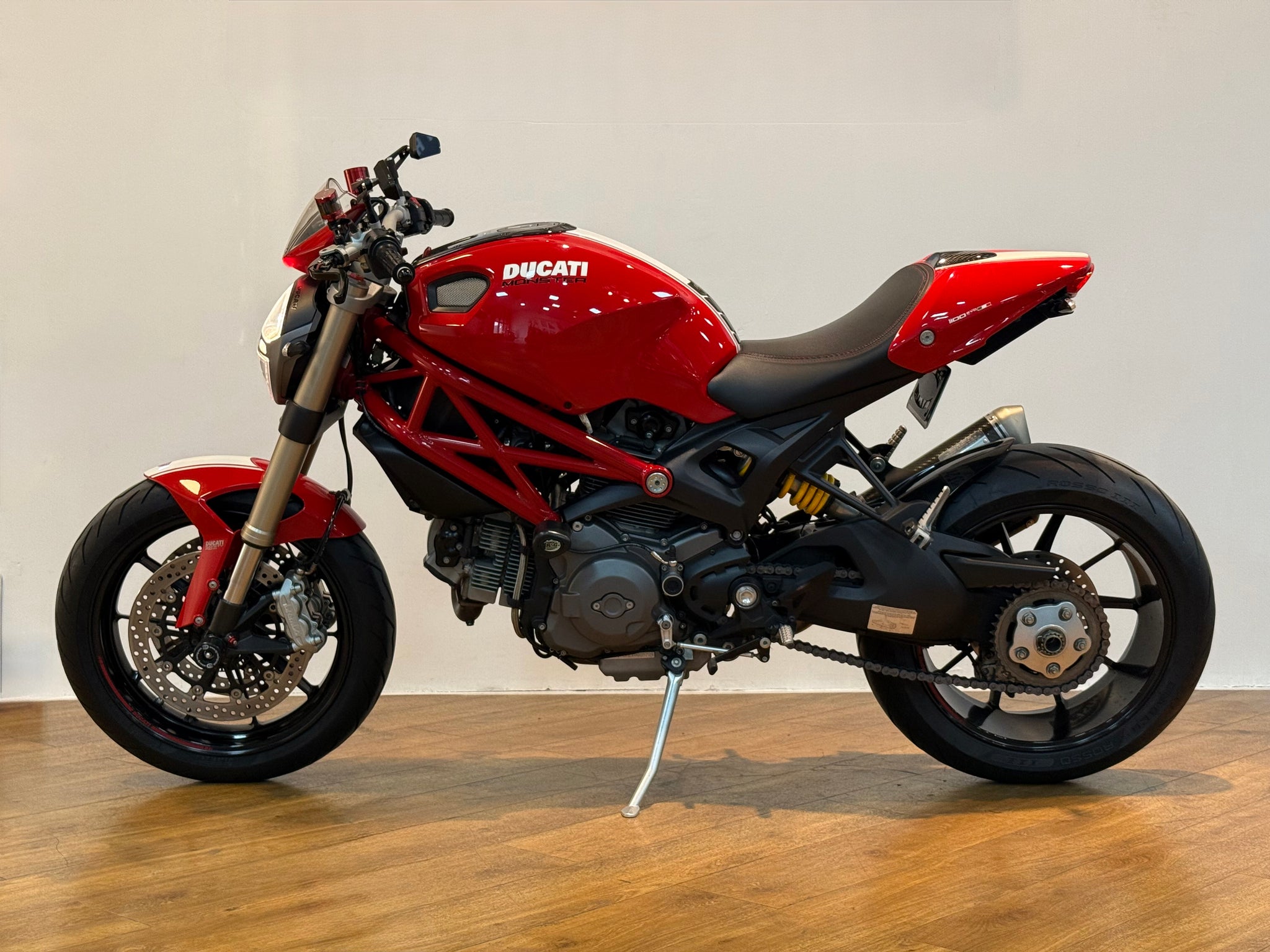

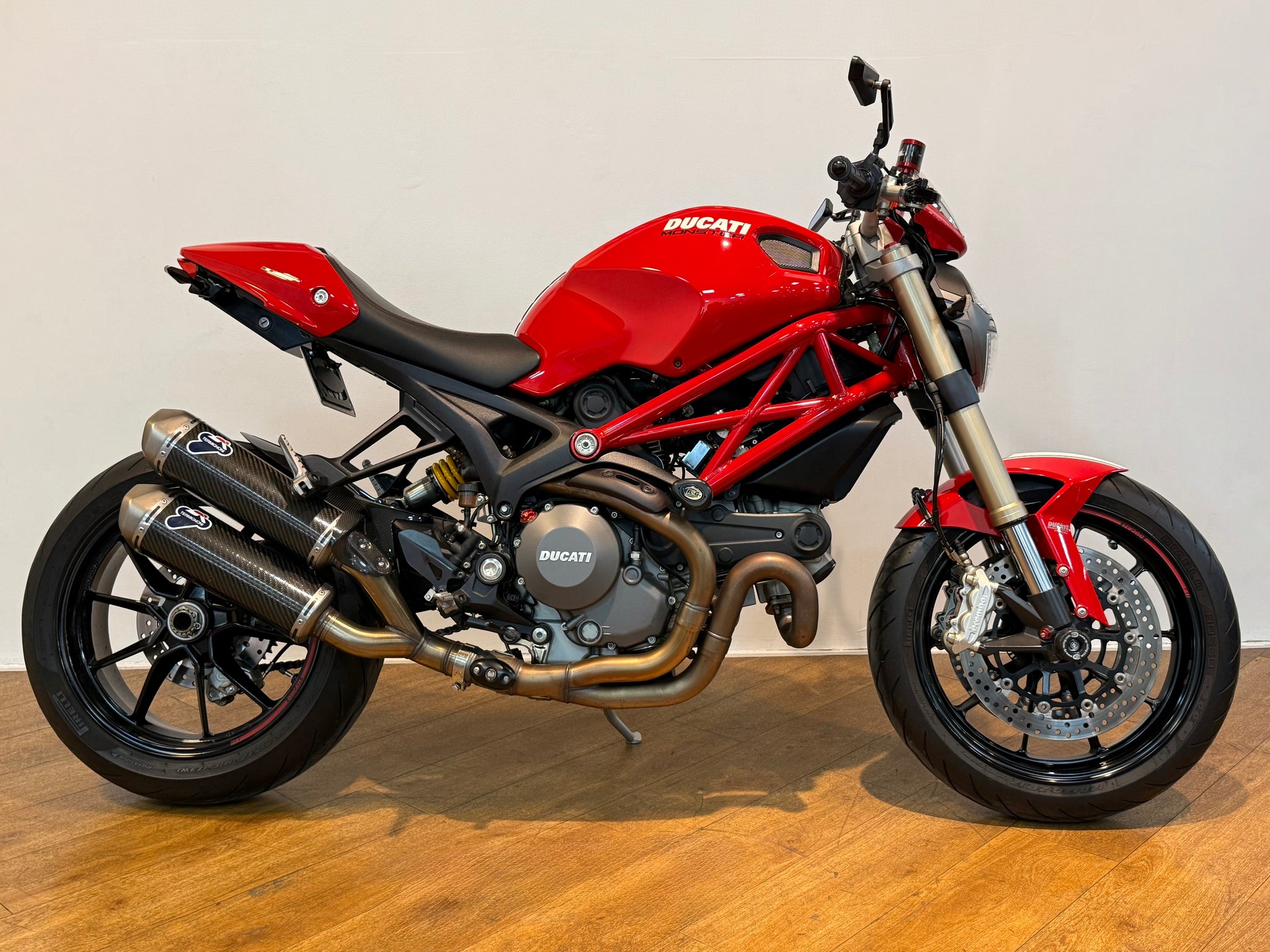

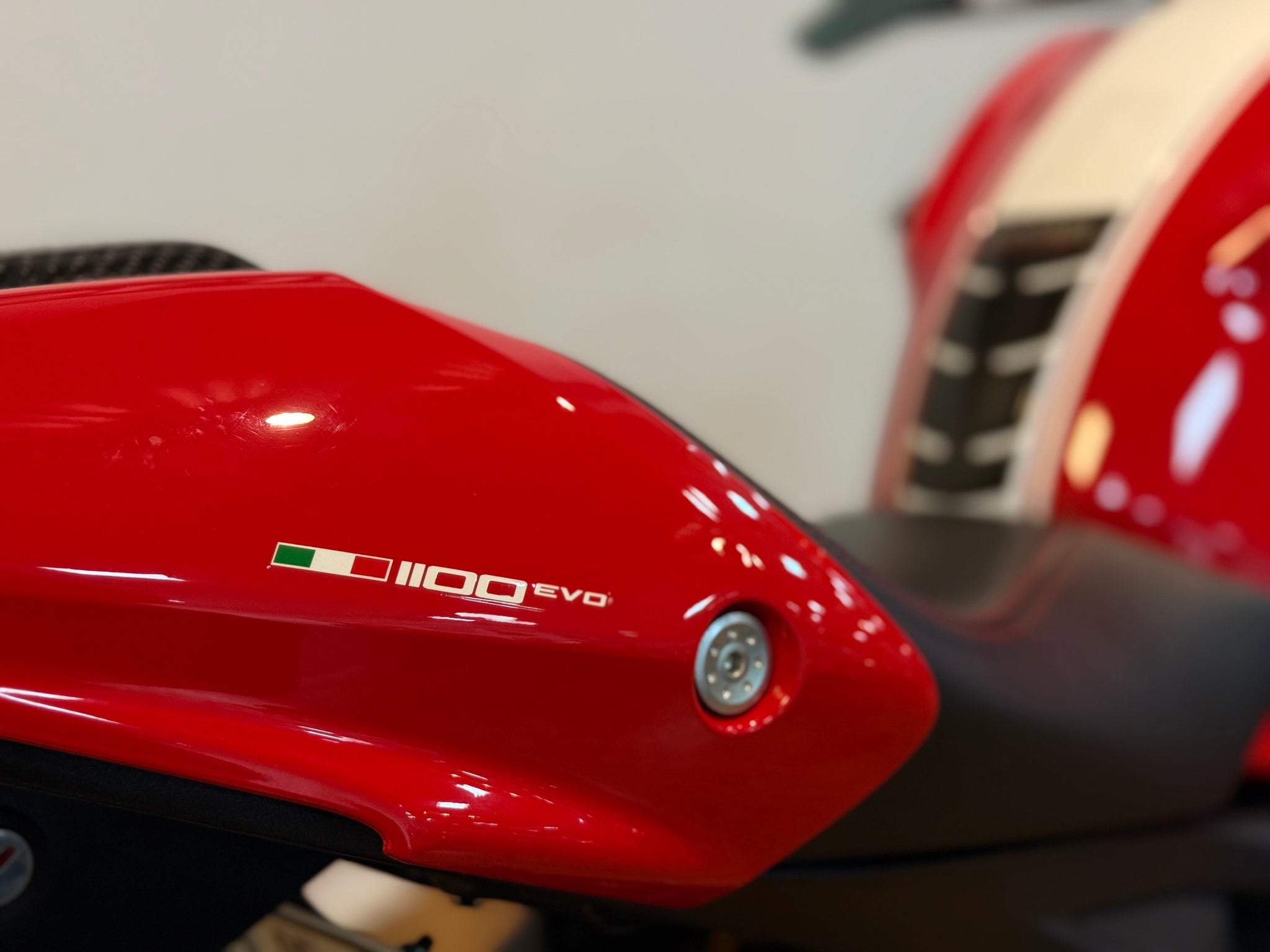

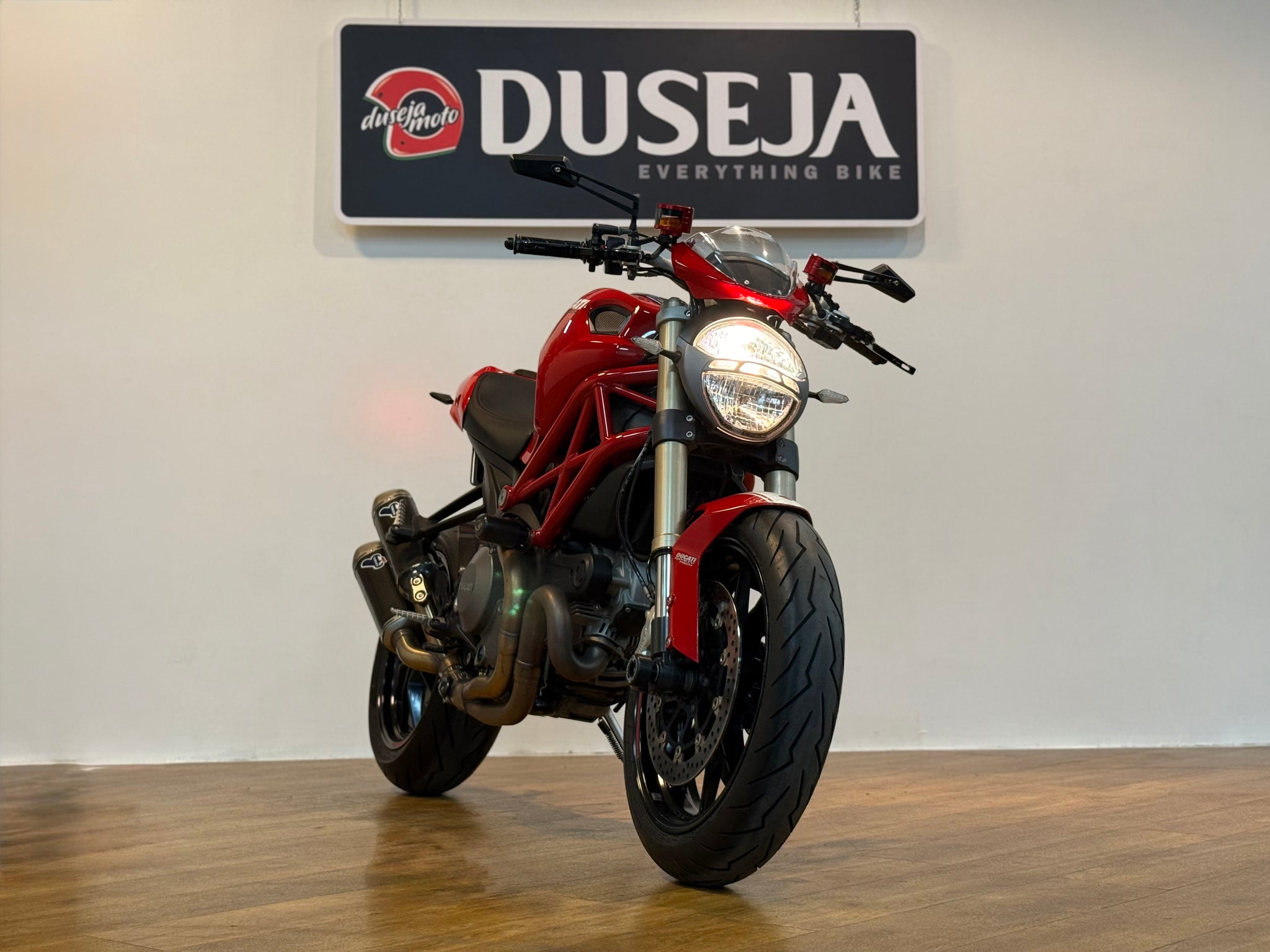

Ducati Monster 1100 EVO

Ducati Monster 1100 EVO

Model Year: 2013
Color Options: Red

Engine

• Type: 1078 cc, air-cooled, 90° L-twin, Desmodromic SOHC, 2 valves per cylinder

• Bore x Stroke: 98 mm x 71.5 mm

• Compression Ratio: 11.3:1

• Fuel System: Siemens electronic fuel injection with 45 mm throttle bodies

• Power: 100 hp (73.5 kW) @ 7,500 rpm

• Torque: 103 Nm (76 lb-ft) @ 6,000 rpm

• Exhaust: Upgraded to Termignoni carbon fiber race exhaust system, enhancing performance and producing a deeper exhaust note

Transmission

• Type: 6-speed manual

• Clutch: Wet multi-plate with slipper function

• Final Drive: Chain

Chassis & Suspension

• Frame: Tubular steel trellis frame

• Front Suspension: 43 mm Marzocchi fully adjustable USD fork

• Rear Suspension: Sachs monoshock, adjustable for preload and rebound damping

• Swingarm: Single-sided aluminum

Brakes

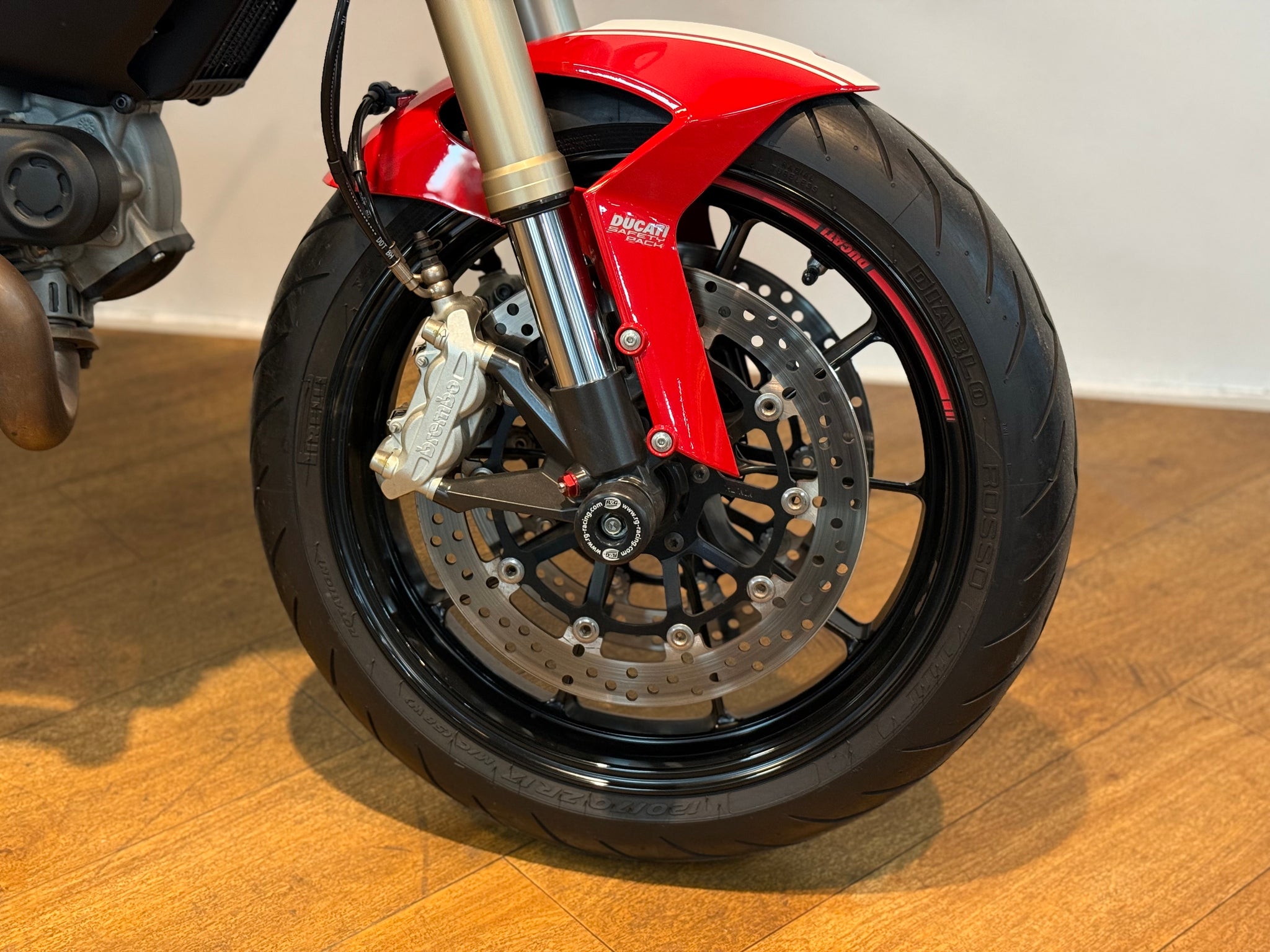

• Front Brakes: Dual 320 mm semi-floating discs with Brembo 4-piston radial calipers

• Rear Brake: Single 245 mm disc with 2-piston caliper

• ABS: Standard Bosch-Brembo system

Wheels & Tires

• Front Wheel: 3.50 x 17-inch, 10-spoke light alloy

• Rear Wheel: 5.50 x 17-inch, 10-spoke light alloy

• Front Tire: 120/70 ZR17

• Rear Tire: 180/55 ZR17

Dimensions

• Wheelbase: 1,450 mm (57.1 in)

• Seat Height: 810 mm (31.9 in)

• Dry Weight: 169 kg (373 lbs)

• Wet Weight: 188 kg (414 lbs)

• Fuel Tank Capacity: 13.5 liters (3.6 US gal)

Electronics

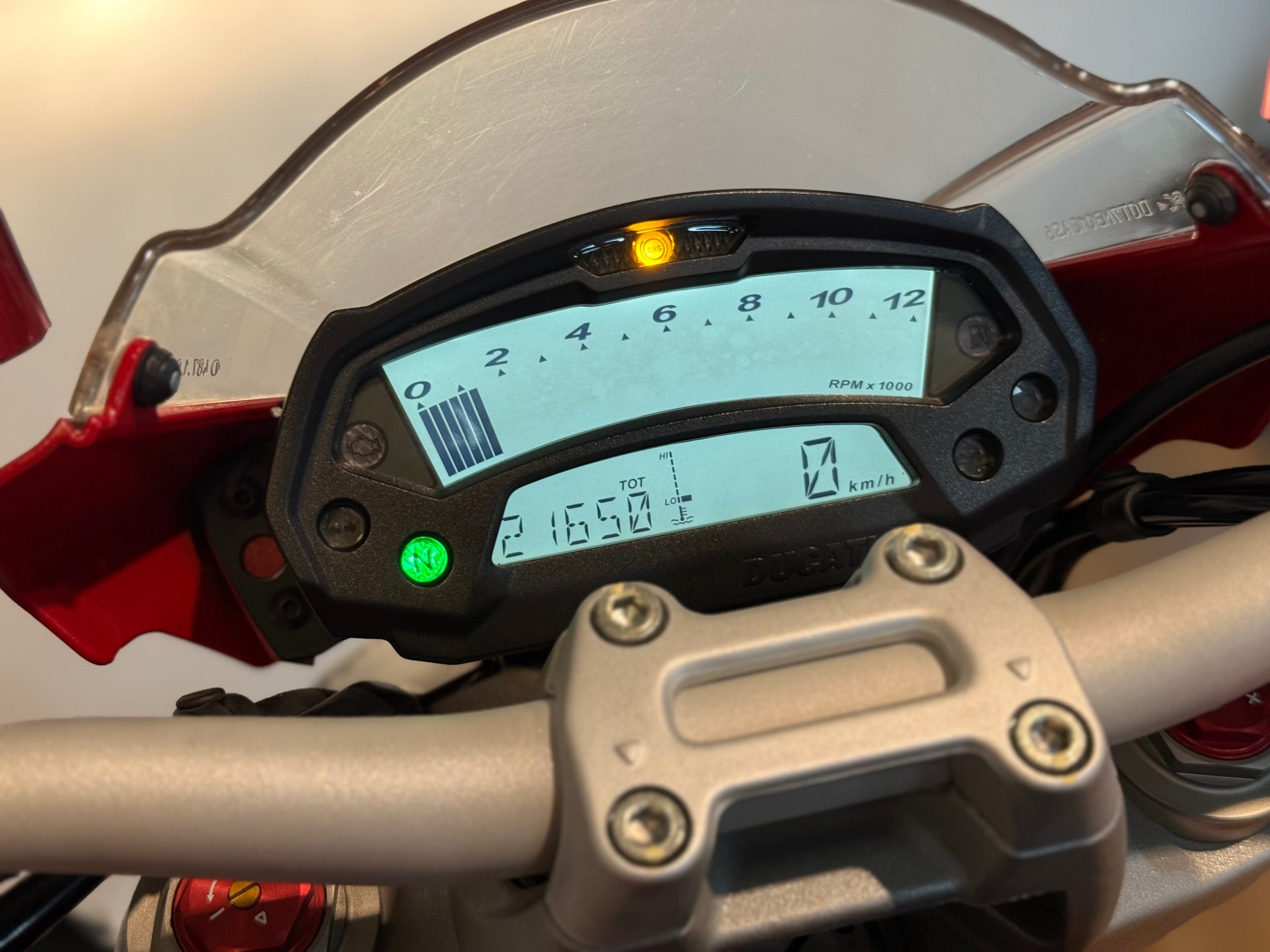

• Instrumentation: Digital display with speedometer, tachometer, trip meter, fuel gauge, and warning lights

• Riding Modes: Not applicable

• Traction Control: Ducati Traction Control (DTC) with 4-level adjustability

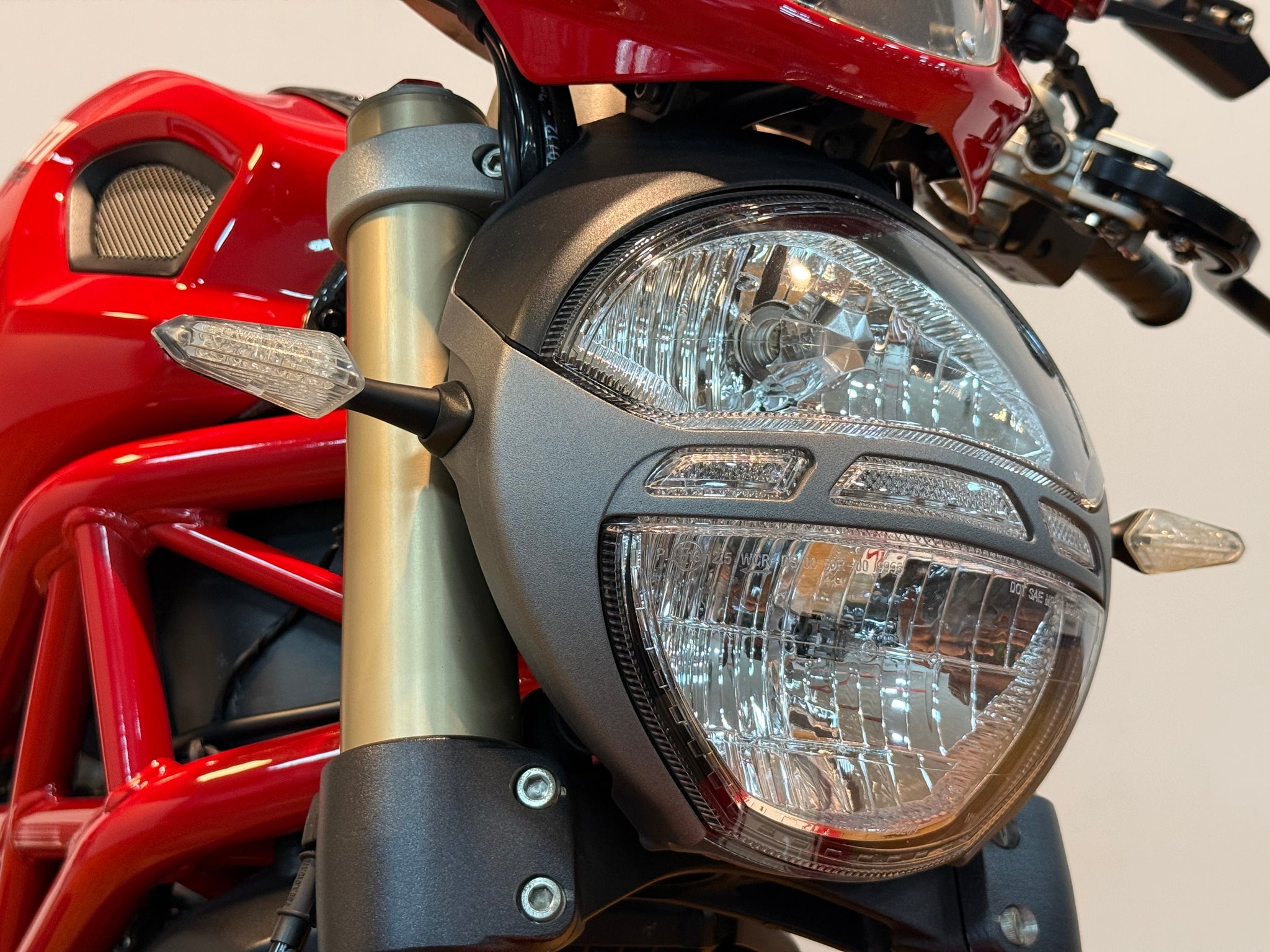

• Lighting: Halogen headlight, LED tail light, and turn signals

Aftermarket Accessories

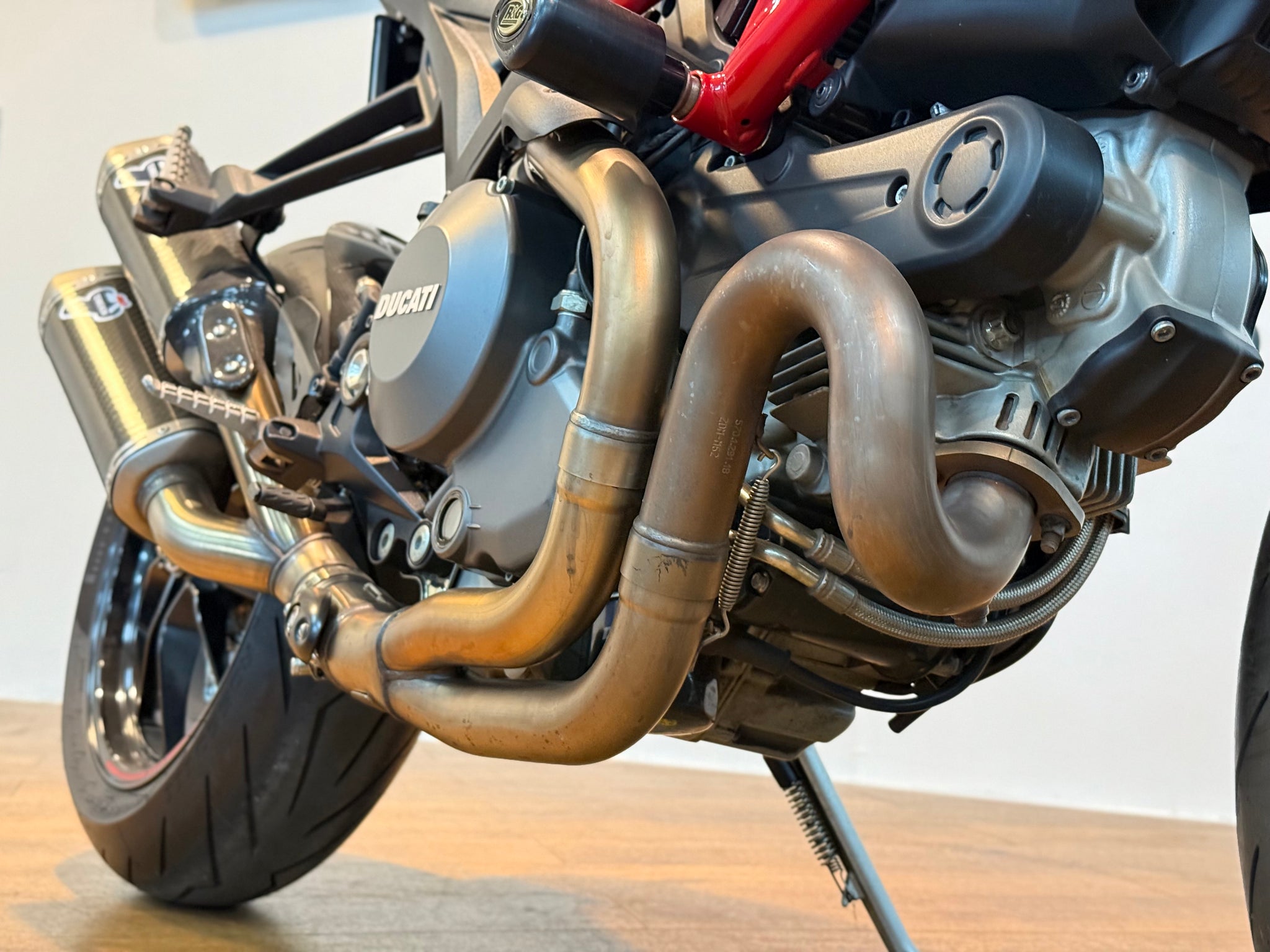

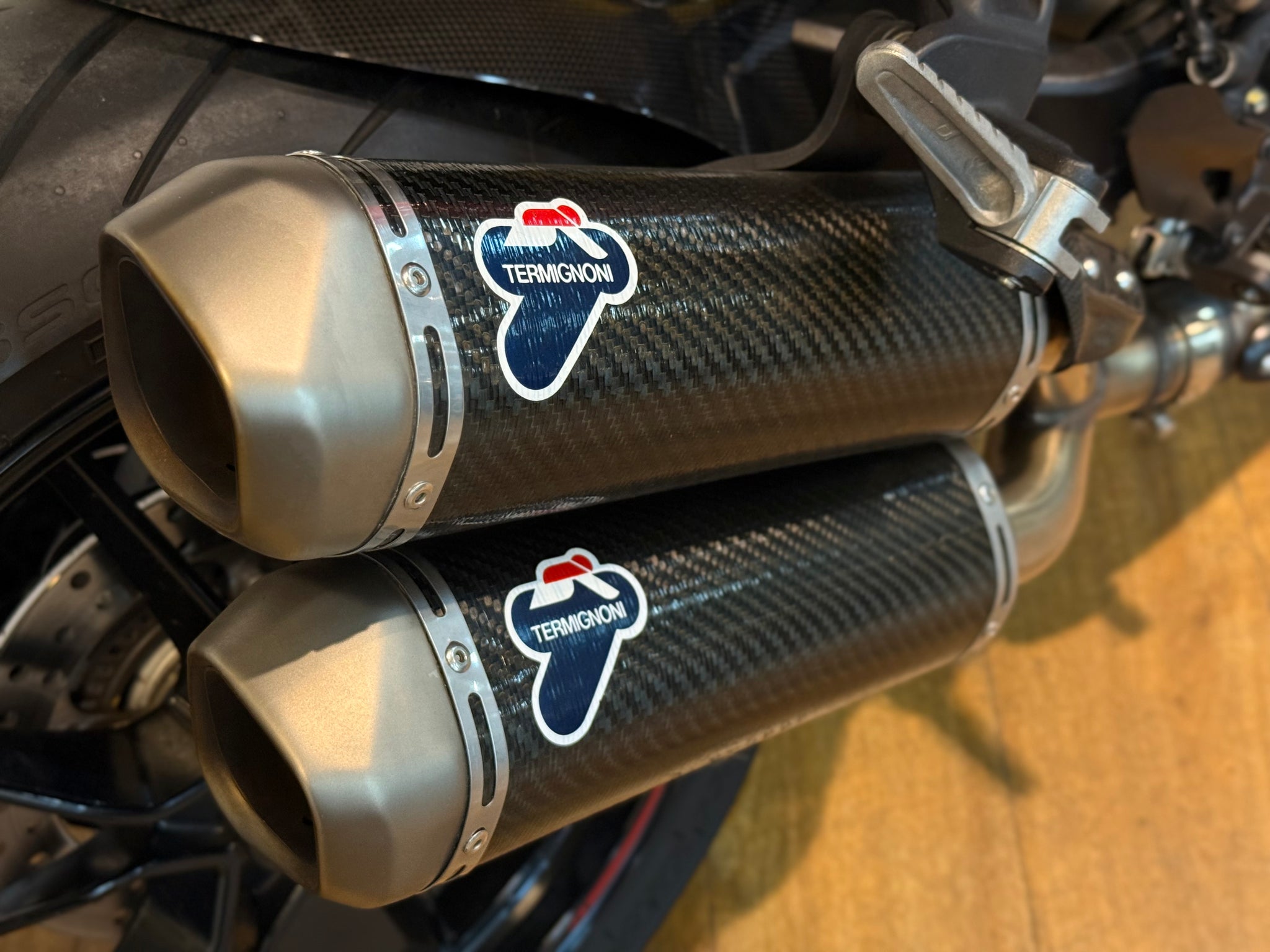

Termignoni Carbon Fibre Race Exhaust System

• Constructed from carbon fiber and stainless steel

• Enhances performance and produces a deeper exhaust note

• Includes necessary hardware and heat shield

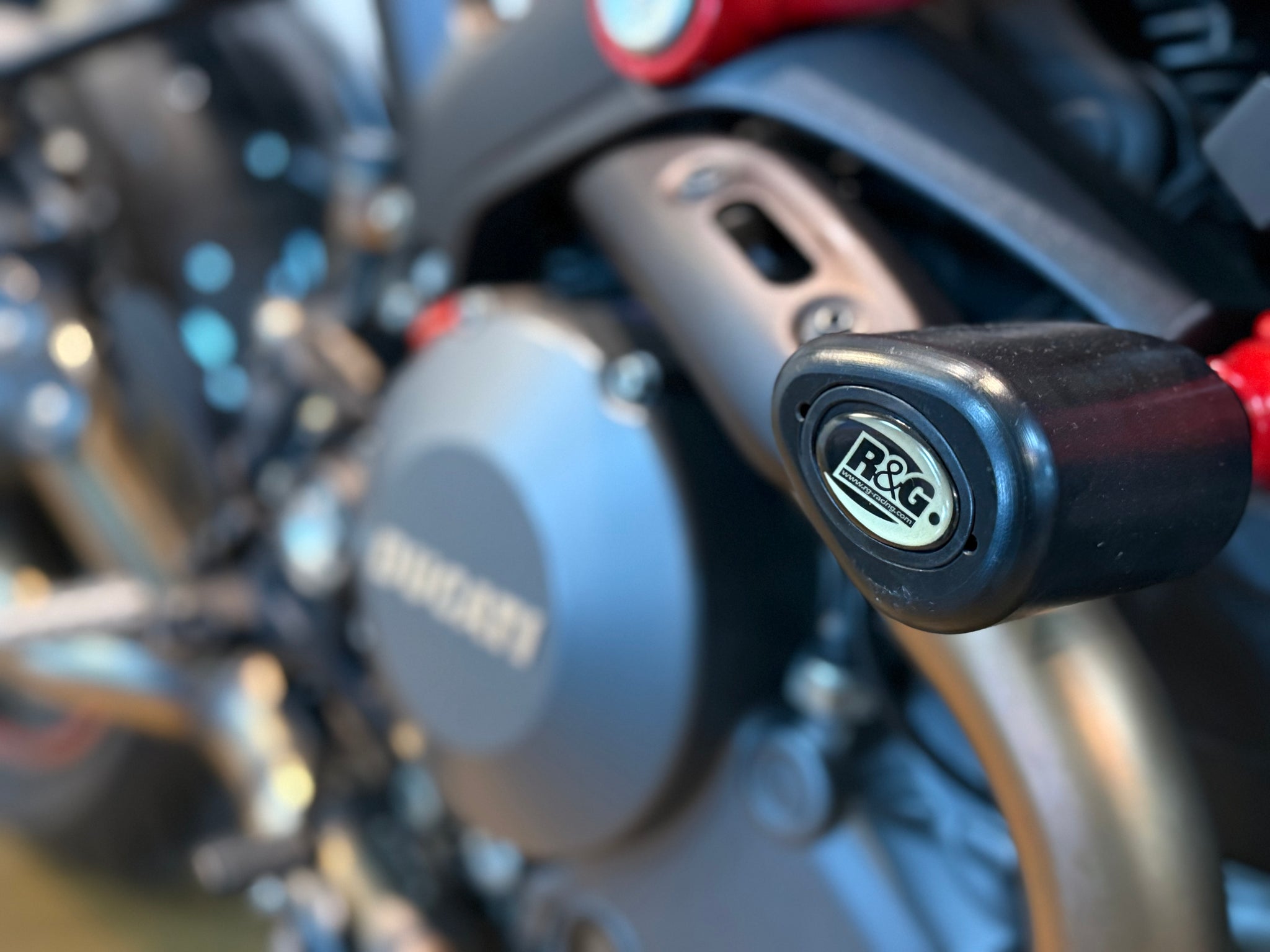

R&G Racing Aero Frame Sliders

• Designed to protect the frame and engine in the event of a fall

• Constructed from high-density nylon with machined steel and aluminum components

• Model-specific fitment for the Monster 1100 EVO

Rizoma Front and Clutch Fluid Reservoirs

• Made from billet aluminum with anodized finish

• Available in various colors to match bike aesthetics

• Compact design with clear viewing window for fluid level

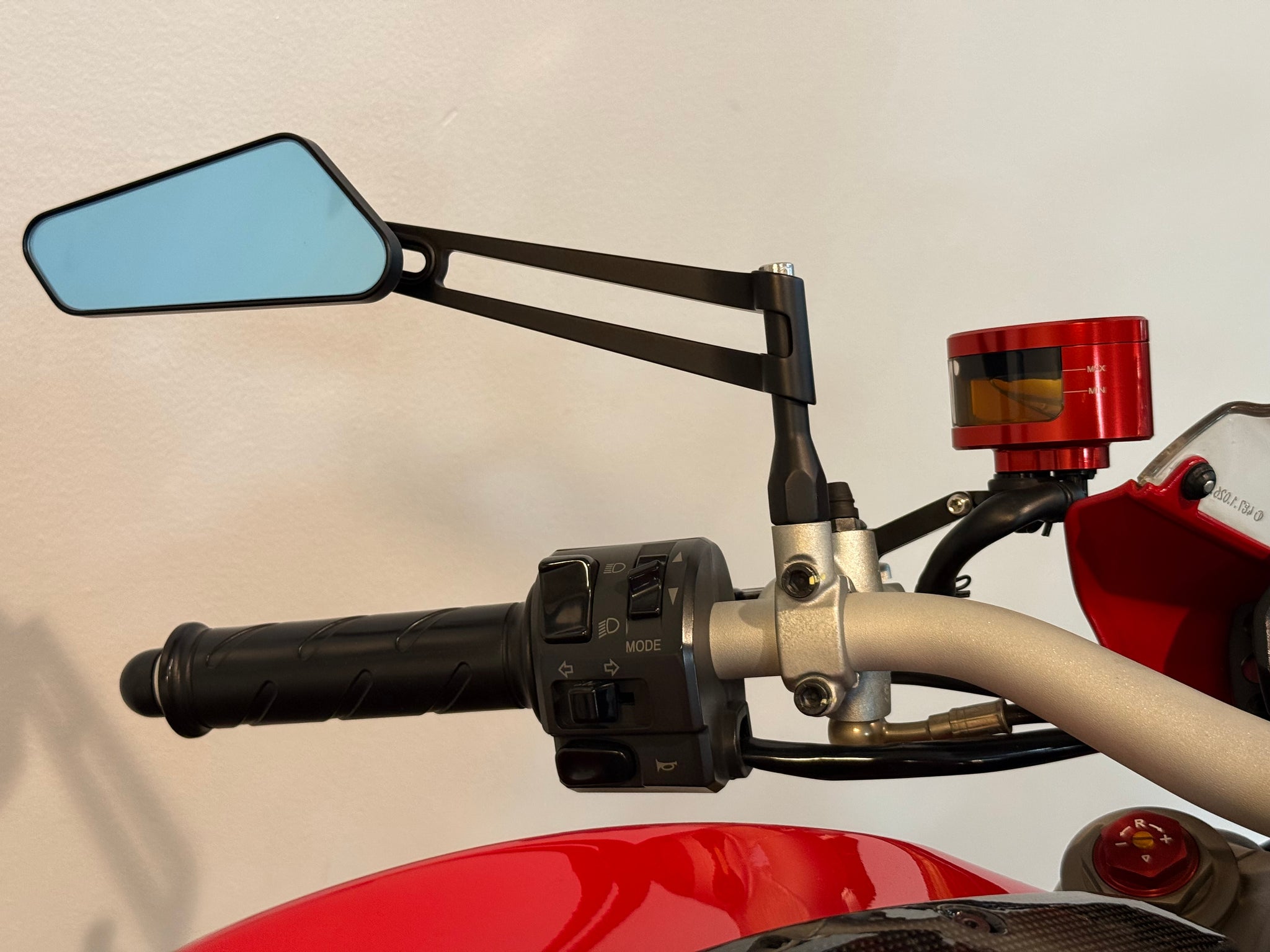

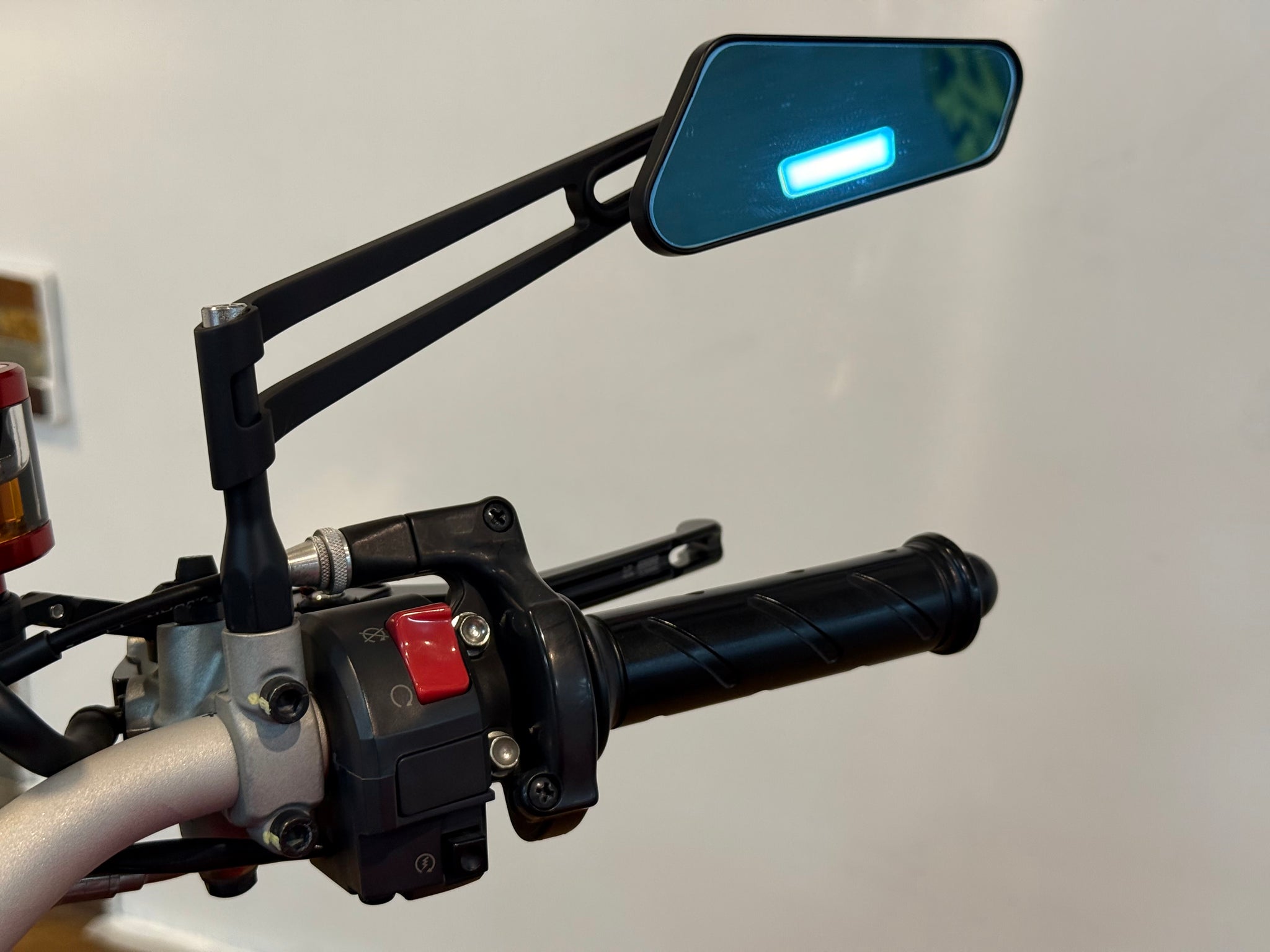

Rizoma Mirrors

• CNC-machined from billet aluminum

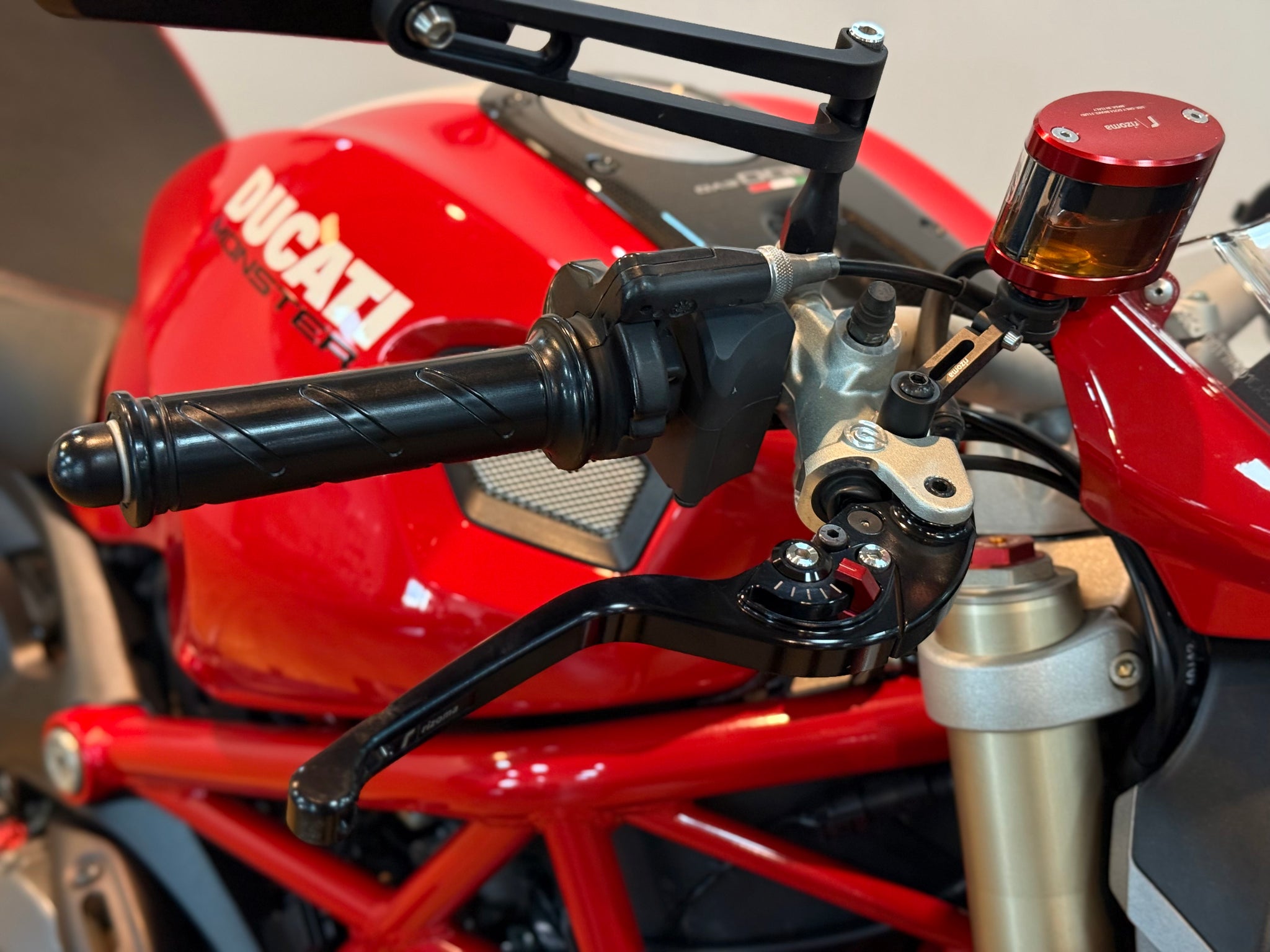

Rizoma Adjustable Clutch and Brake Levers

• CNC-machined aluminum construction

• Adjustable reach for personalized ergonomics

• Enhances control and comfort
