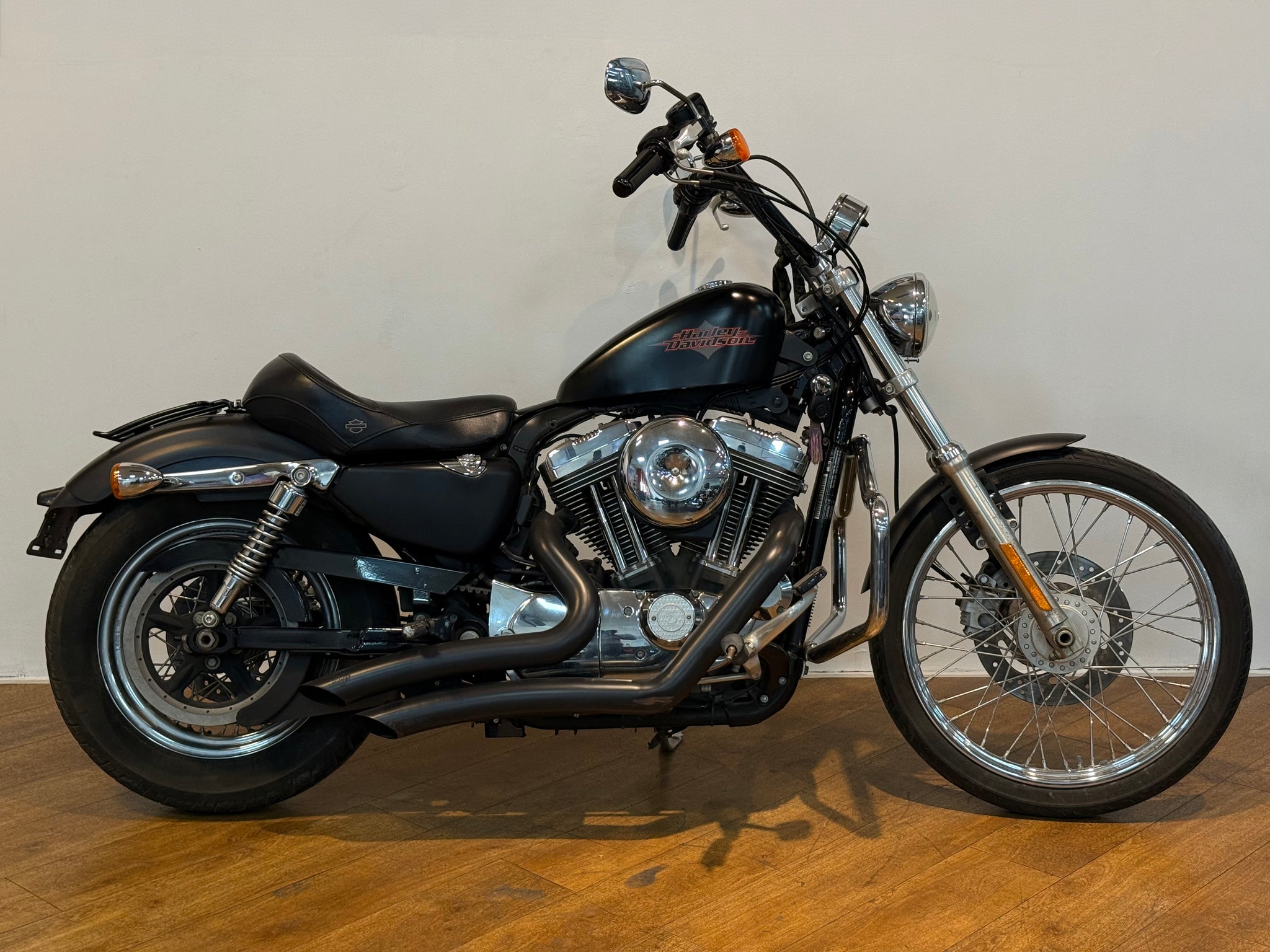

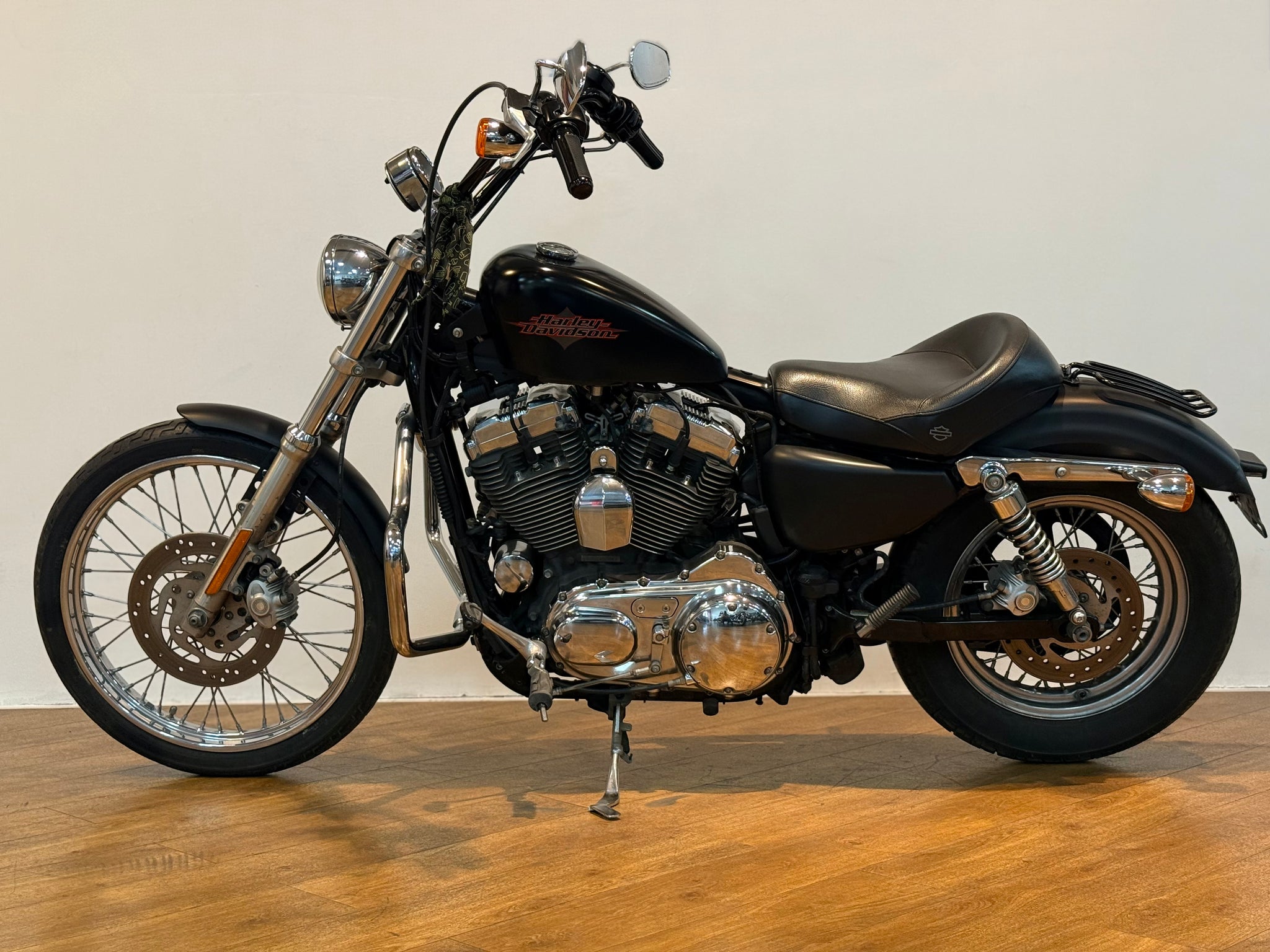

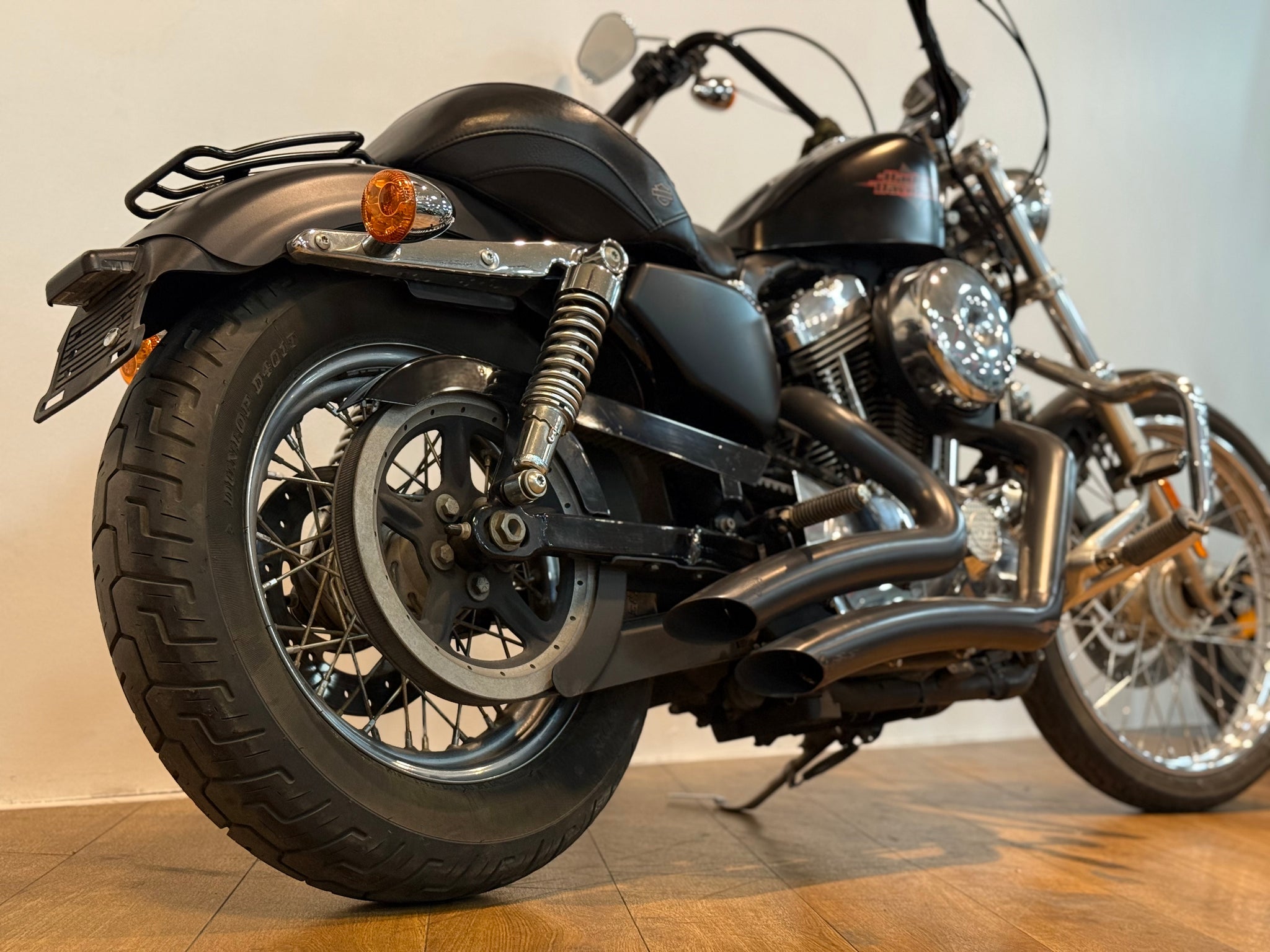

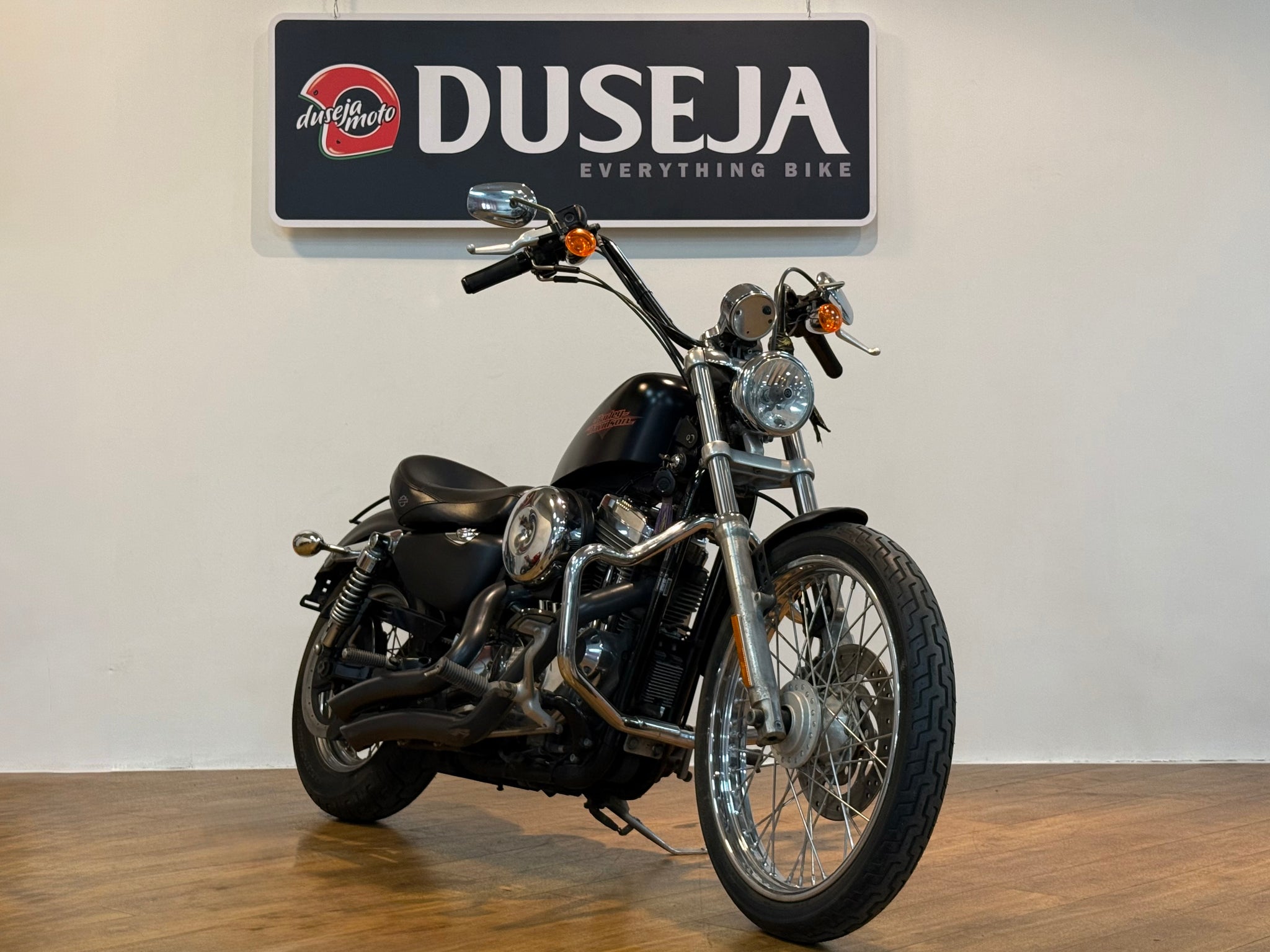

Harley-Davidson Seventy-Two (XL1200V)
Model Year: 2013
Color : Black Denim

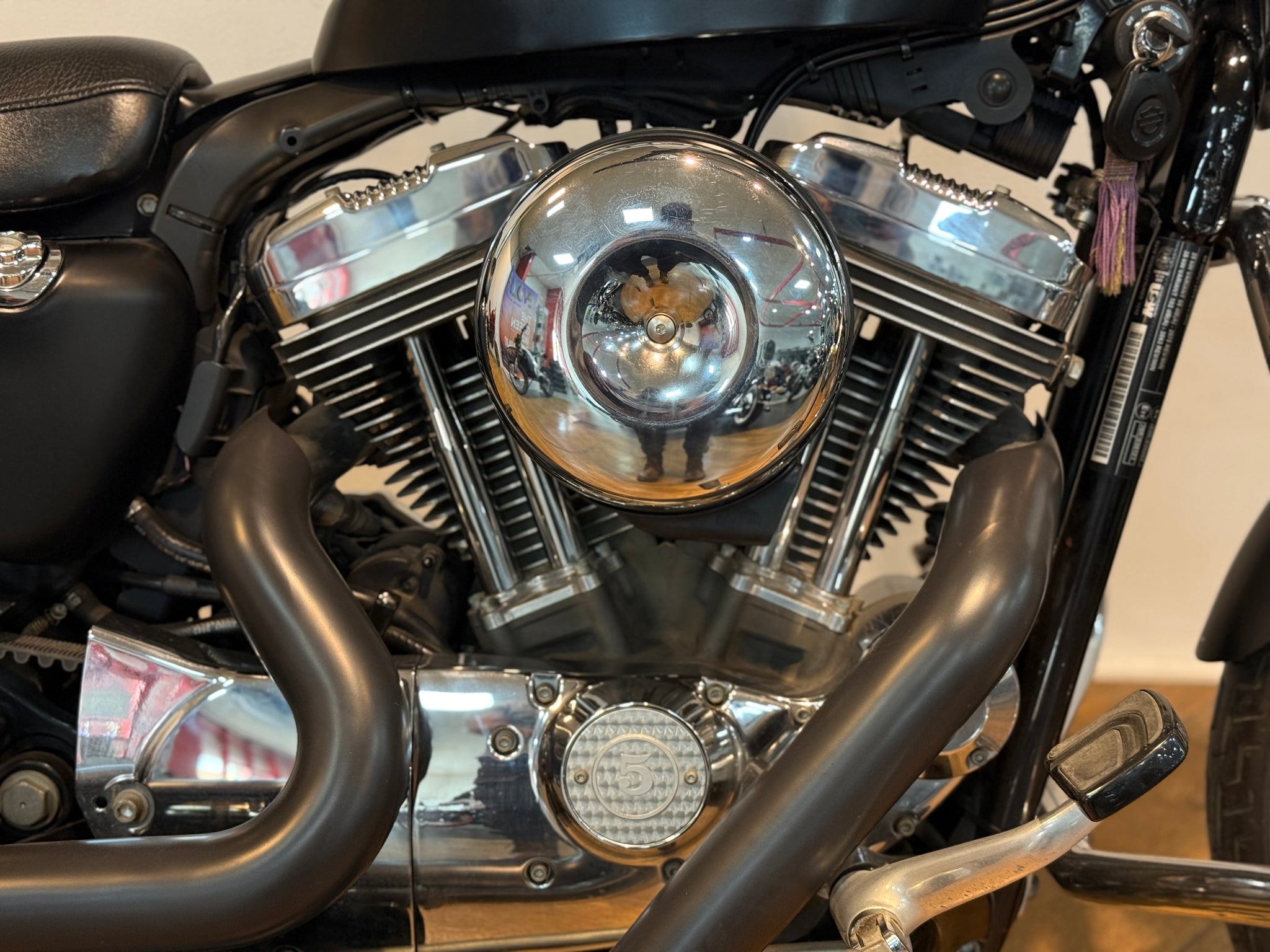

Engine
-
Type: Air-cooled, Evolution® V-Twin
-
Displacement: 1,200 cc (73.3 cu in)
-
Bore x Stroke: 88.9 mm x 96.8 mm (3.5 in x 3.8 in)
-
Compression Ratio: 9.7:1
-
Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)
-
Torque: 73 ft-lb (99 Nm) @ 3,500 rpm
-

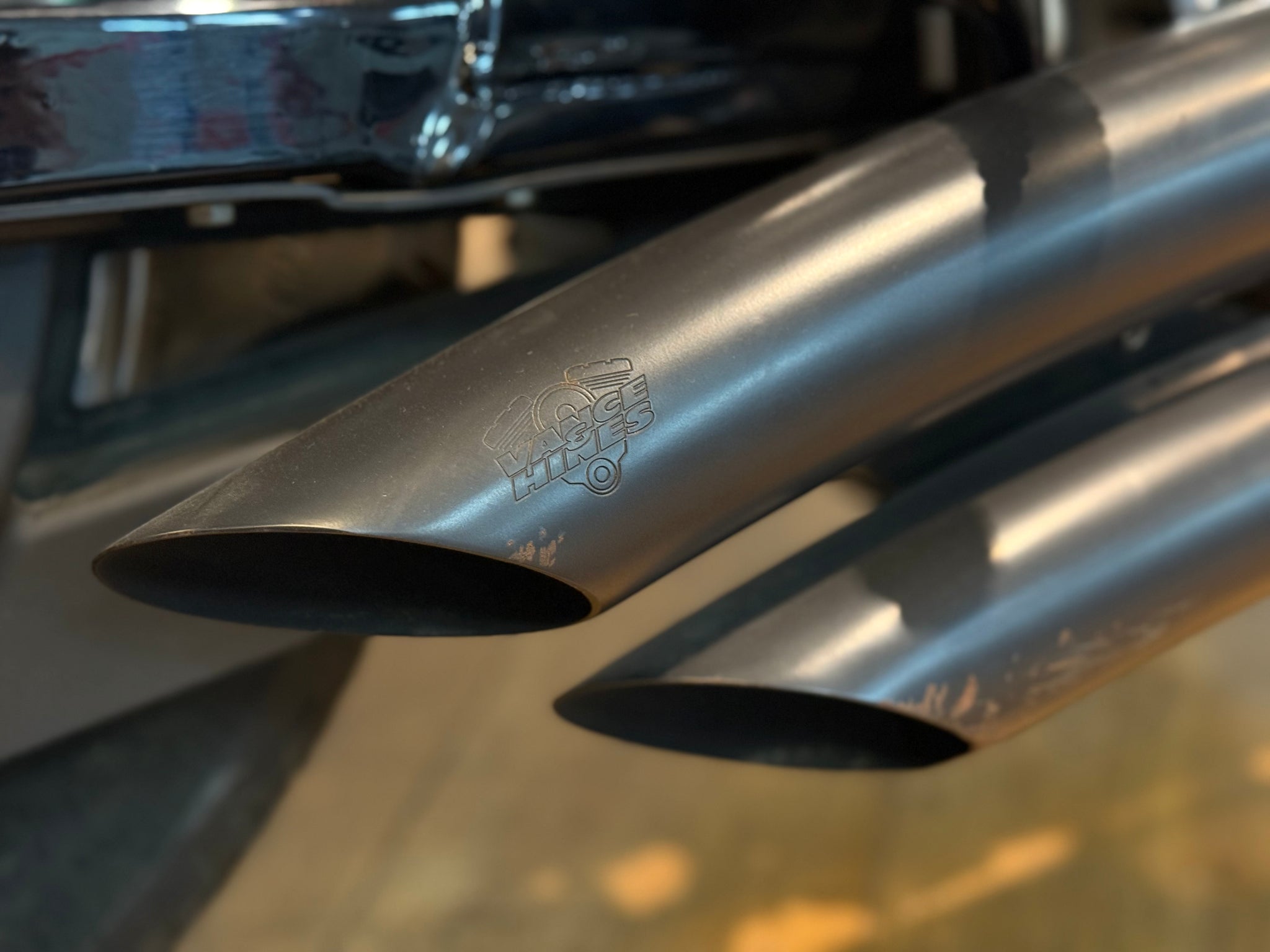

Exhaust: Upgraded to Vance & Hines system, enhancing performance and producing a deeper exhaust note
Transmission
-
Type: 5-speed manual
-
Primary Drive: Chain, 57/38 ratio
-
Final Drive: Belt
Chassis & Suspension
-
Frame: Mild steel, tubular frame with circular sections
-

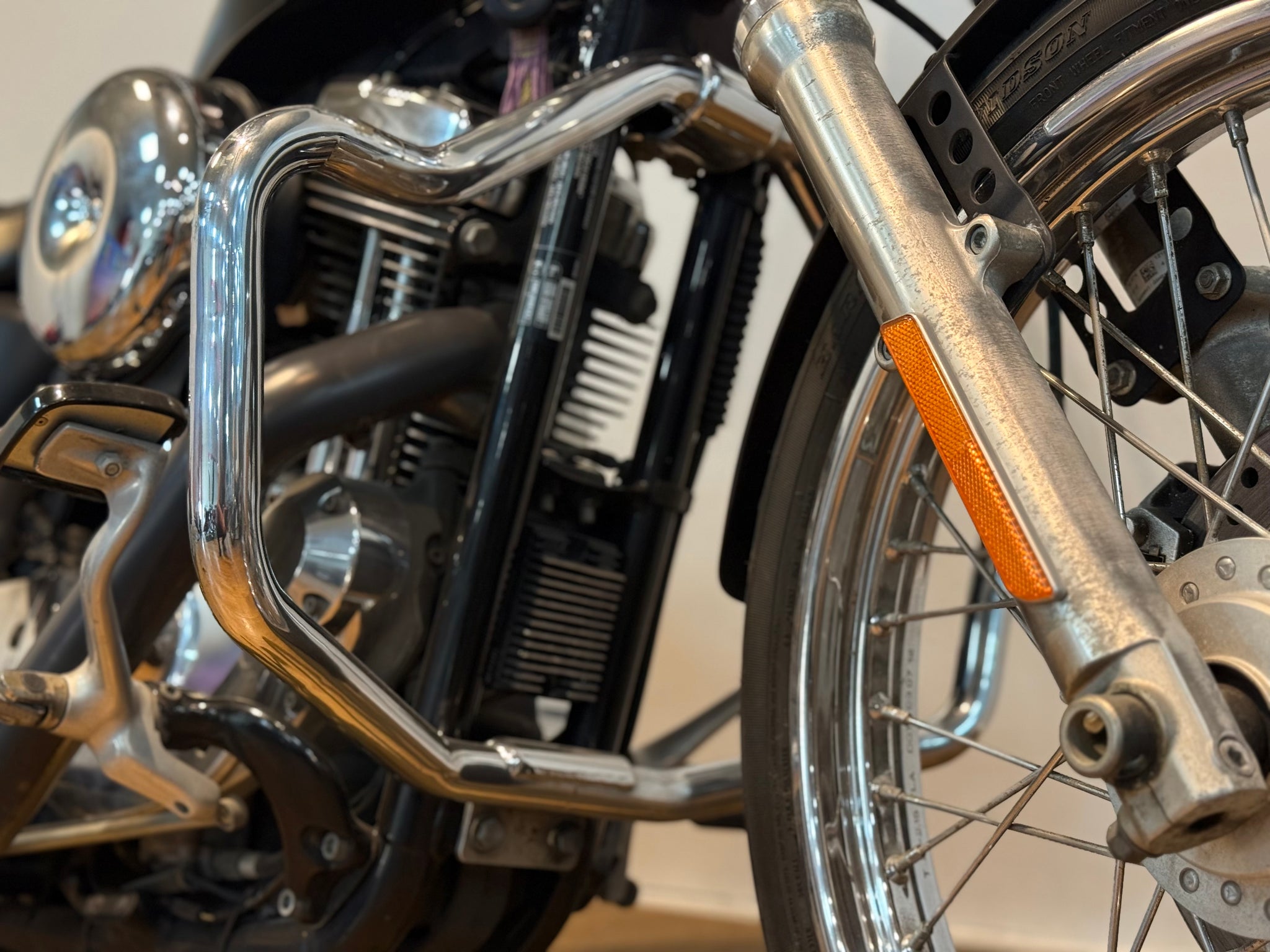

Front Suspension: 39 mm telescopic fork, non-adjustable
-
Rear Suspension: Dual coil-over shocks, preload adjustable
-
Rake (Steering Head): 30.1°
-
Trail: 135 mm (5.3 in)
-
Lean Angle:
-
Right: 28.6°
-
Left: 29.8°
-
Brakes
-
Front Brake: 292 mm disc with dual-piston caliper
-
Rear Brake: 260 mm disc with single-piston caliper
-
ABS: Optional
Wheels & Tires
-

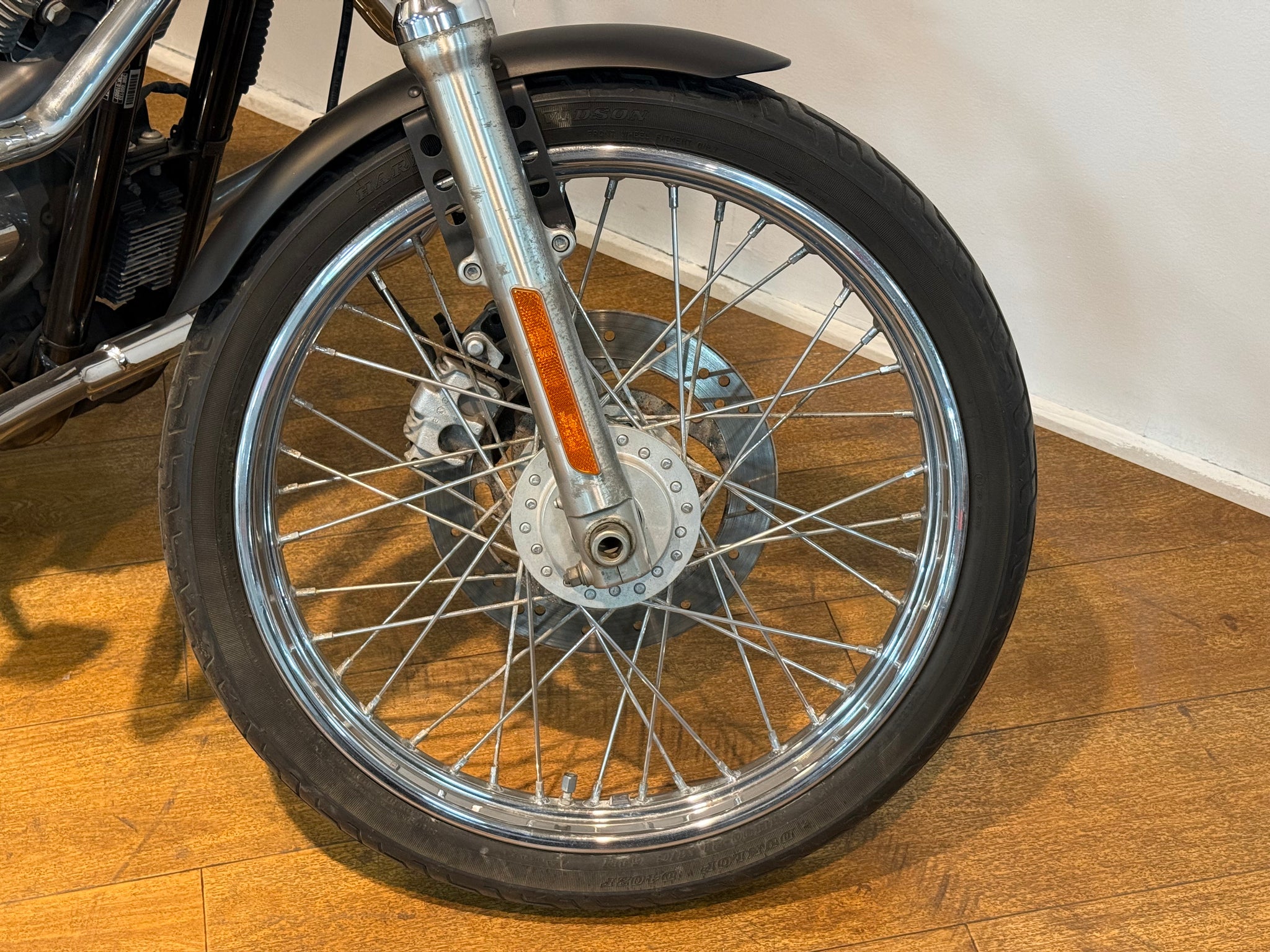

Front Wheel: 21-inch chrome steel laced
-
Rear Wheel: 16-inch chrome steel laced
-
Front Tire: Michelin® MH90-21 54H
-
Rear Tire: Michelin® 150/80B16 71H
Dimensions
-
Overall Length: 2,275 mm (89.6 in)
-
Wheelbase: 1,524 mm (60 in)
-
Ground Clearance: 119 mm (4.7 in)
-
Seat Height: Unladen: 711 mm (28 in)
-
Dry Weight: 247 kg (545 lbs)
-
Wet Weight: 252 kg (555 lbs)
-
Fuel Tank Capacity: 7.9 liters (2.1 US gal)
-
Oil Capacity (with filter): 2.6 liters (2.75 US qt)
Performance
-
Fuel Economy (Combined City/Hwy): Approximately 4.9 L/100 km (48 mpg)
-
Estimated Fuel Range: Approximately 132 km (82 miles)
Features
-

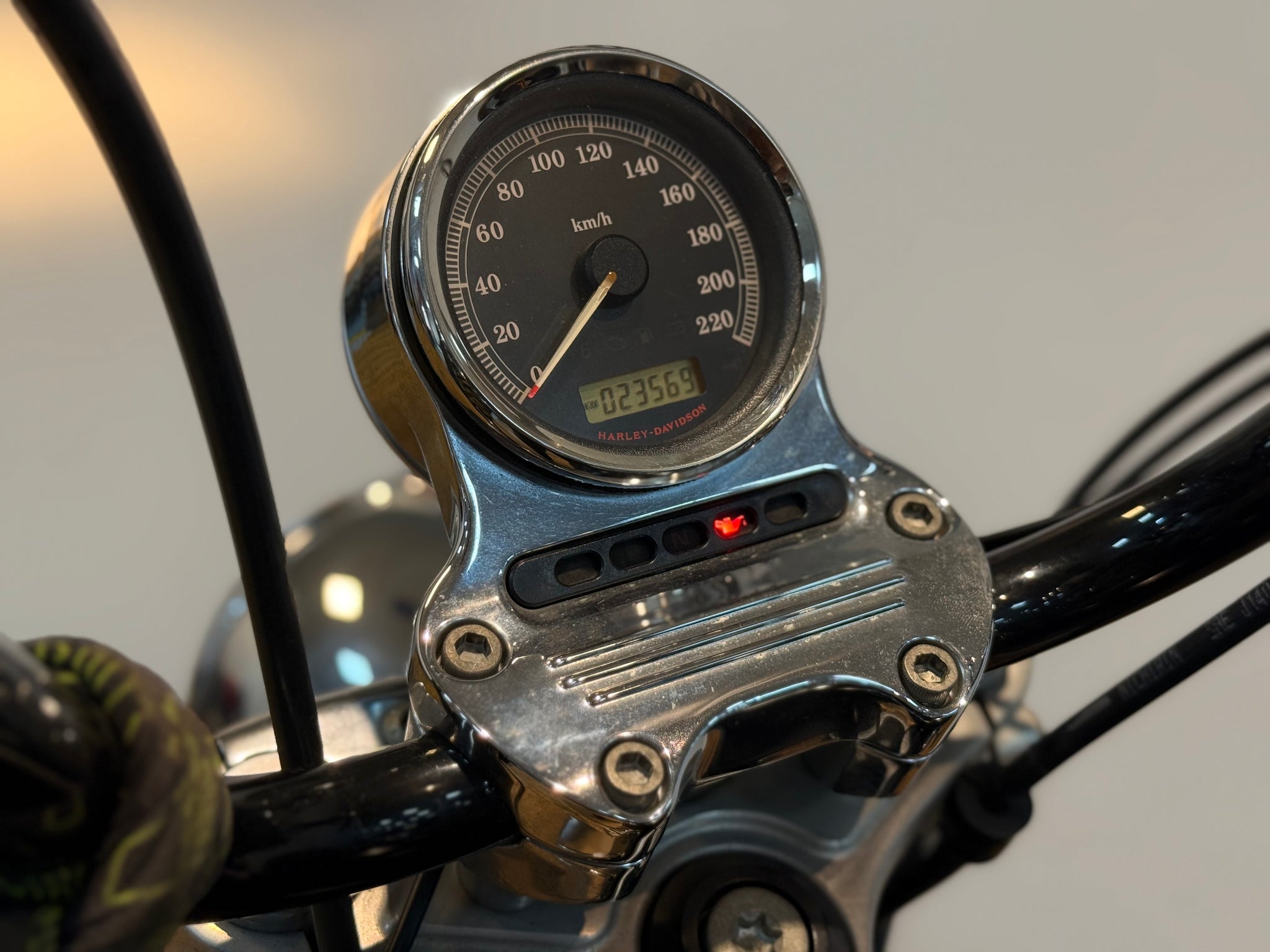

Instrumentation: Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
-

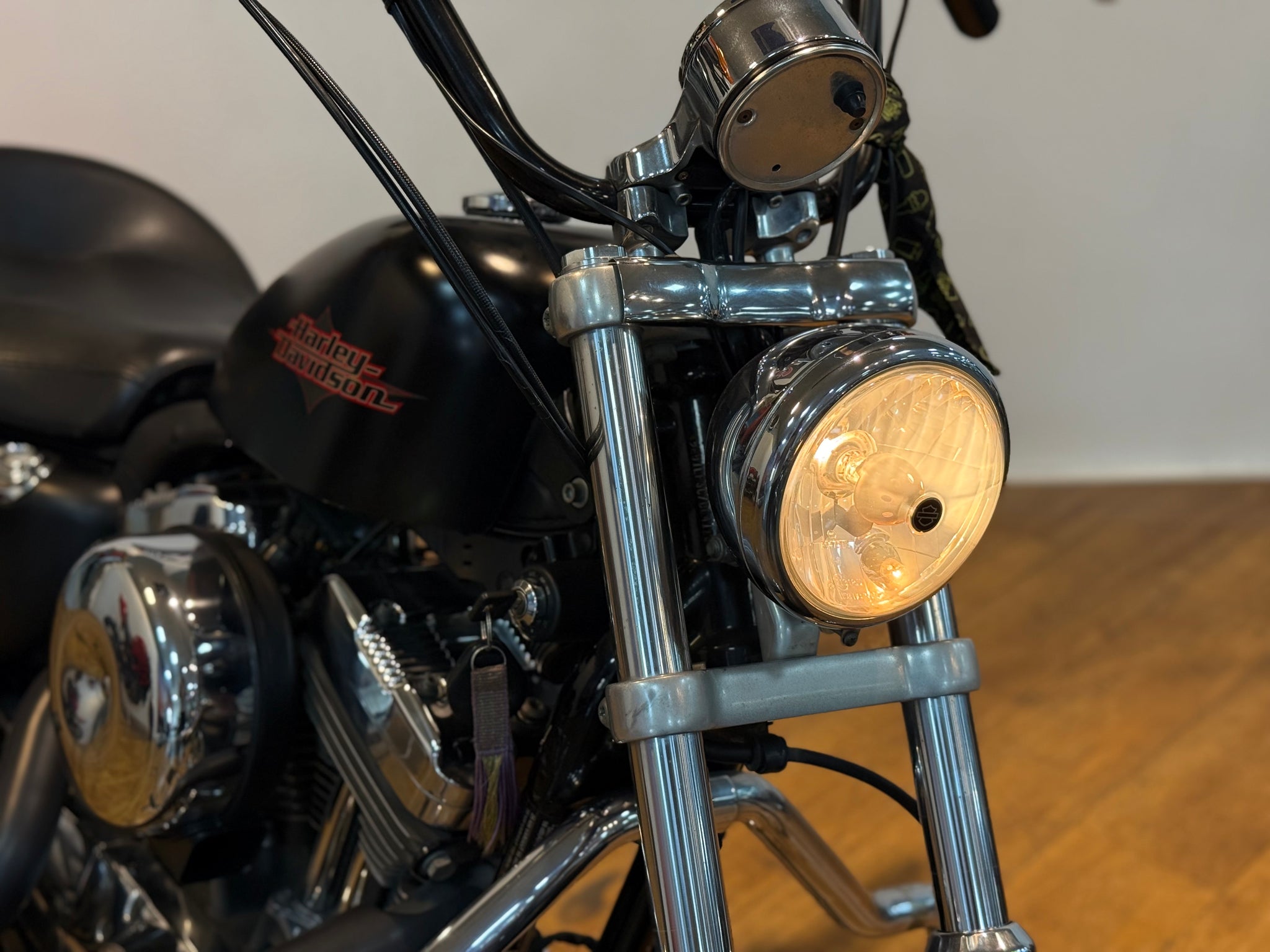

Lighting: High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, optional security system
-

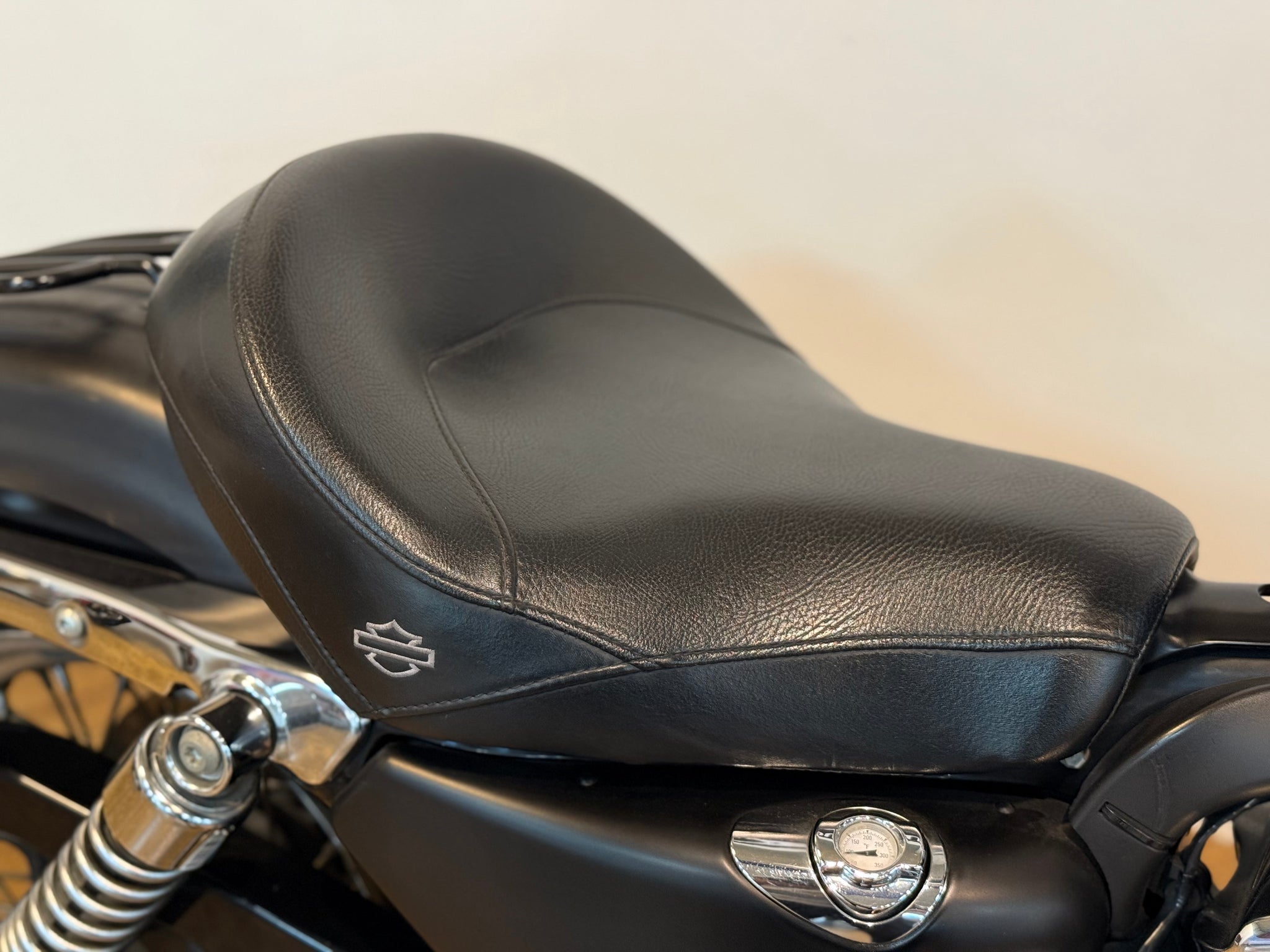

Seating: Solo seat with optional passenger pillion
-

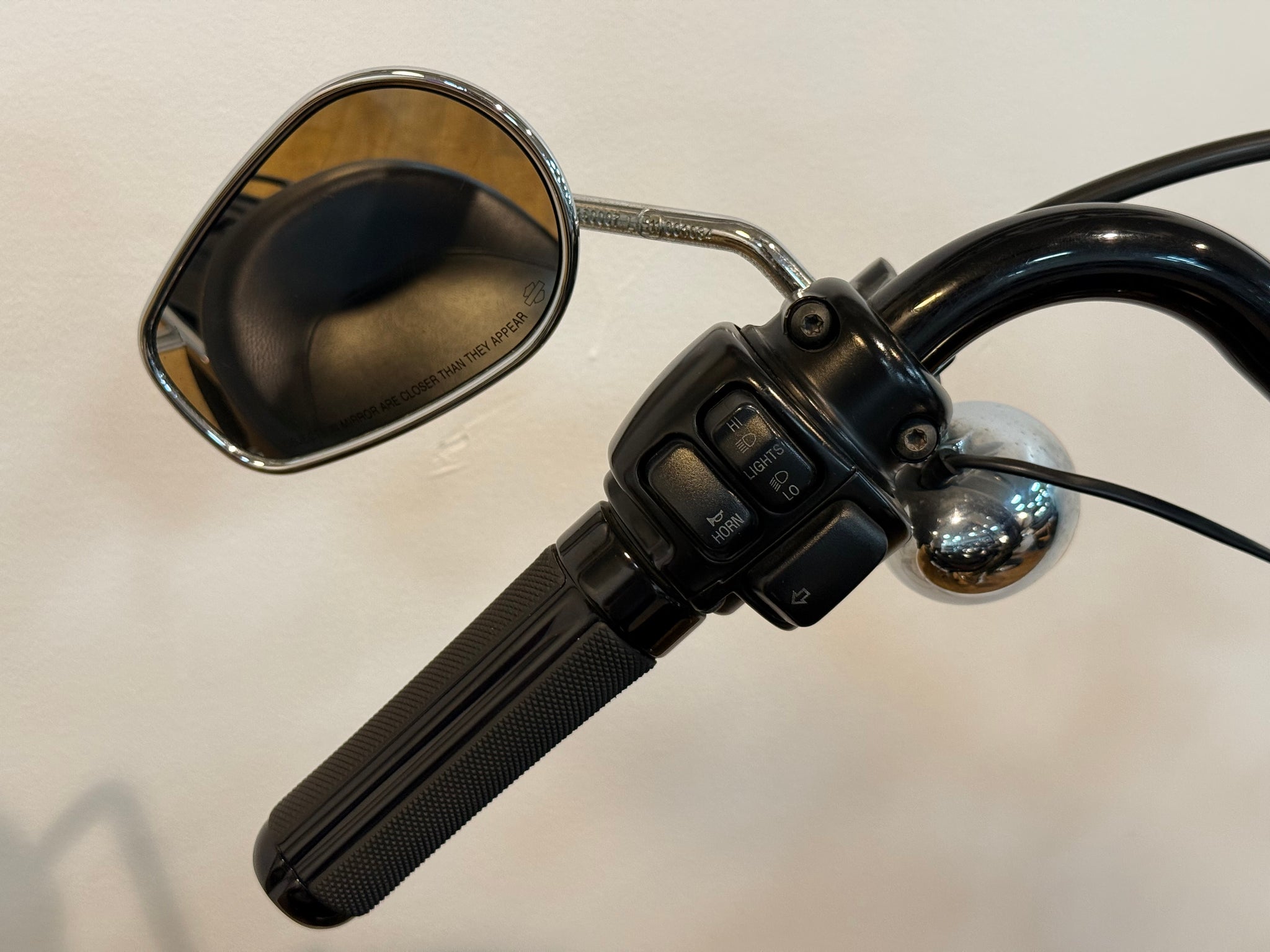

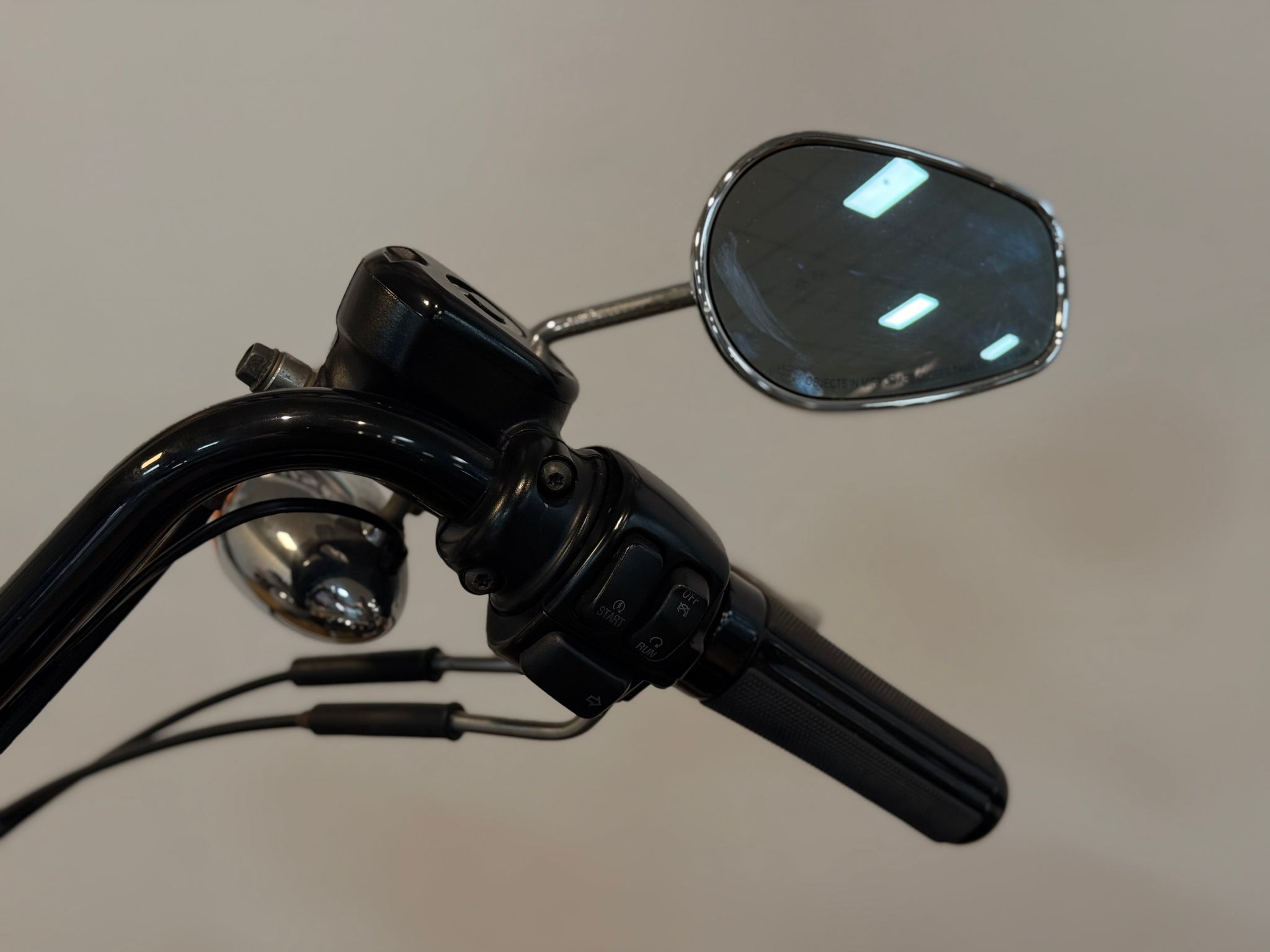

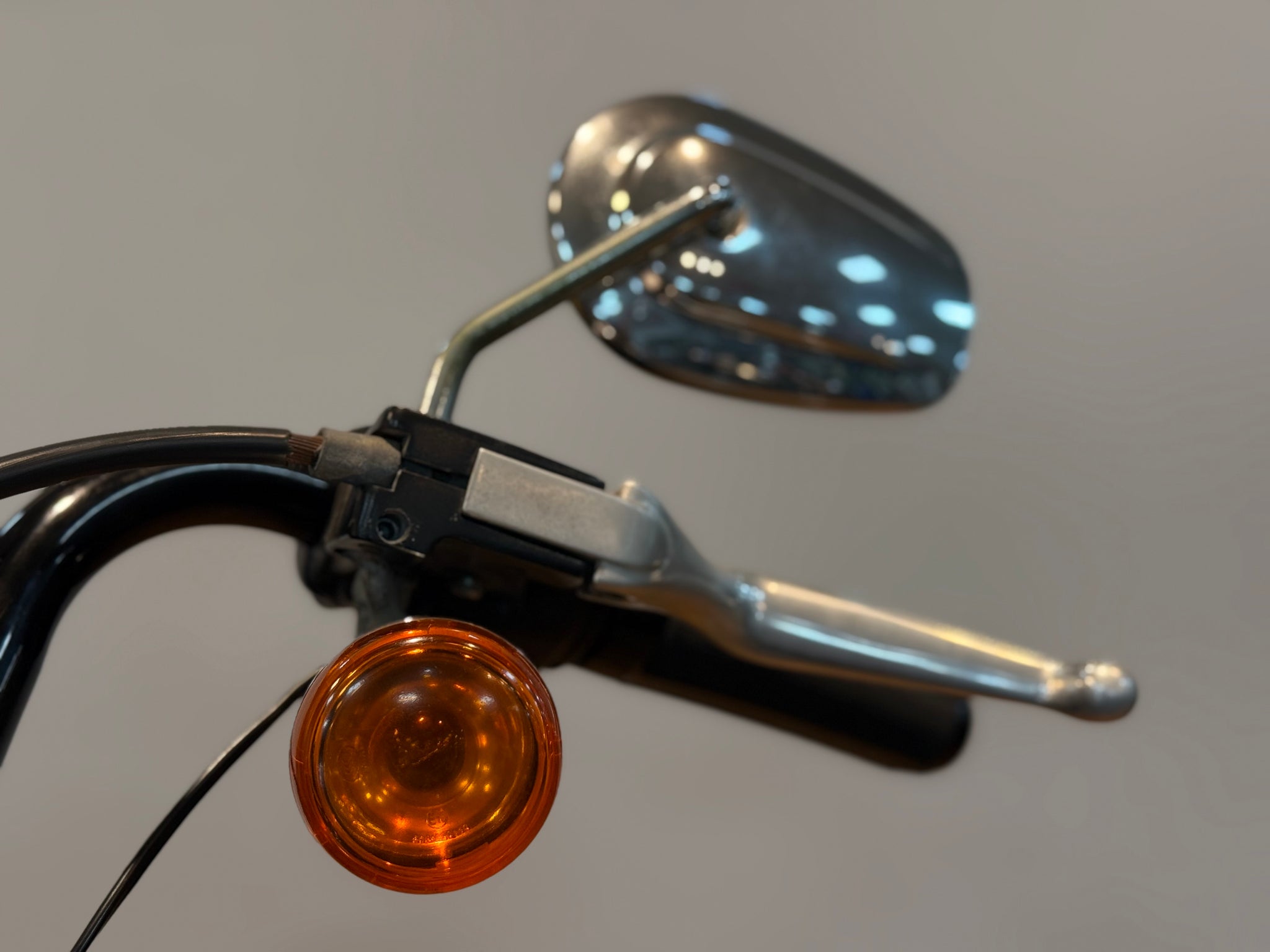

Handlebars: Mini ape-hanger handlebars
-

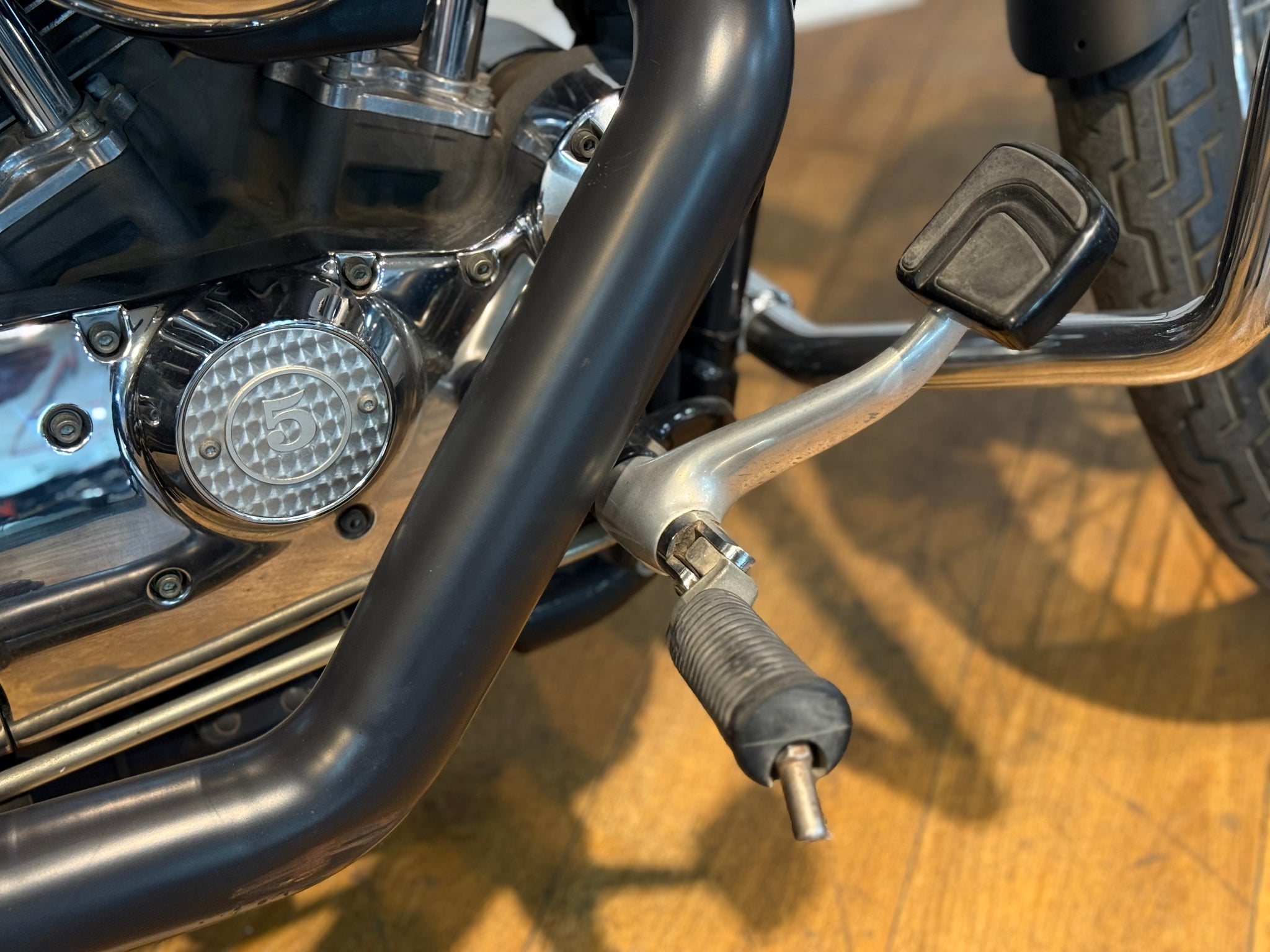

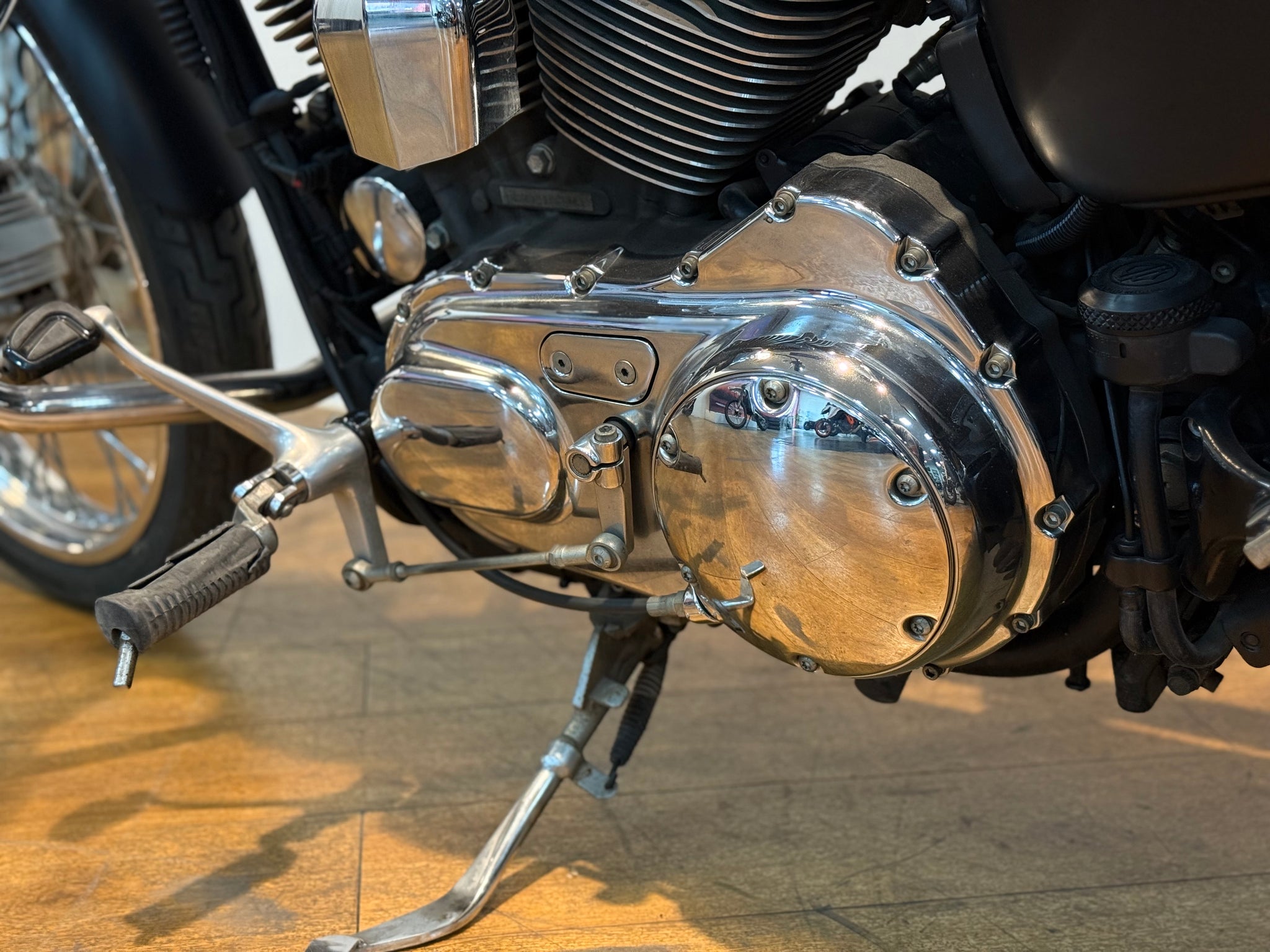

Foot Controls: Forward-mounted foot controls
-

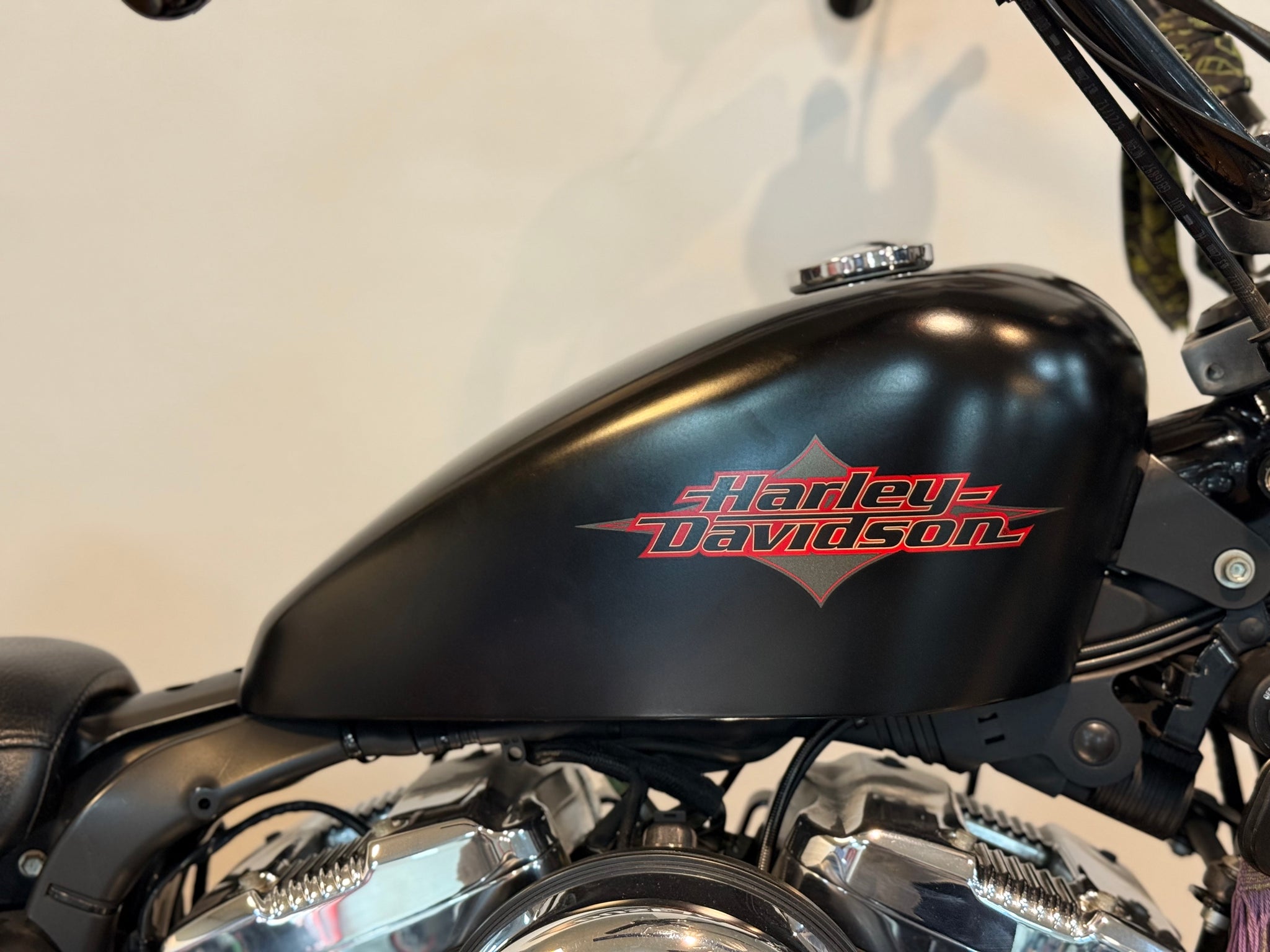

Styling: Classic '70s-inspired chopper design with peanut fuel tank
