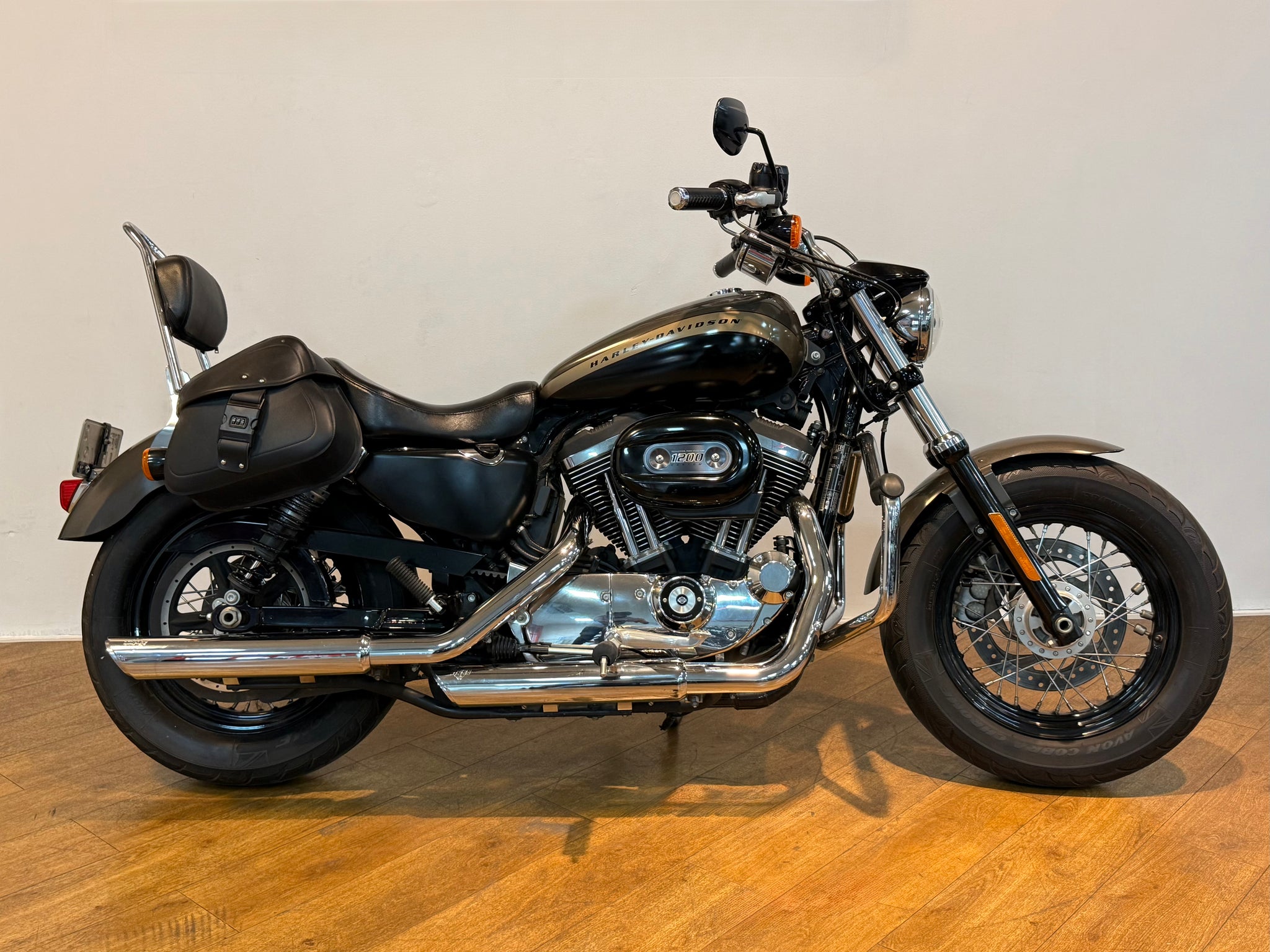

Harley Davidson Sportster 1200 Custom

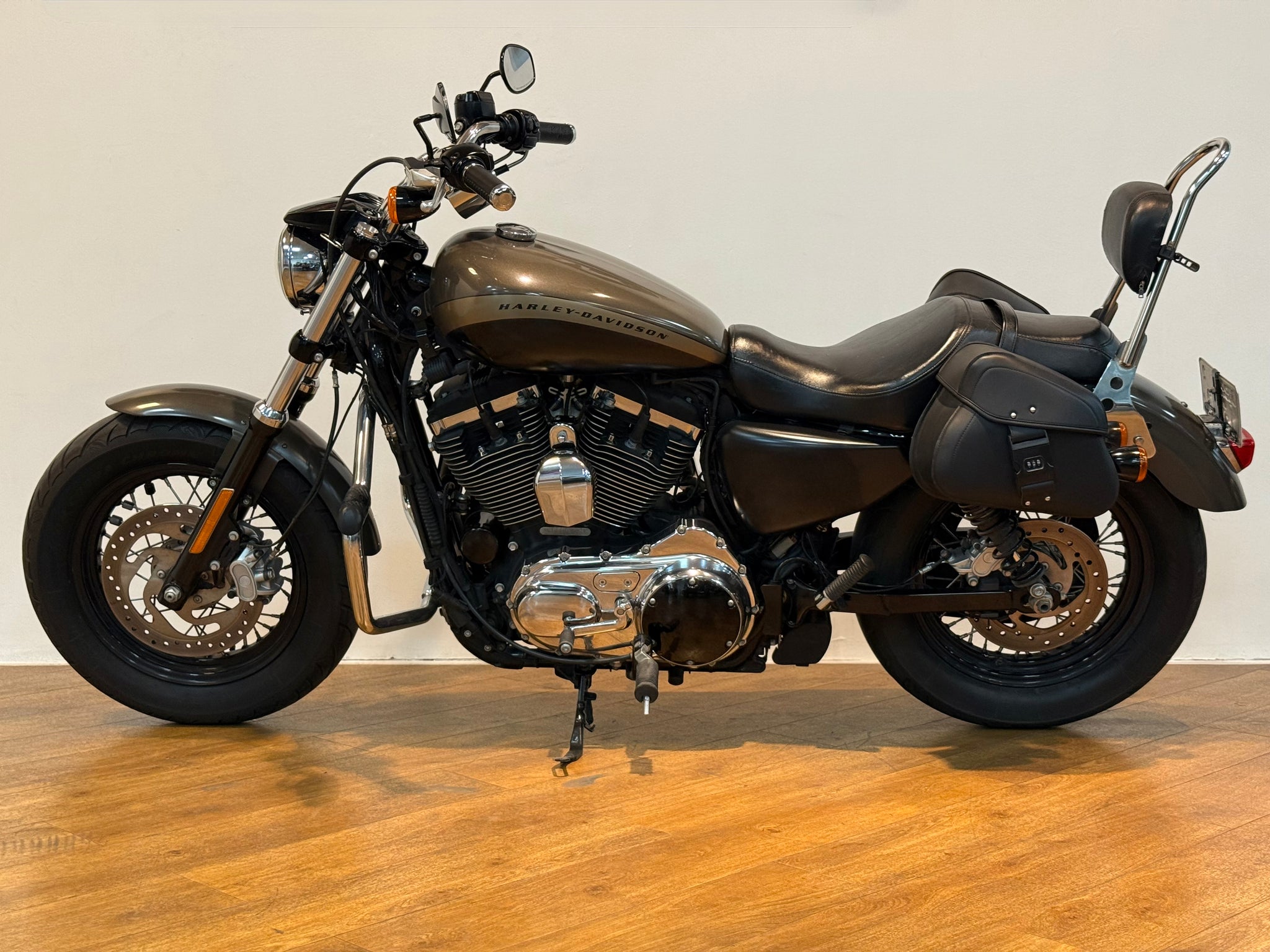

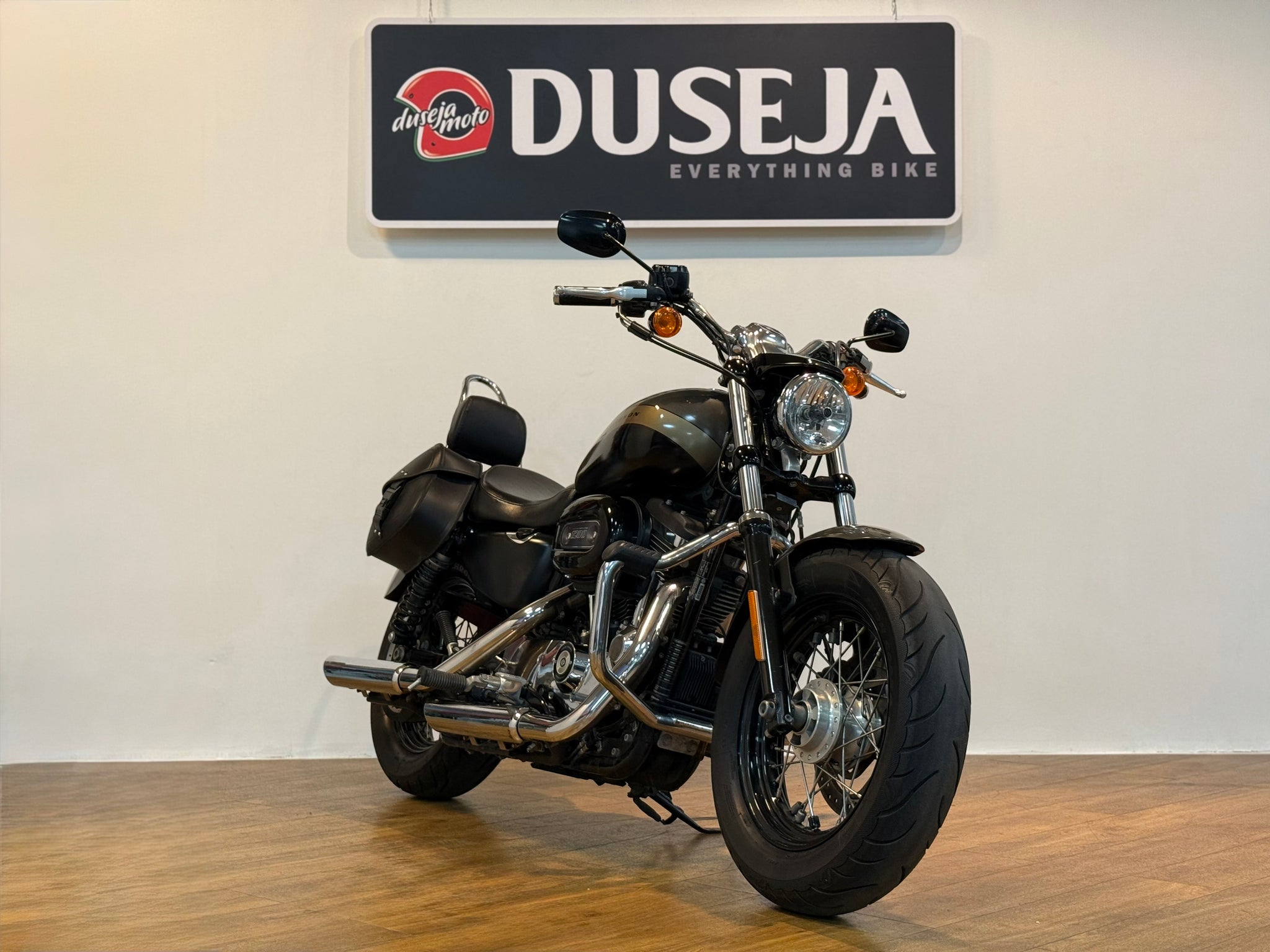

Harley-Davidson Sportster 1200 Custom (XL1200C)

Model Year: 2018
Color : Sumatra Brown

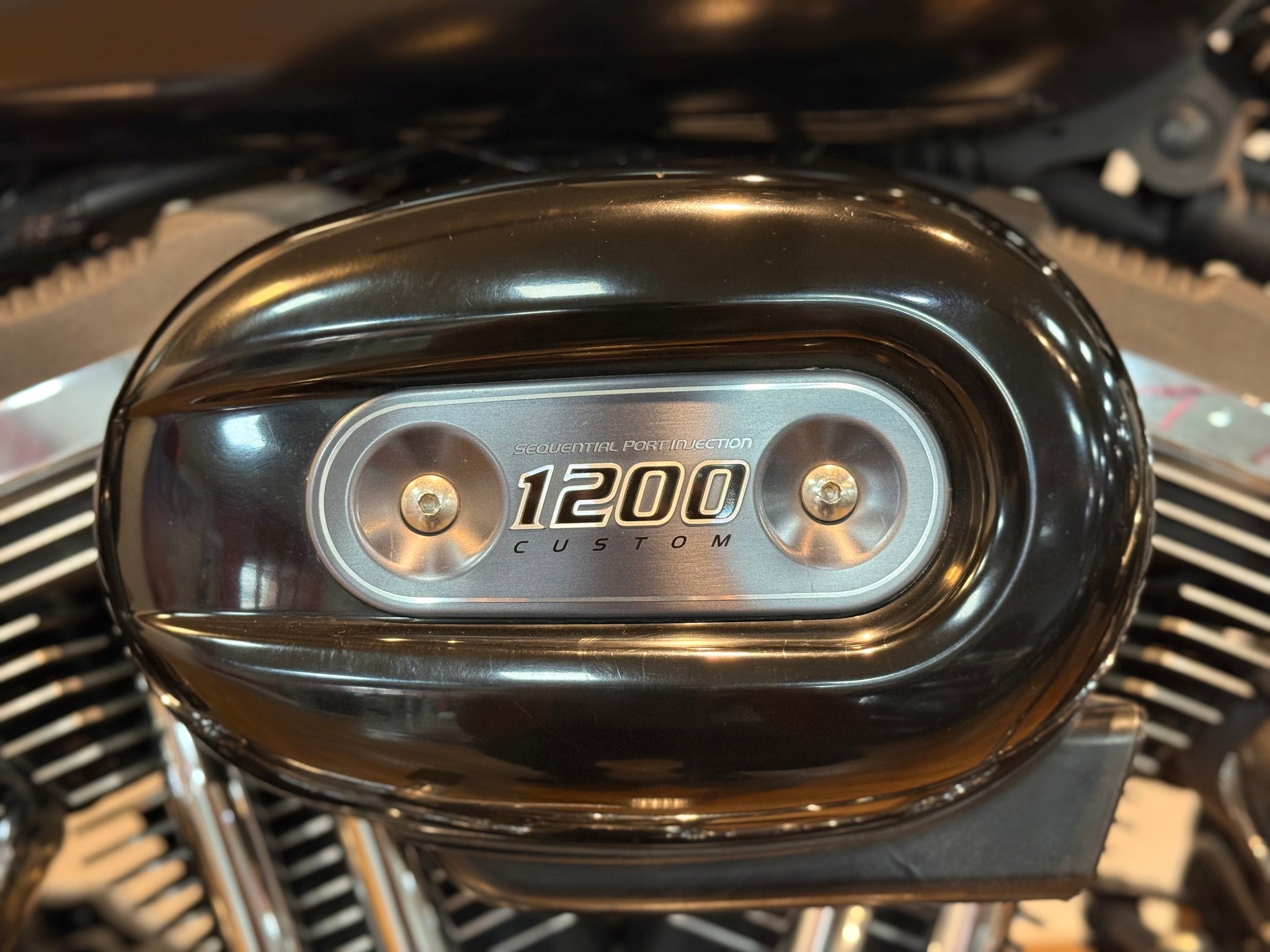

Engine

• Type: Air-cooled Evolution® V-Twin

• Displacement: 1,202 cc (73.4 cu in)

• Bore x Stroke: 88.9 mm x 96.8 mm

• Compression Ratio: 10.0:1

• Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)

• Torque: 73 ft-lb (99 Nm) @ 3,500 rpm

• Exhaust: Upgraded to Vance & Hines, enhancing performance and producing a deeper exhaust note

Transmission

• Type: 5-speed manual

• Primary Drive: Chain, 57/38 ratio

• Final Drive: Belt

• Gear Ratios (Overall):

  • 1st: 9.315

  • 2nd: 6.653

  • 3rd: 4.948

  • 4th: 4.102

  • 5th: 3.517

Chassis & Suspension

• Frame: Mild steel, tubular frame with circular sections

• Front Suspension: 39 mm telescopic fork, non-adjustable

• Rear Suspension: Dual coil-over shocks, preload adjustable

• Rake (Steering Head): 30°

• Trail: 107 mm (4.2 in)

• Lean Angle:

  • Right: 26.2°

  • Left: 28.3°

Brakes

• Front Brake: 292 mm disc with dual-piston caliper

• Rear Brake: 260 mm disc with dual-piston caliper

• ABS: Optional

Wheels & Tires

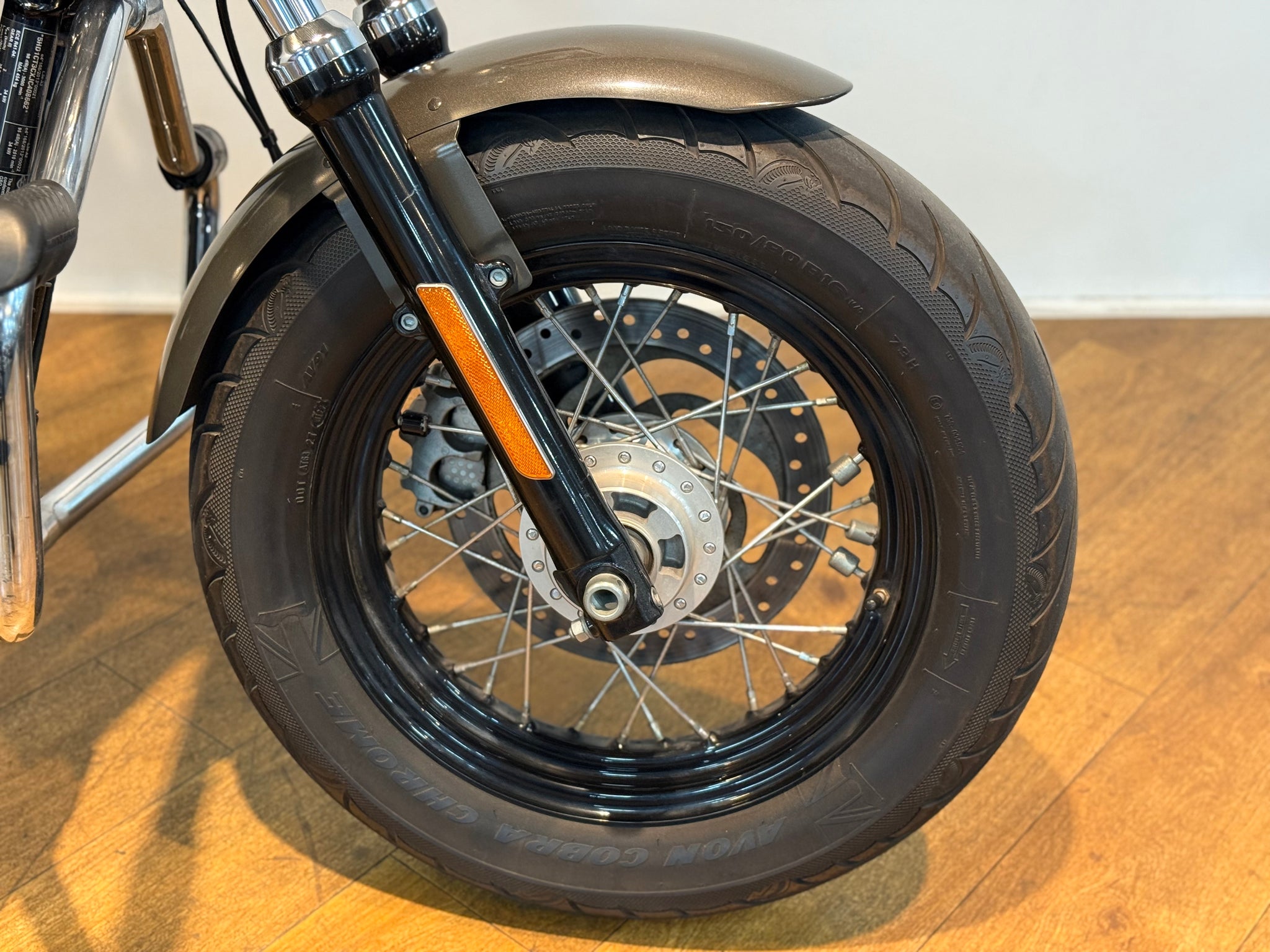

• Front Wheel: 16-inch chrome steel laced

• Rear Wheel: 16-inch chrome steel laced

• Front Tire: 130/90B16 73H

• Rear Tire: 150/80B16 77H

Dimensions

• Overall Length: 2,225 mm (87.6 in)

• Wheelbase: 1,530 mm (60.2 in)

• Ground Clearance: 105 mm (4.1 in)

• Seat Height:

  • Laden: 676 mm (26.6 in)

  • Unladen: 725 mm (28.5 in)

• Dry Weight: 255 kg (562 lbs)

• Running Order Weight: 268 kg (591 lbs)

• Fuel Tank Capacity: 17 liters (4.5 US gal)

• Oil Capacity (with filter): 2.6 liters (2.8 US qt)

Performance

• Fuel Economy (Combined City/Hwy): Approximately 4.9 L/100 km (48 mpg)

• Estimated Fuel Range: Approximately 306 km (190 miles)

Features

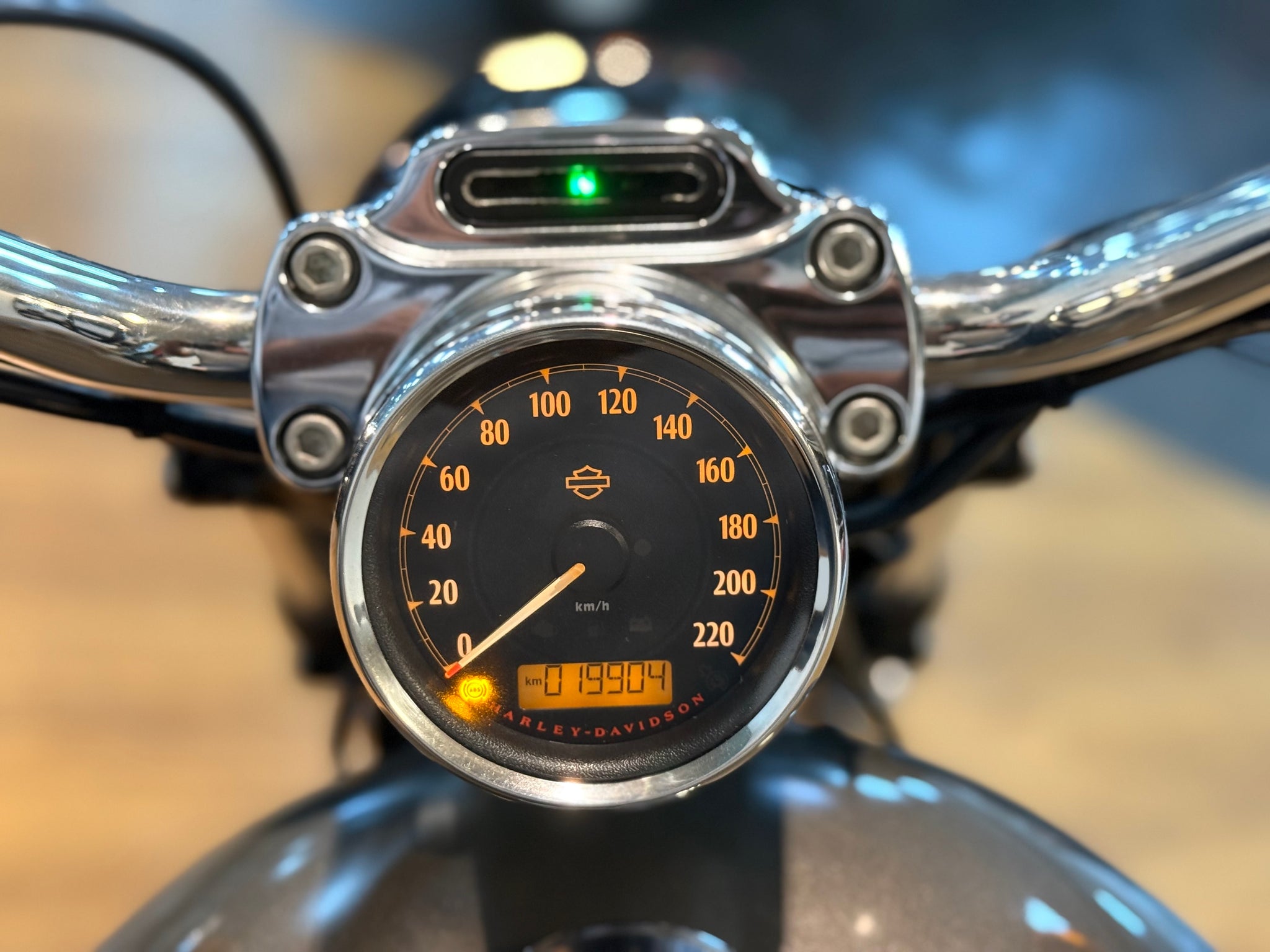

• Instrumentation: Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights

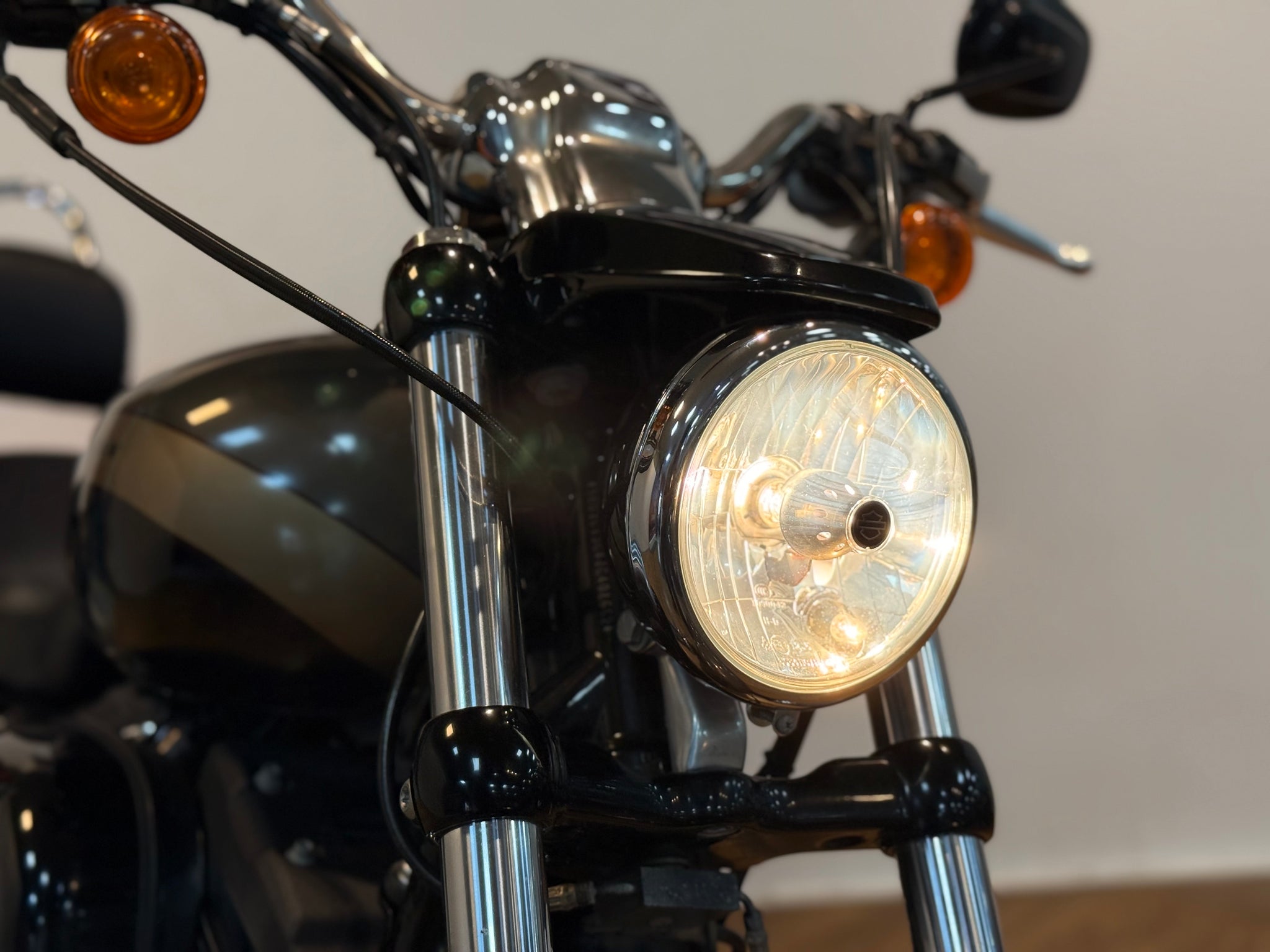

• Lighting: High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, optional security system

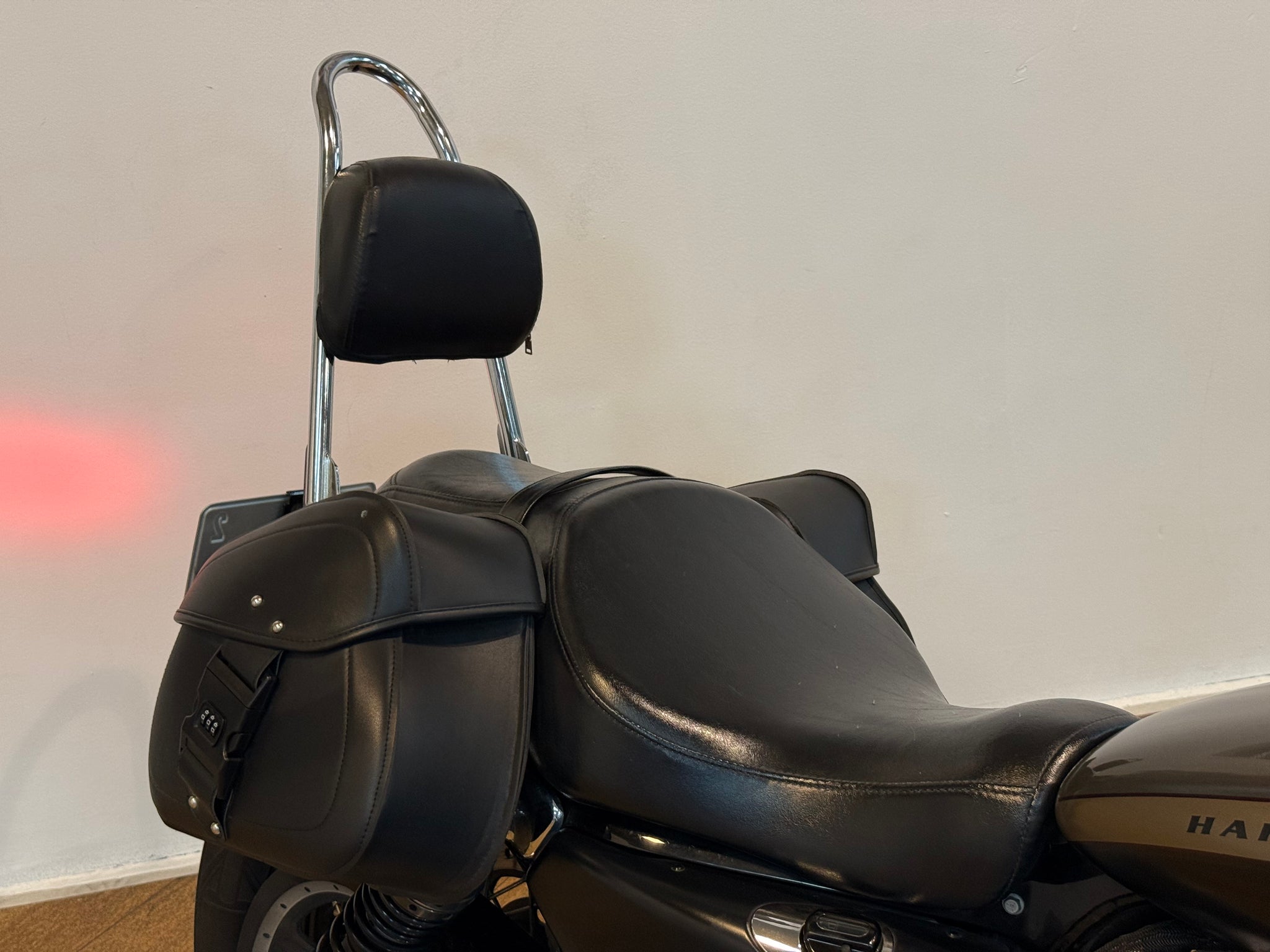

• Seating: Two-up seat with optional passenger backrest

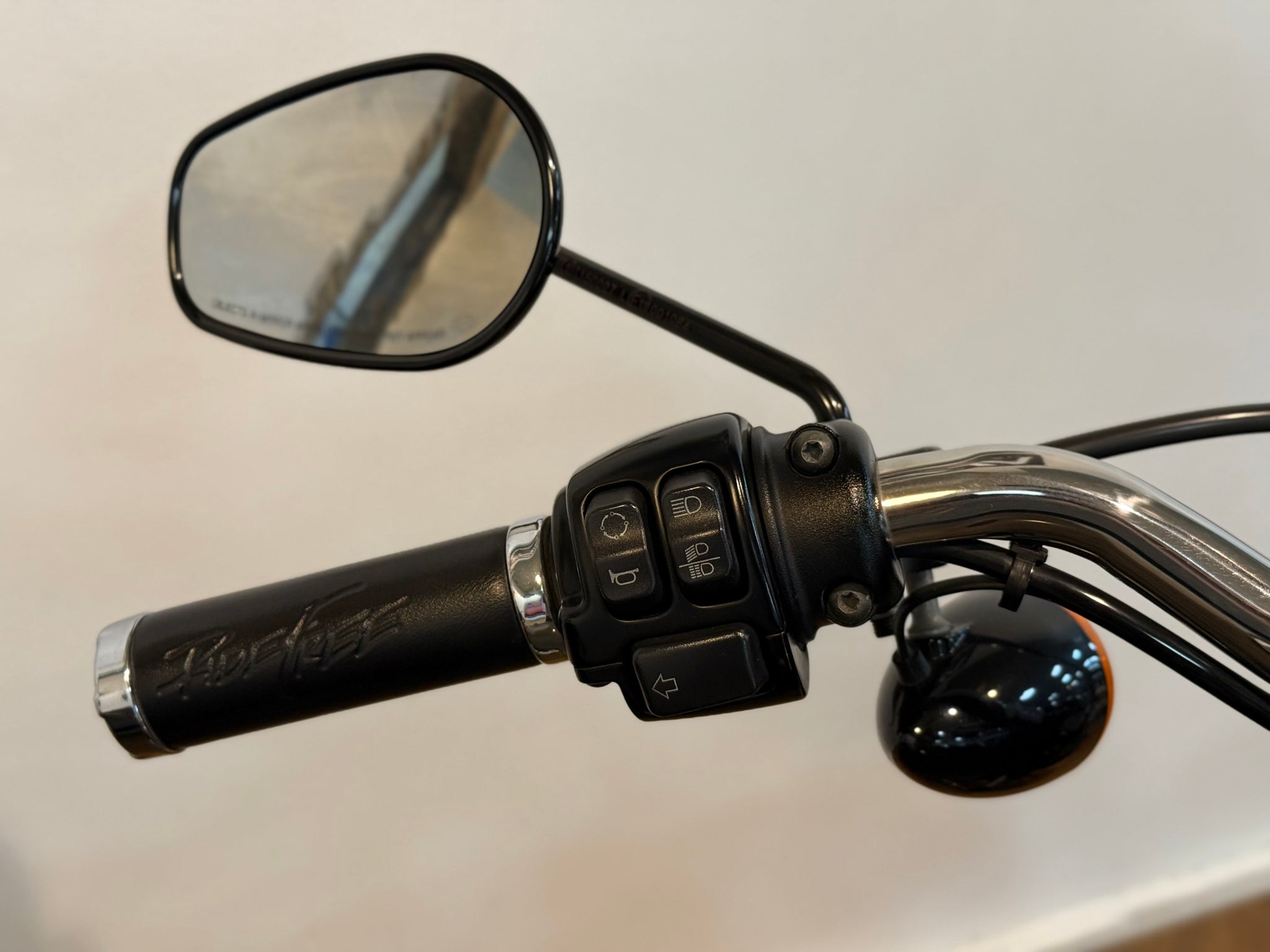

• Handlebars: Pull-back handlebars

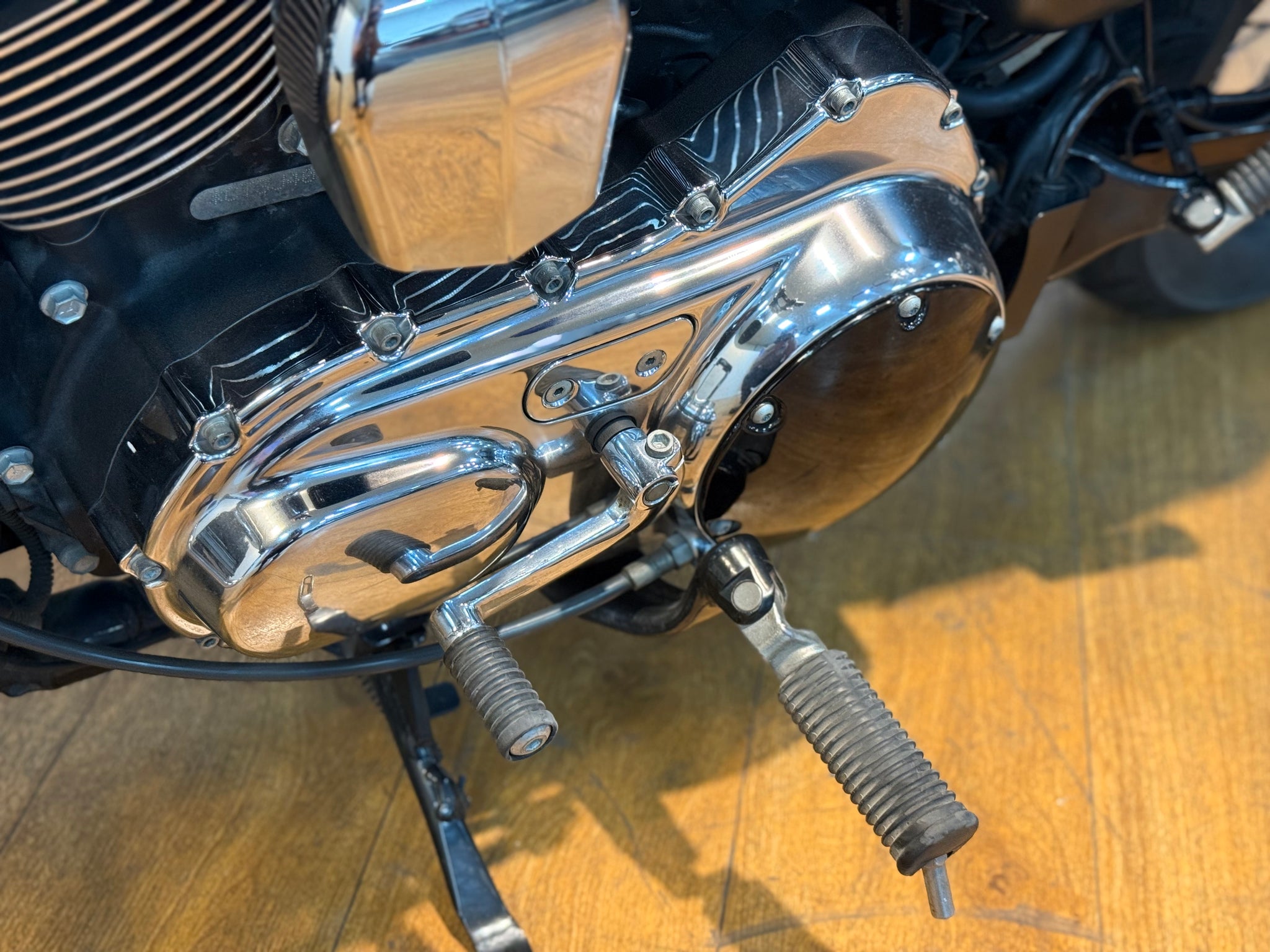

• Foot Controls: Forward-mounted foot controls

• Styling: Classic cruiser design with chrome accents and custom paint options

Aftermarket Accessories

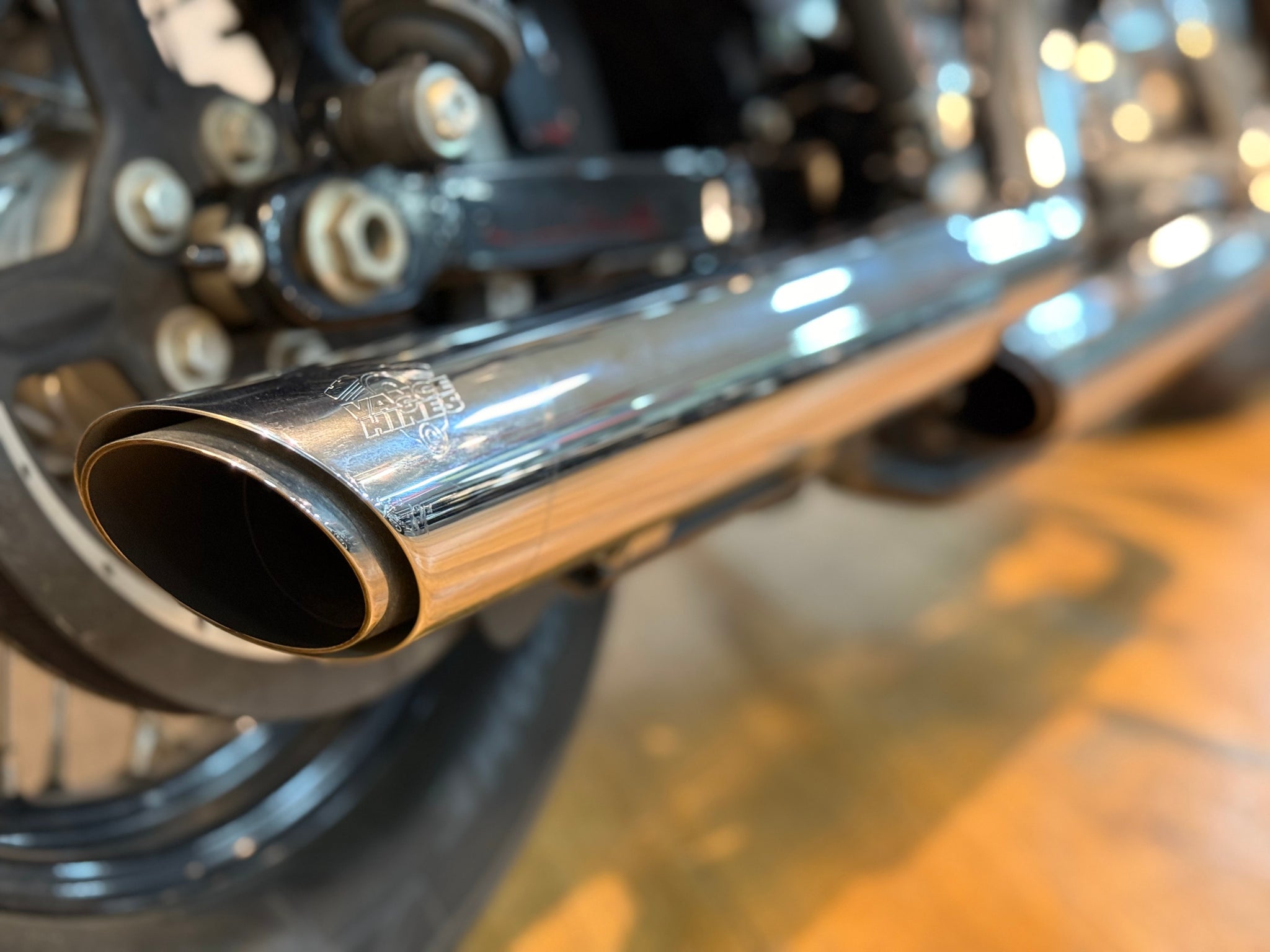

Vance & Hines Exhaust System

• Constructed from high-quality materials with a chrome finish

• Enhances performance and produces a deeper exhaust note

• Includes necessary hardware and heat shields

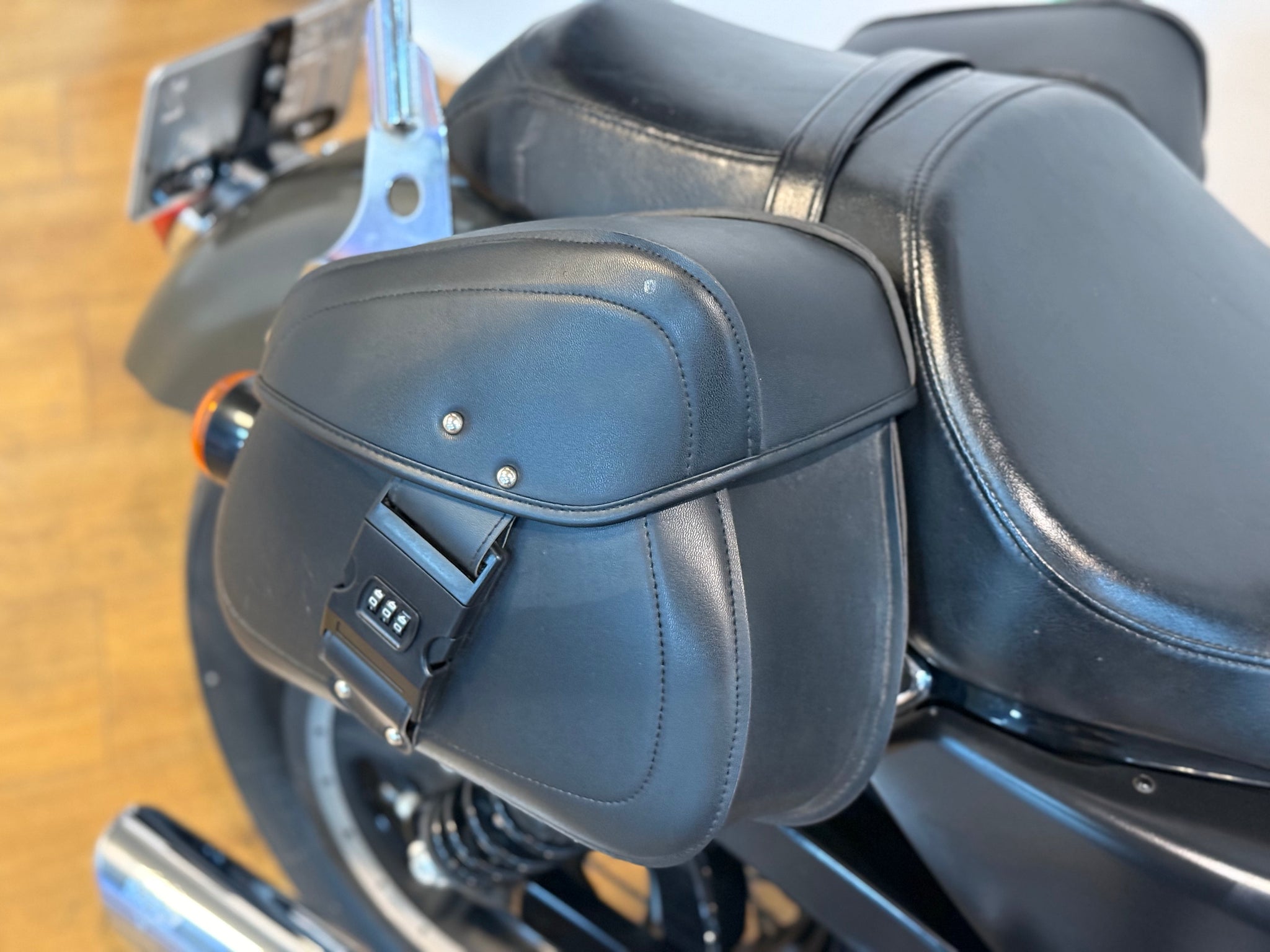

Saddlebags

• Leather saddlebags designed for the Sportster 1200 Custom

• Provides additional storage capacity for long rides
