| ENGINE | |
| Engine (type) | Liquid-cooled, 4-stroke |
| Cylinder arrangement | Twin-cylinder, 90° L-type |
| Bore & Stroke | 106,0 x 67,9 mm |
| Displacement | 1198,4 cm³ (73,13 cu. in) |
| Compression ratio | 12.7:1 12.8:1 – Ducati 1198R Corse |
| Valve train | Belt driven desmodromic, DOHC, 4 valves per cylinder |
| Max. power | 170,0 hp (125,0 kW) / 9750 rpm 180,0 hp (132,4 kW) / 9750 rpm – Ducati 1198R Corse |
| Max. torque | 131,4 Nm / 13,4 kgm / 8000 rpm 134,0 Nm / 13,7 kgm / 7750 rpm – Ducati 1198R Corse |
| Acceleration 0 to 100 km/h (0-60 mph) | 3,0 sec.1 |
| Top speed | 298 km/h (185 mph)2 |
| Fuel system (type) | MARELLI indirect electronic injection, 63,9 mm 2 injectors per cylinder – Ducati 1198R Corse |
| Fuel economy / consumption | 7,13 l / 100 km (33 mpg)3 |
| DRIVE TRAIN | |
| Clutch | Dry, multi-plate, hydraulic operated Slipper function – R Corse, SP |
| Transmission | 6-speed |
| Final drive | Chain |
| Gear ratio I II III IV V VI |
2.467 1.765 1.350 1.090 0.958 0.880 |
| FRAME | |
| Frame (type) | ALS 450 steel tube trellis frame |
| Front suspension, travel | 43 mm inverted telescopic fork Showa (fully adjustable), 127 mm / 5,0 in – Ducati 1198 43 mm inverted telescopic fork Öhlins (fully adjustable), 120 mm / 4,7 in – Ducati 1198S / 1198R / 1198SP |
| Rear suspension, travel | Swingarm with mono-shock Showa (fully adjustable), 127 mm / 5,0 in – Ducati 1198 Swingarm with mono-shock Öhlins (fully adjustable), 127 mm / 5,0 in – Ducati 1198S / 1198R / 1198SP |
| Front tire size | 120/70-ZR17 |
| Rear tire size | 190/55-ZR17 |

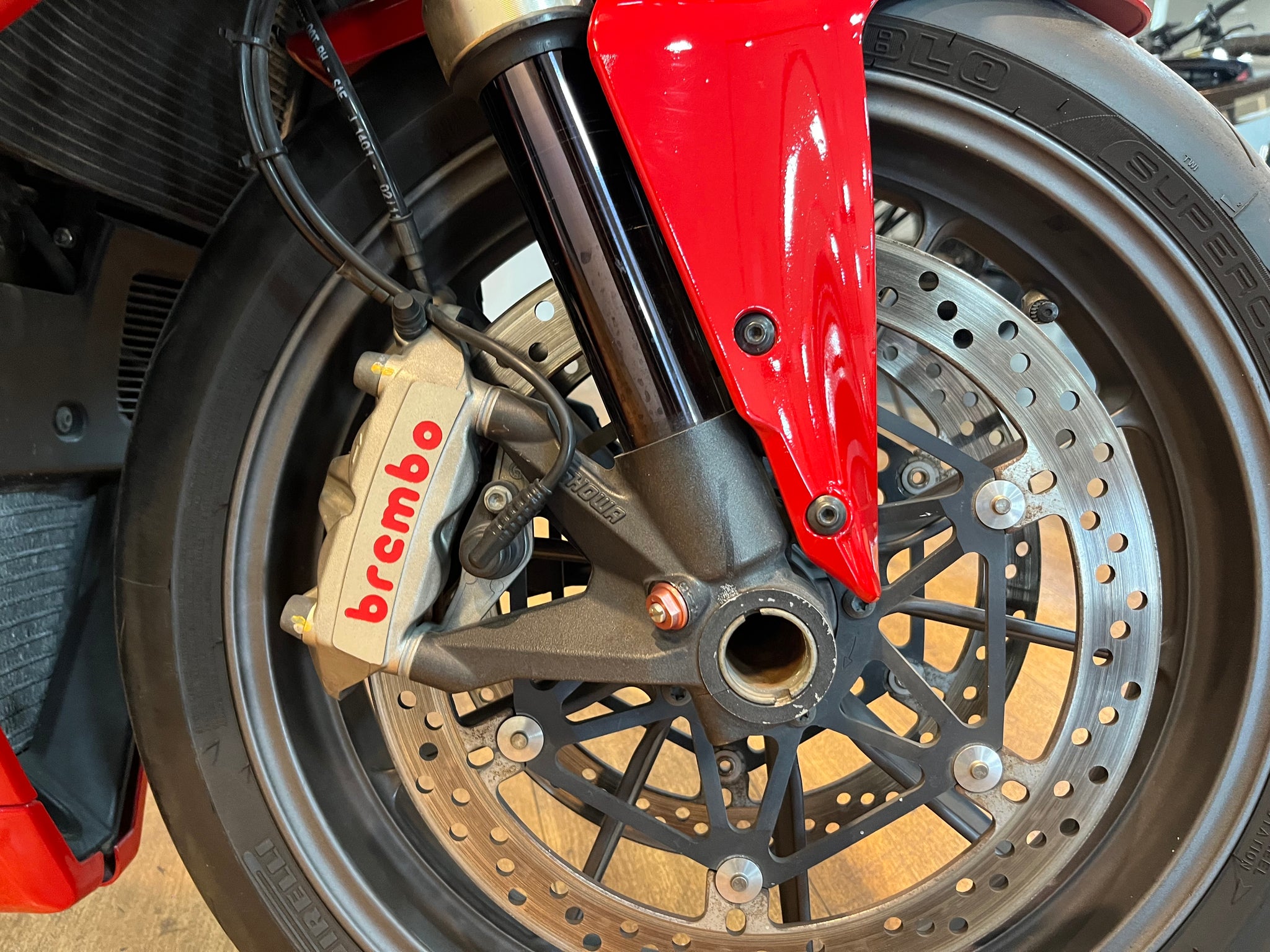

| Front brake | Double disc, 330 mm, 4-piston radial calipers Brembo monobloc |
| Rear brake | Single disc, 245 mm, 2-piston caliper |
| Fuel capacity | 15,5 l / 4,09 US gal. (reserve – 4,0 l) 18,0 l / 4,75 US gal. (reserve – 4,0 l) – Ducati 1198R Corse |
| ELECTRICAL | |
| Ignition system | Electronic type |
| Alternator | 12V-480W |
| Battery | 12V-10Ah |
| DIMENSIONS | |
| Overall length | 2100 mm / 82,6 in |
| Overall width | 730 mm / 28,7 in 758 mm / 29,8 in – Ducati 1198R Corse |
| Overall height | 1110 mm / 43,7 in 1100 mm / 43,3 in – Ducati 1198R Corse |
| Seat height | 875 mm / 34,4 in (handlebar height) 865 mm / 34,0 in (handlebar height) – Ducati 1198R Corse |
| Wheelbase | 1430 mm / 56,3 in |
| Ground clearance | 120 mm / 4,7 in |
| Dry weight | 171 kg / 377 lbs (without fluids and battery) – Ducati 1198 |
