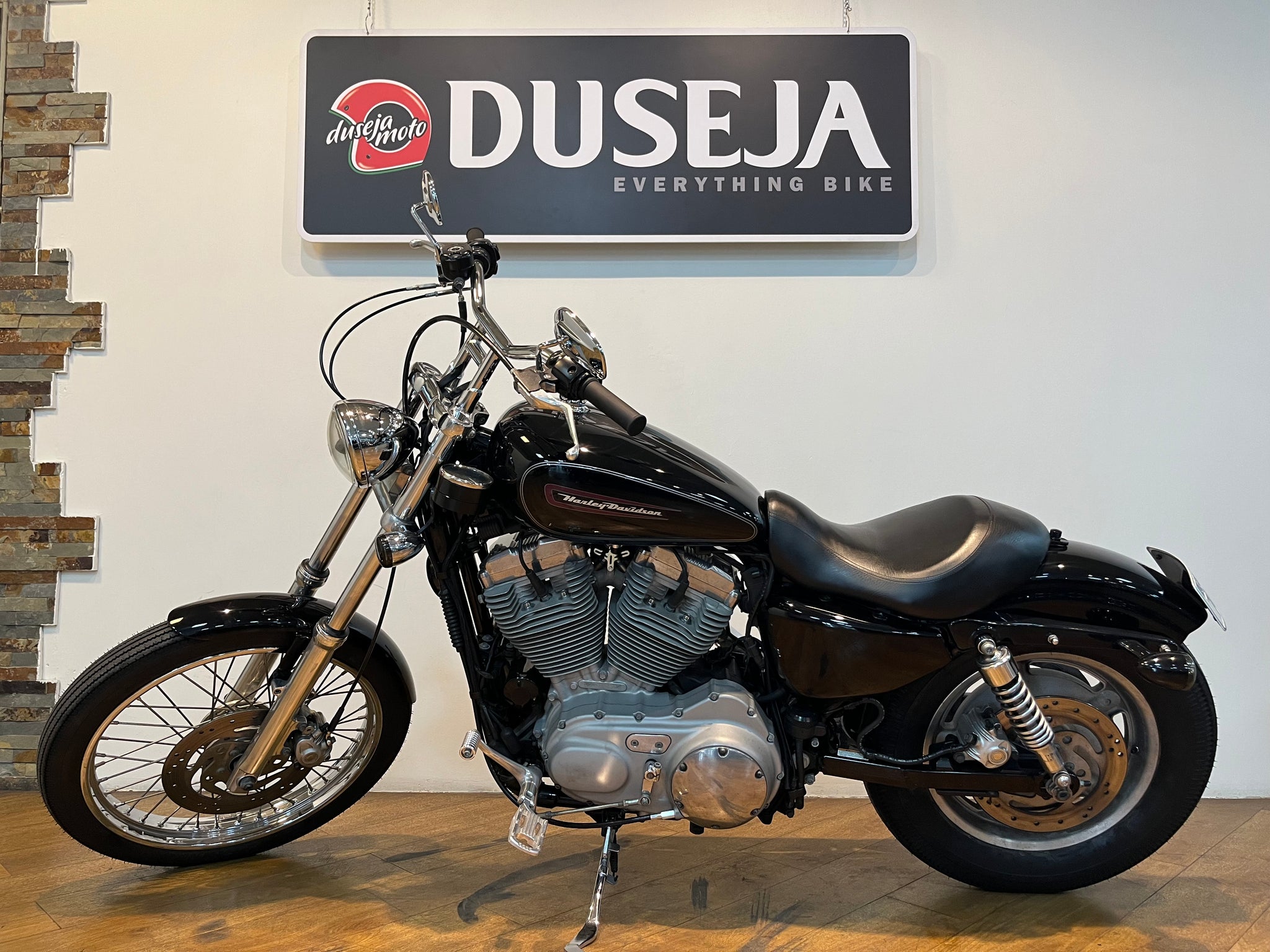

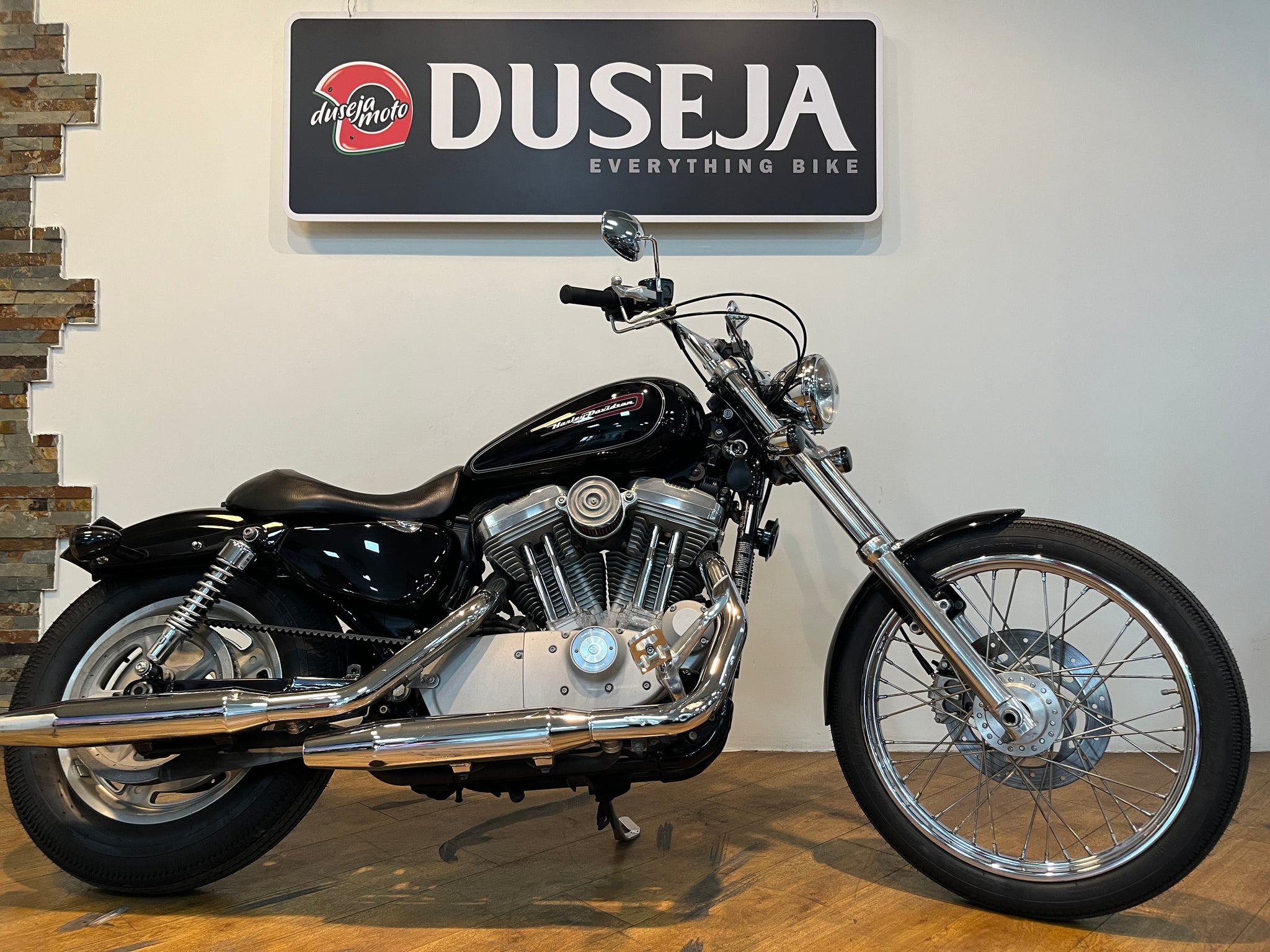

This HD Sportster 883 is one of a kind. Not only has it been tastefuly personalised by the owner , but it also one of the most meticulously maintained and detailed sportster ever.

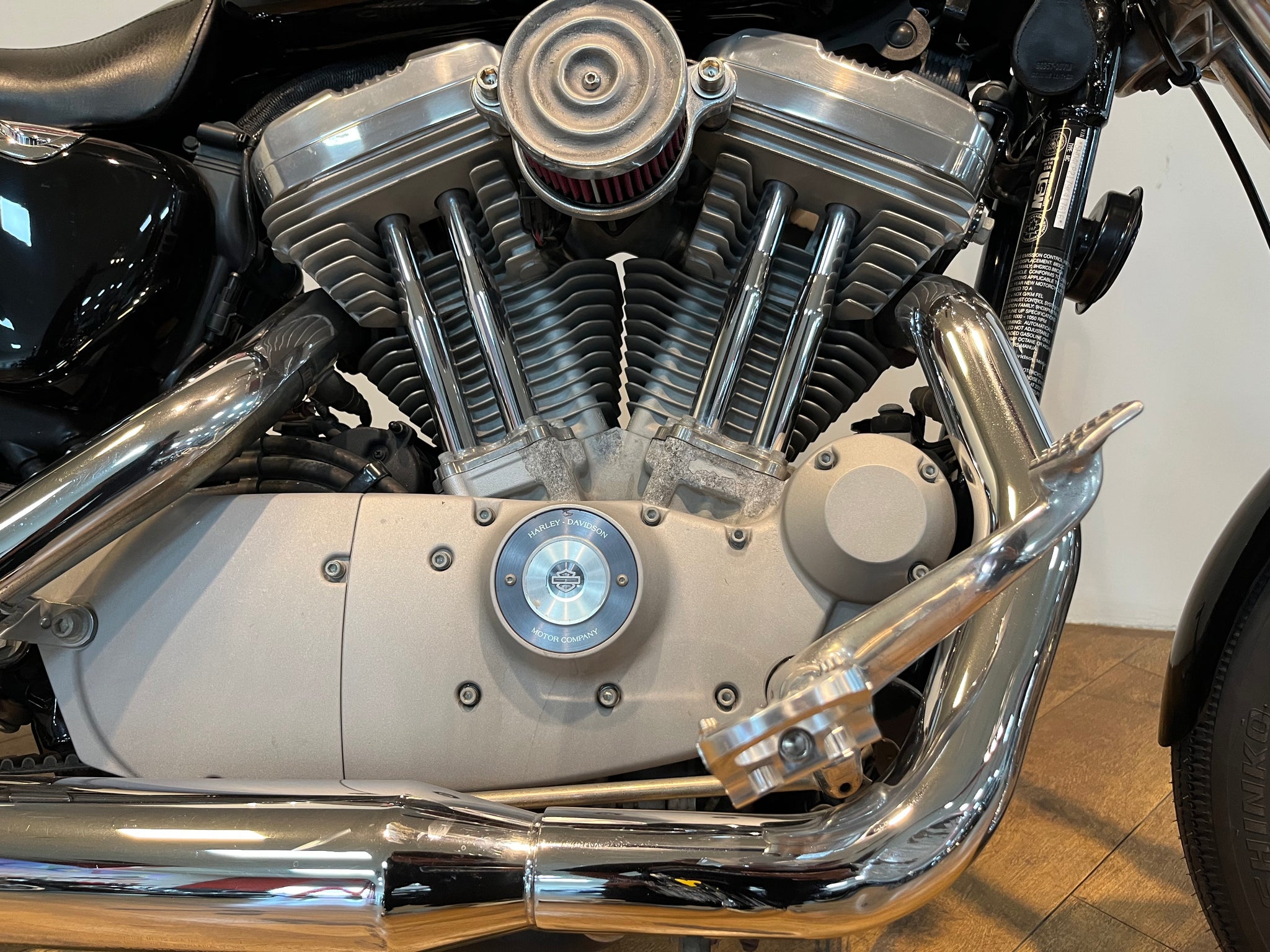

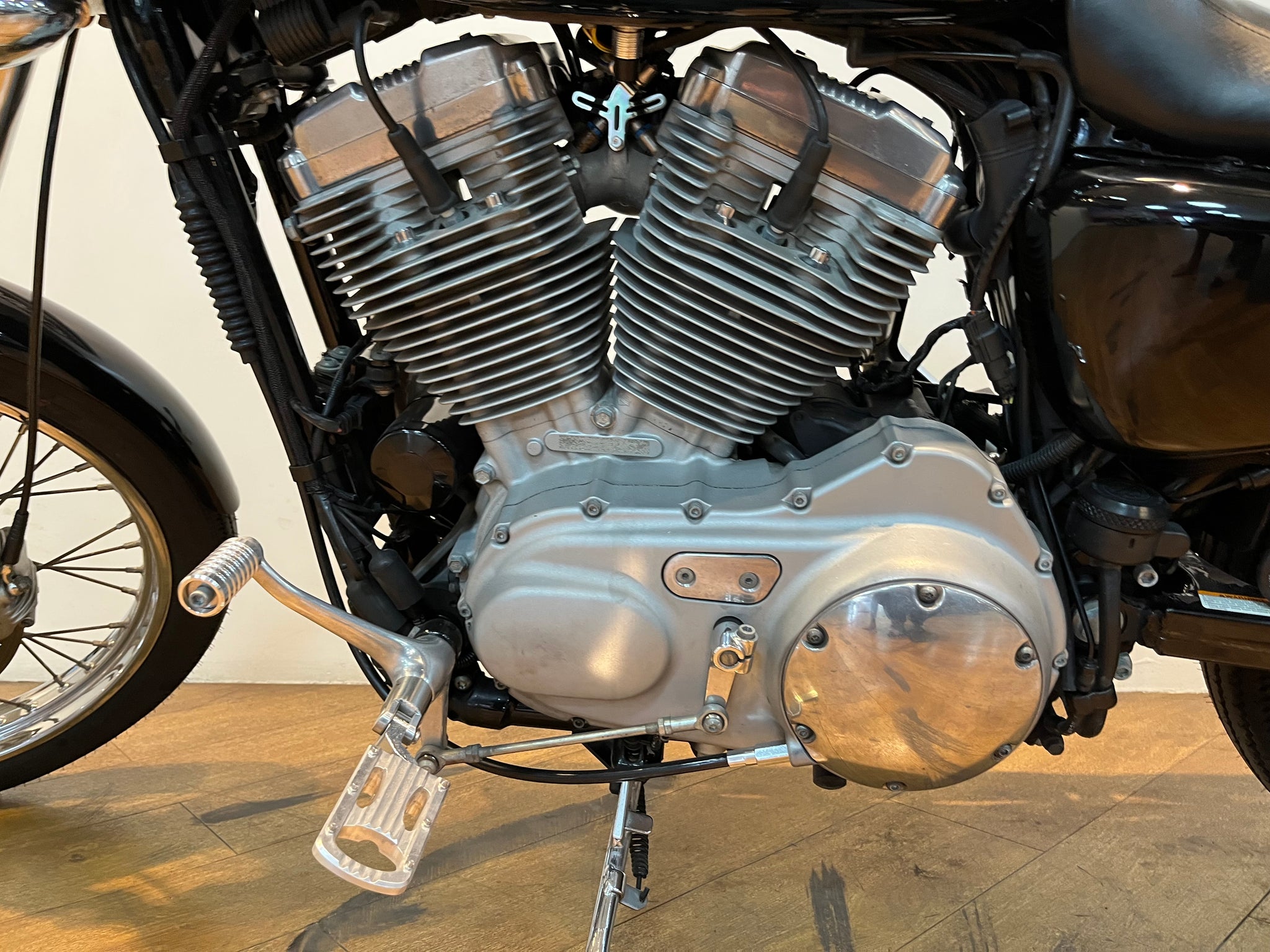

Engine
Engine3 Air-cooled, Evolution®
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3 in. x 3.81 in. (76.20 mm x 96.77 mm)
Displacement3 53.86 cu. in. (883 cu. cm)
Compression Ratio 8.9:1
Fuel System9 Electronic Sequential Port Fuel Injection
(ESPFI)

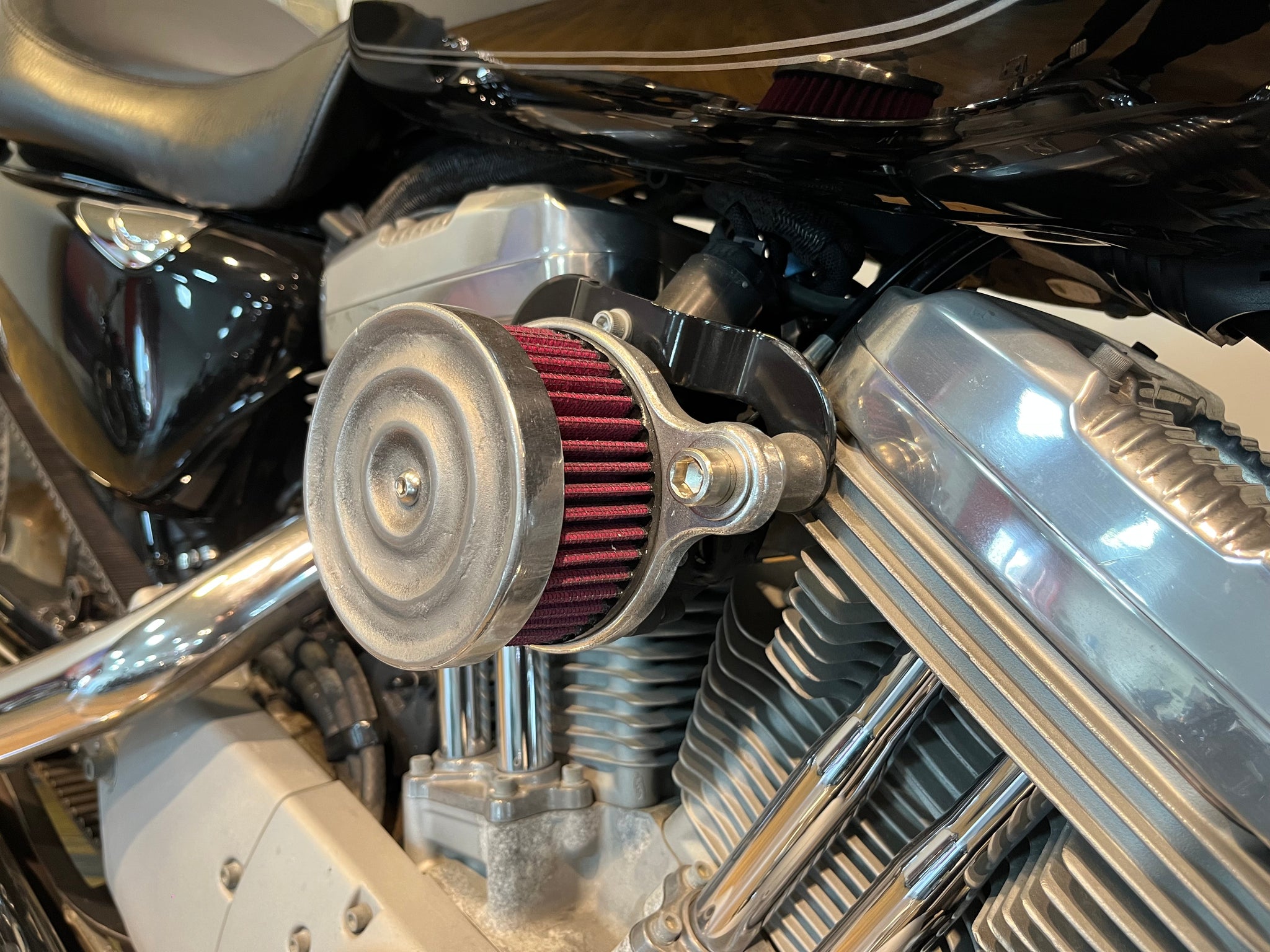

Air Cleaner Paper cartridge type
Lubrication System Dry-sump
Drivetrain
Primary Drive Chain, 57/34 ratio
Final Drive Belt, 68/28 ratio
Clutch 9-plate, wet
Transmission 5-speed
Gear Ratios (overall): U.S. HDI JPN
• 1st 10.782 10.782 10.782
• 2nd 7.702 7.702 7.702
• 3rd 5.728 5.728 5.728
• 4th 4.748 4.748 4.748
• 5th 4.071 4.071 4.071
Chassis
Frame Mild steel, tubular frame; circularsections; cast junctions

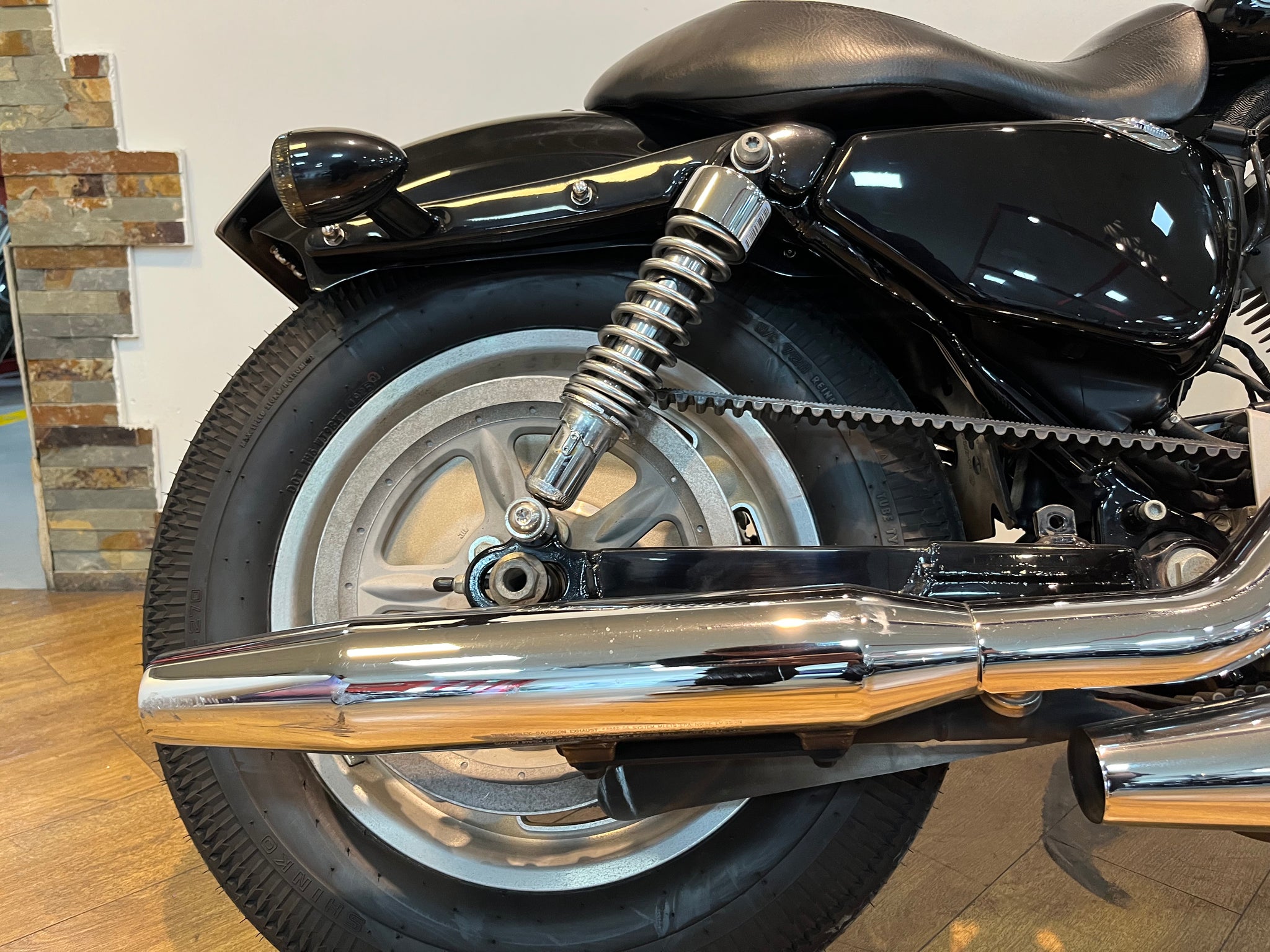

Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded

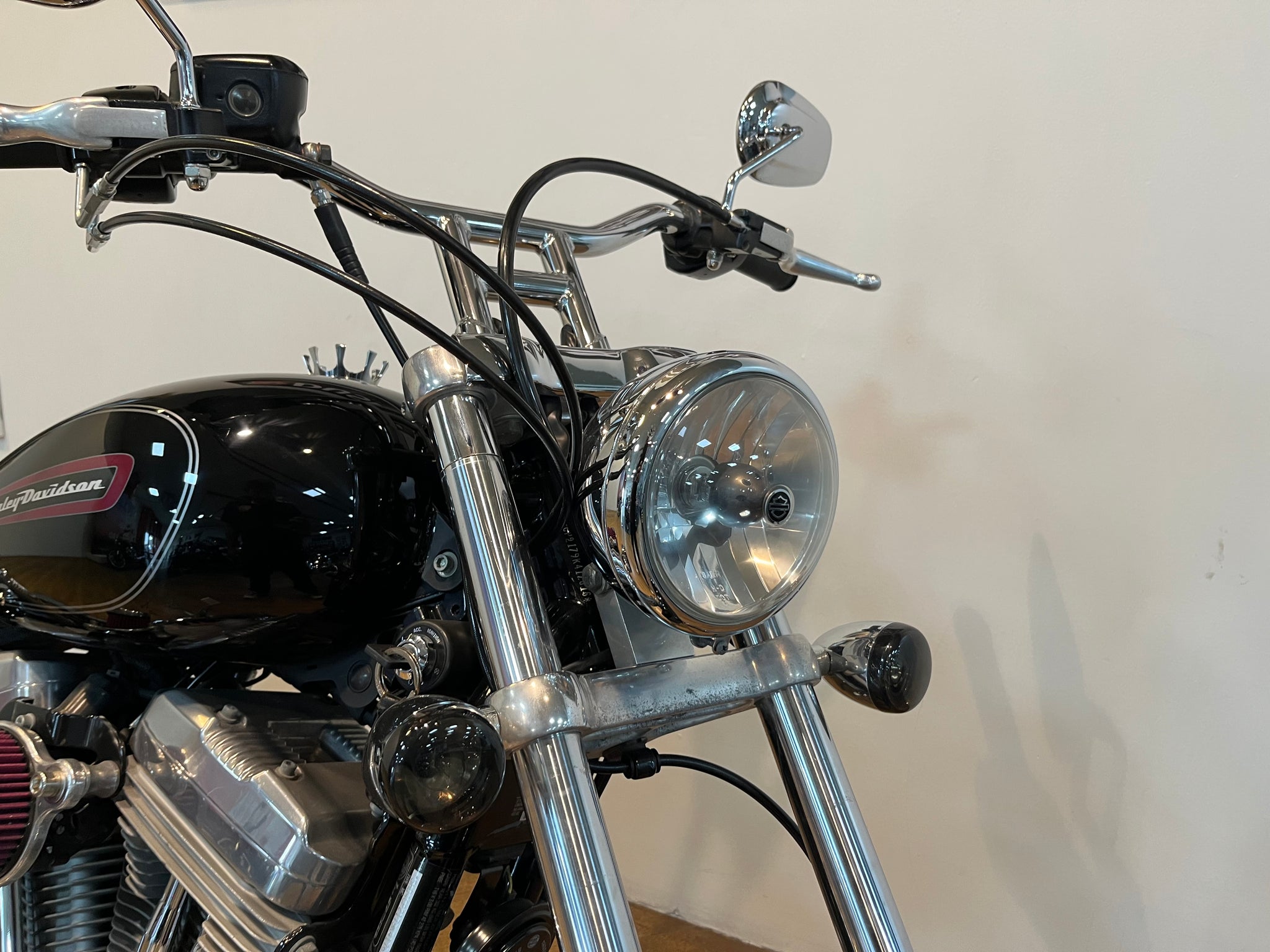

Front Forks 39 mm
Rear Shocks Coil-over; preload dual-adjustable
Wheels4: Chrome, Laced Steel
• Front
21 in. x 2.15 in. (533.40 mm x 54.61 mm)
Silver, Slotted Disc Cast Aluminum
• Rear
16 in. x 3 in. (406.40 mm x 76.20 mm)

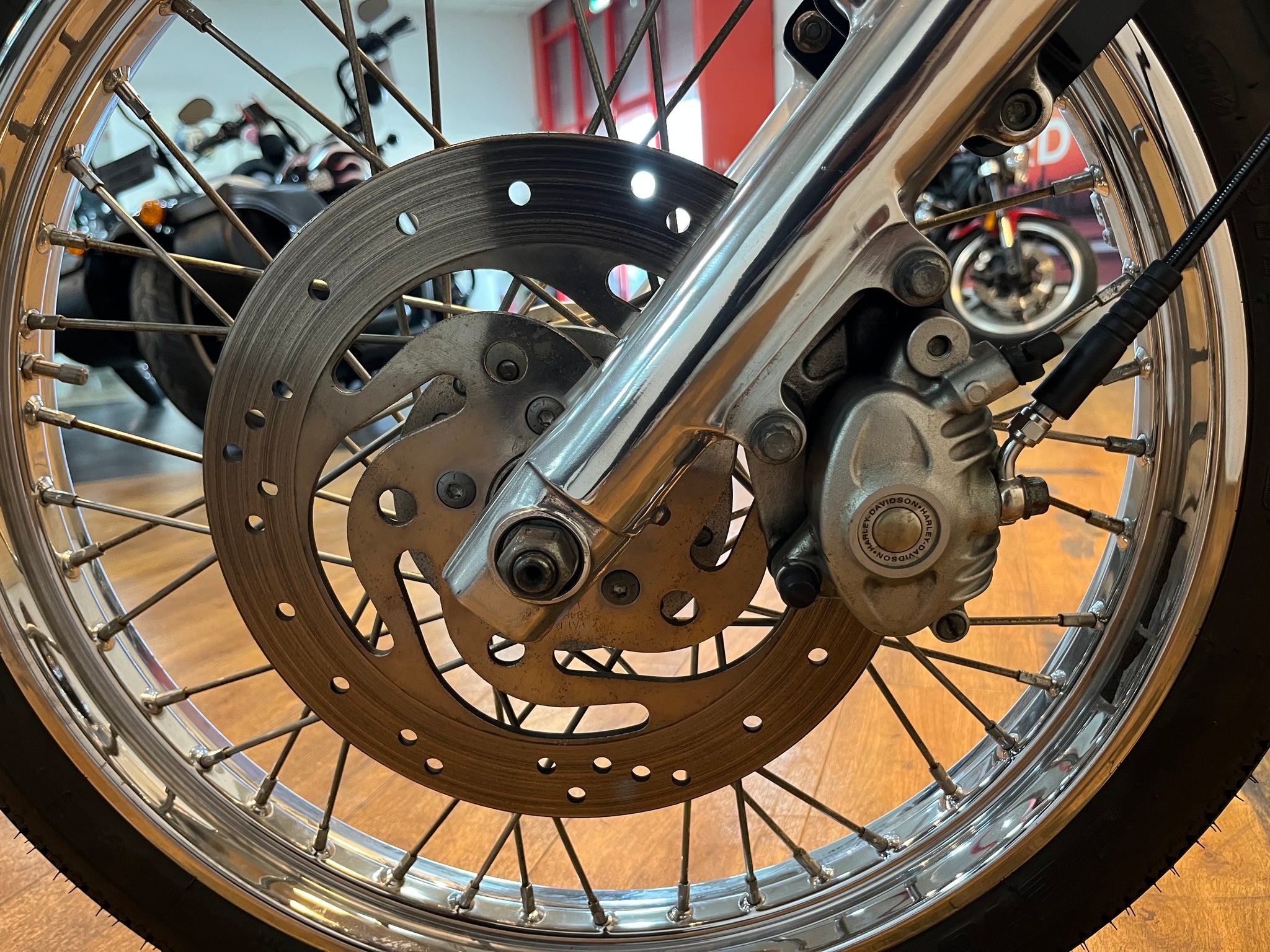

Brakes:
• Caliper Type Dual-piston front, single-piston rear
• Rotor Type Patented, uniform expansion rotors
(diameter x width):
• Front 11.50 in. x .20 in. (292.10 mm x 5.08 mm)
• Rear 11.50 in. x .23 in. (292.10 mm x 5.84 mm)
Suspension Travel:
• Front Wheel 5.69 in. (144.53 mm)
• Rear Wheel 2.12 in. (53.85 mm)
