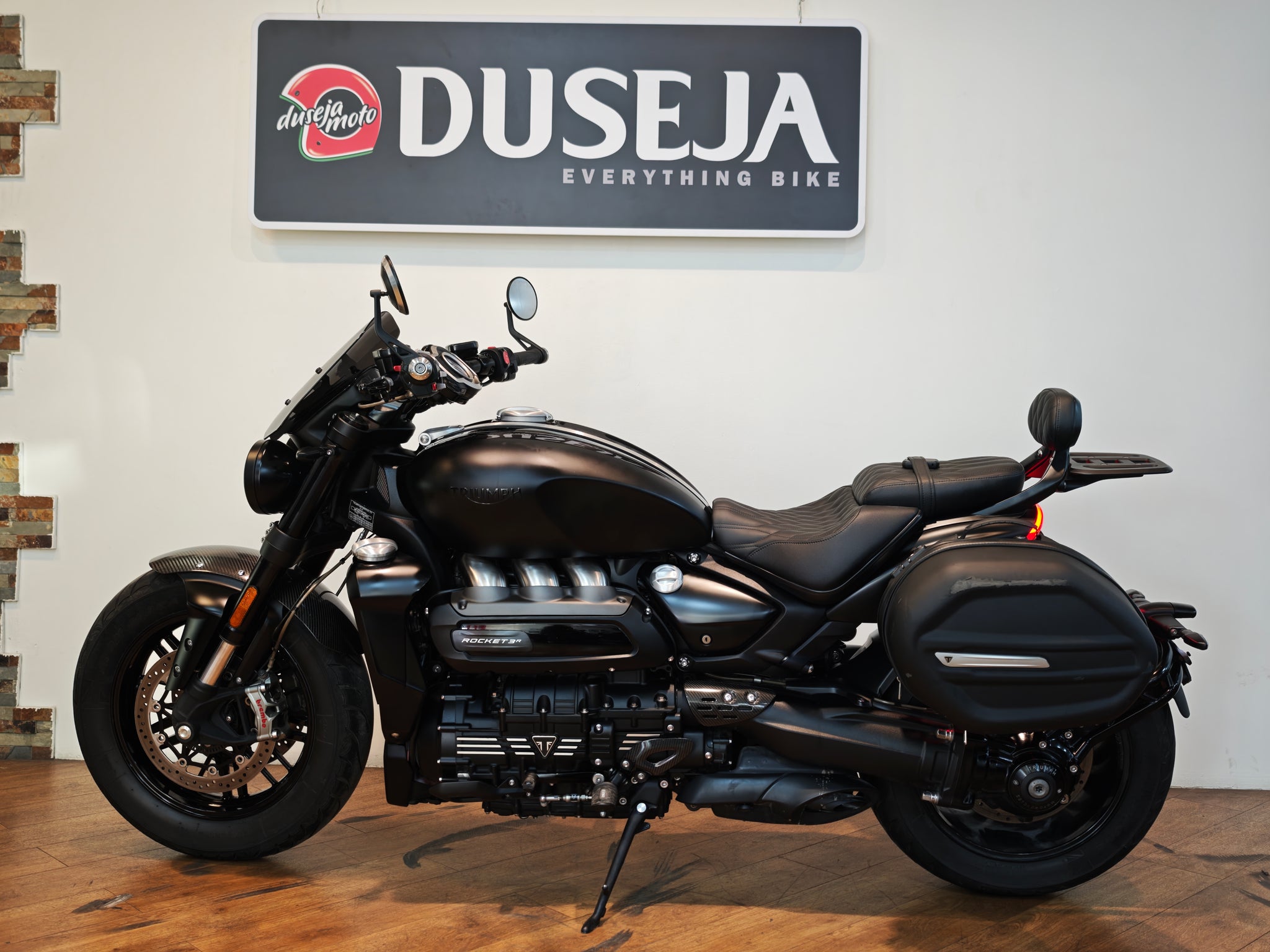

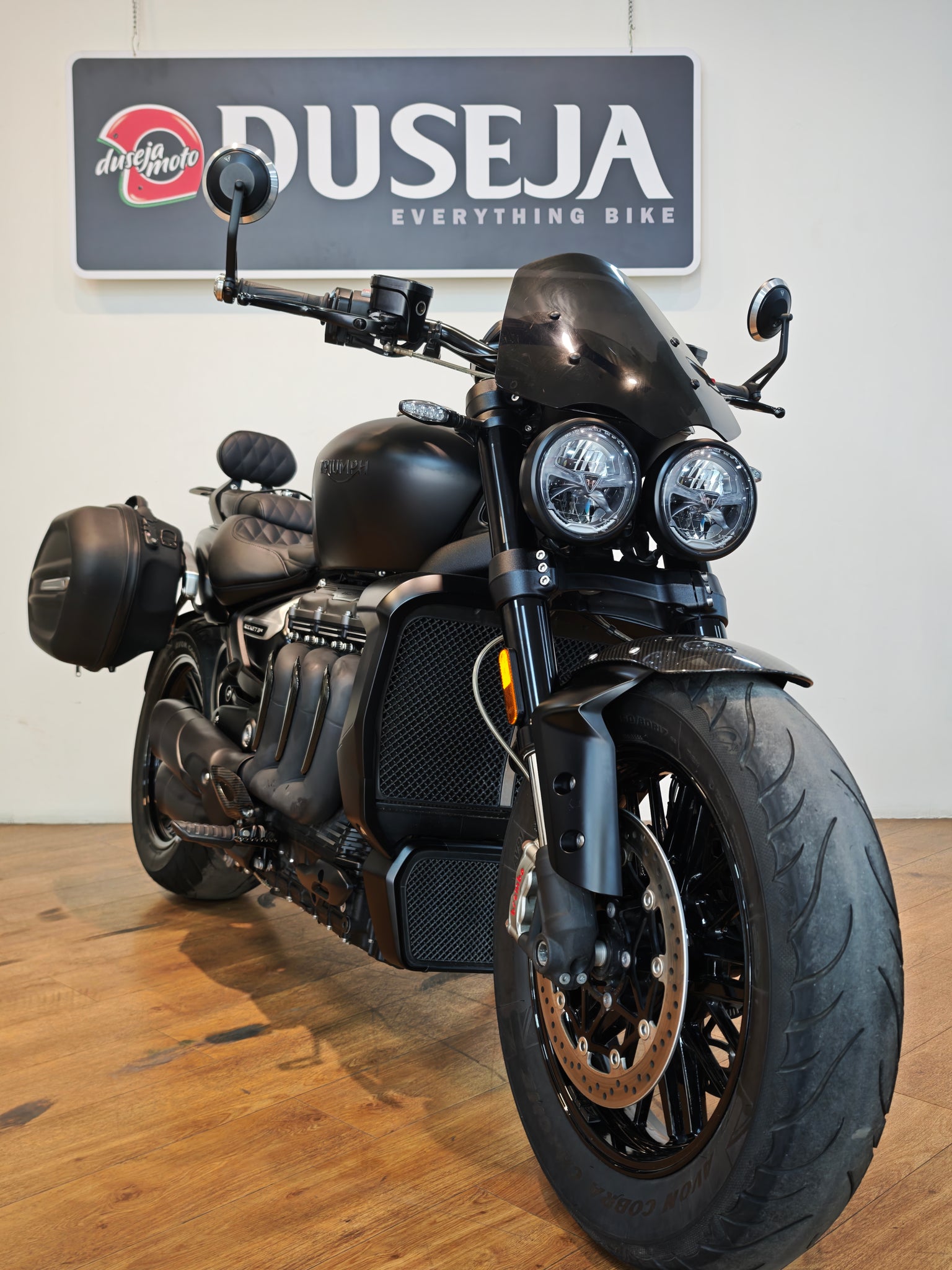

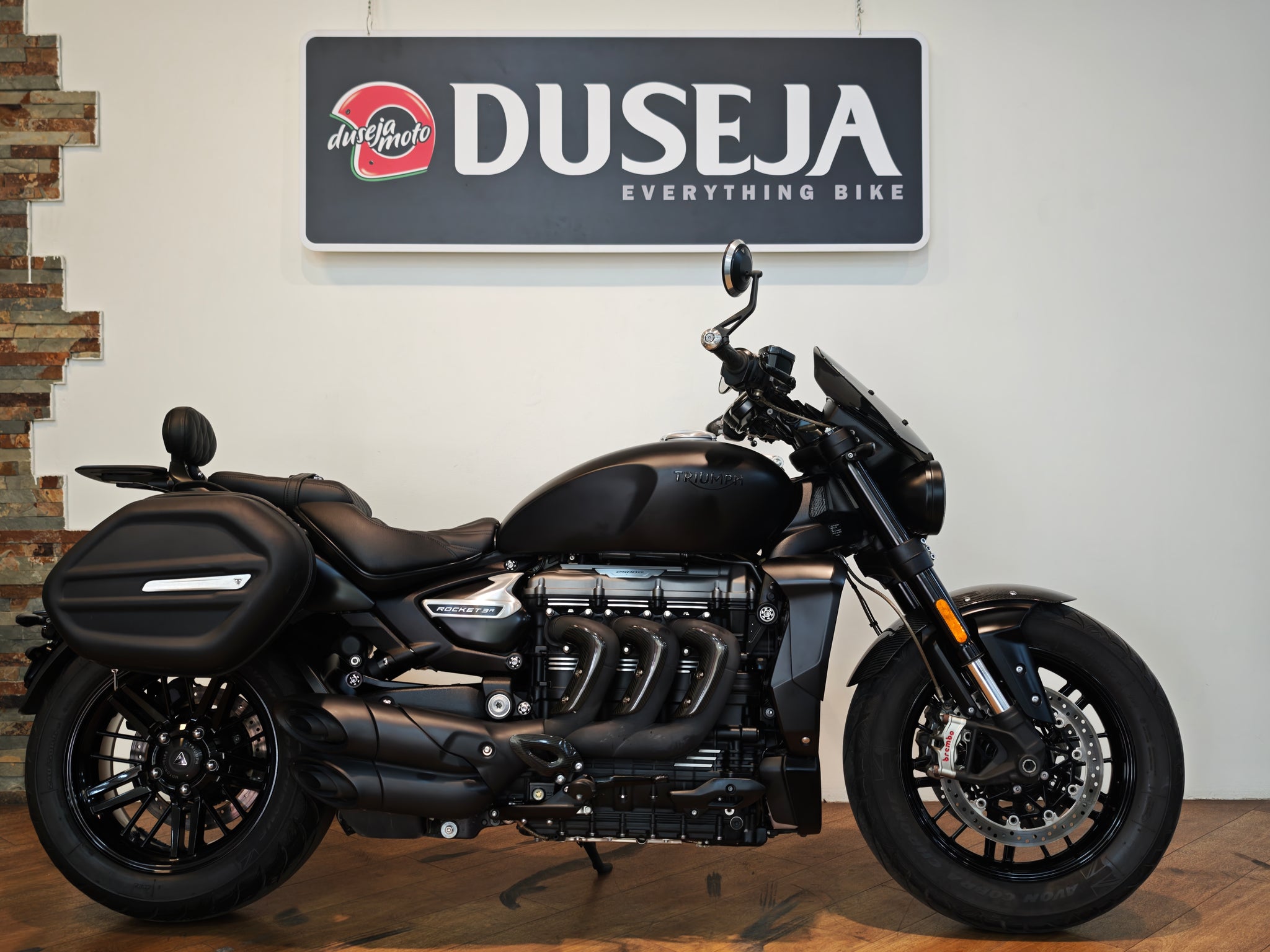

TRIUMPH ROCKET 3 R BLACK

Make Model: Triumph Rocket 3 R Black
Year: 2022

Km- 13406

Category: Muscle Roadster / Power Cruiser
Production: Limited Edition – 1,000 Units Worldwide
Colour: Matt Jet Black / Jet Black

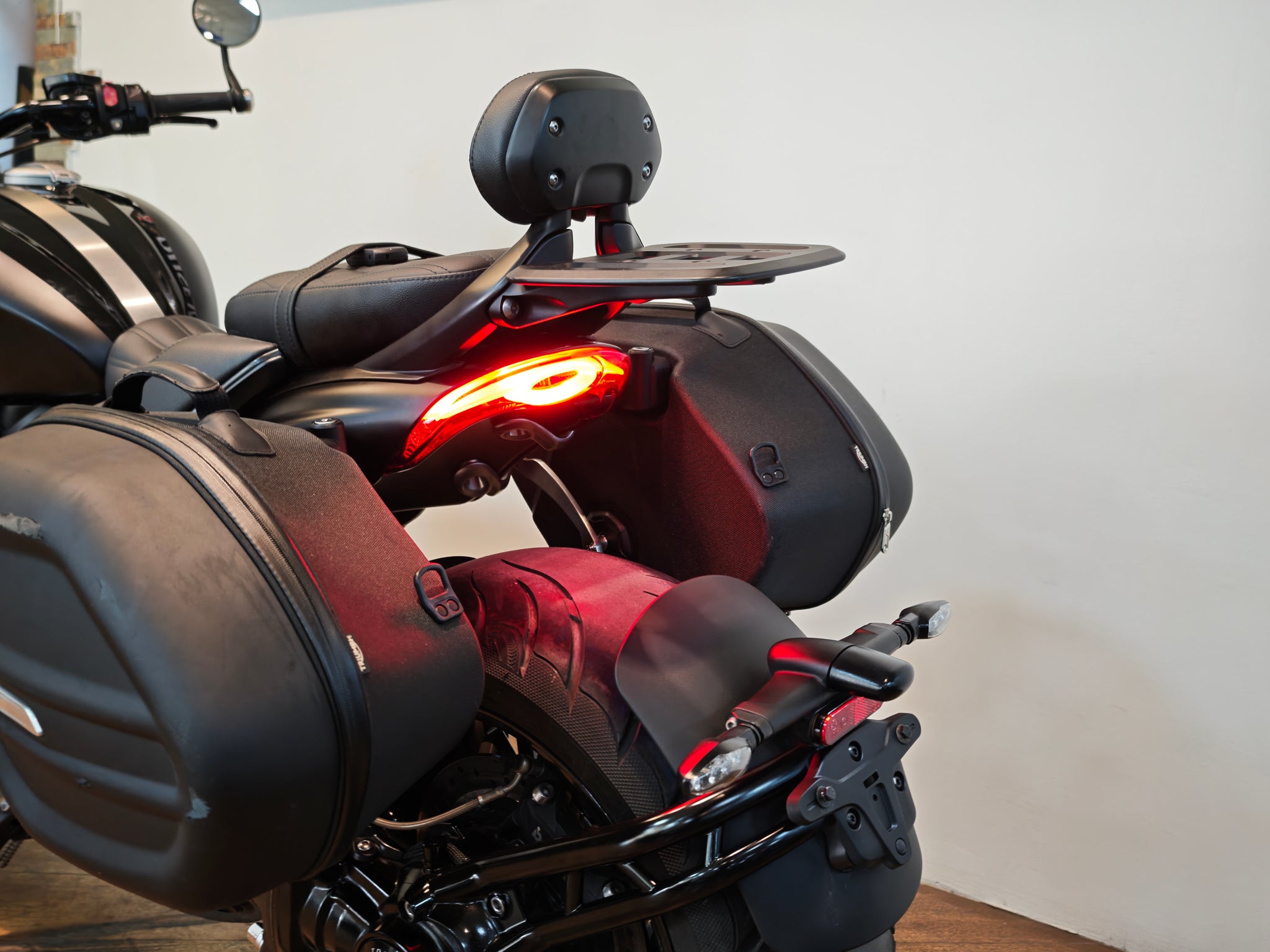

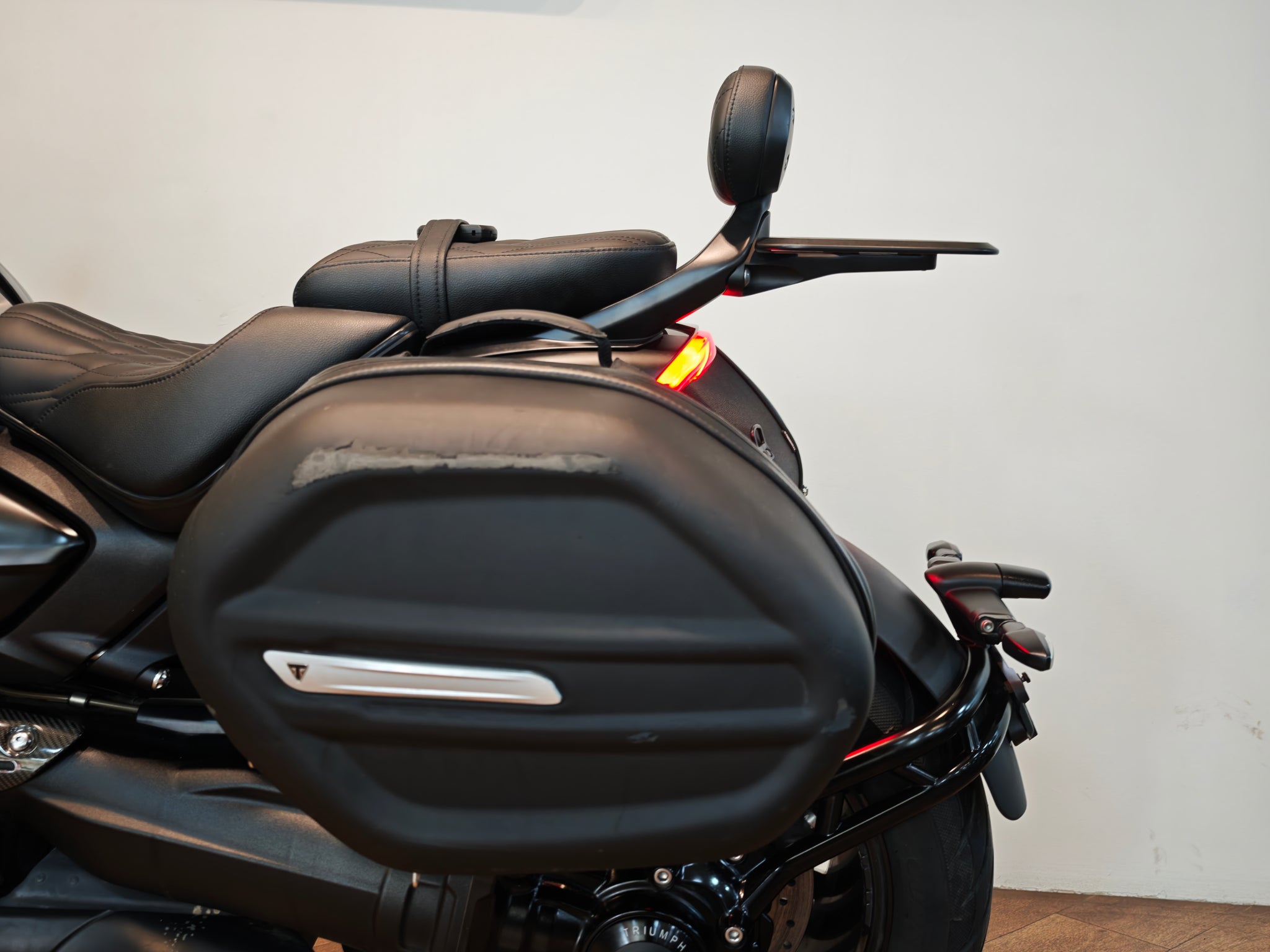

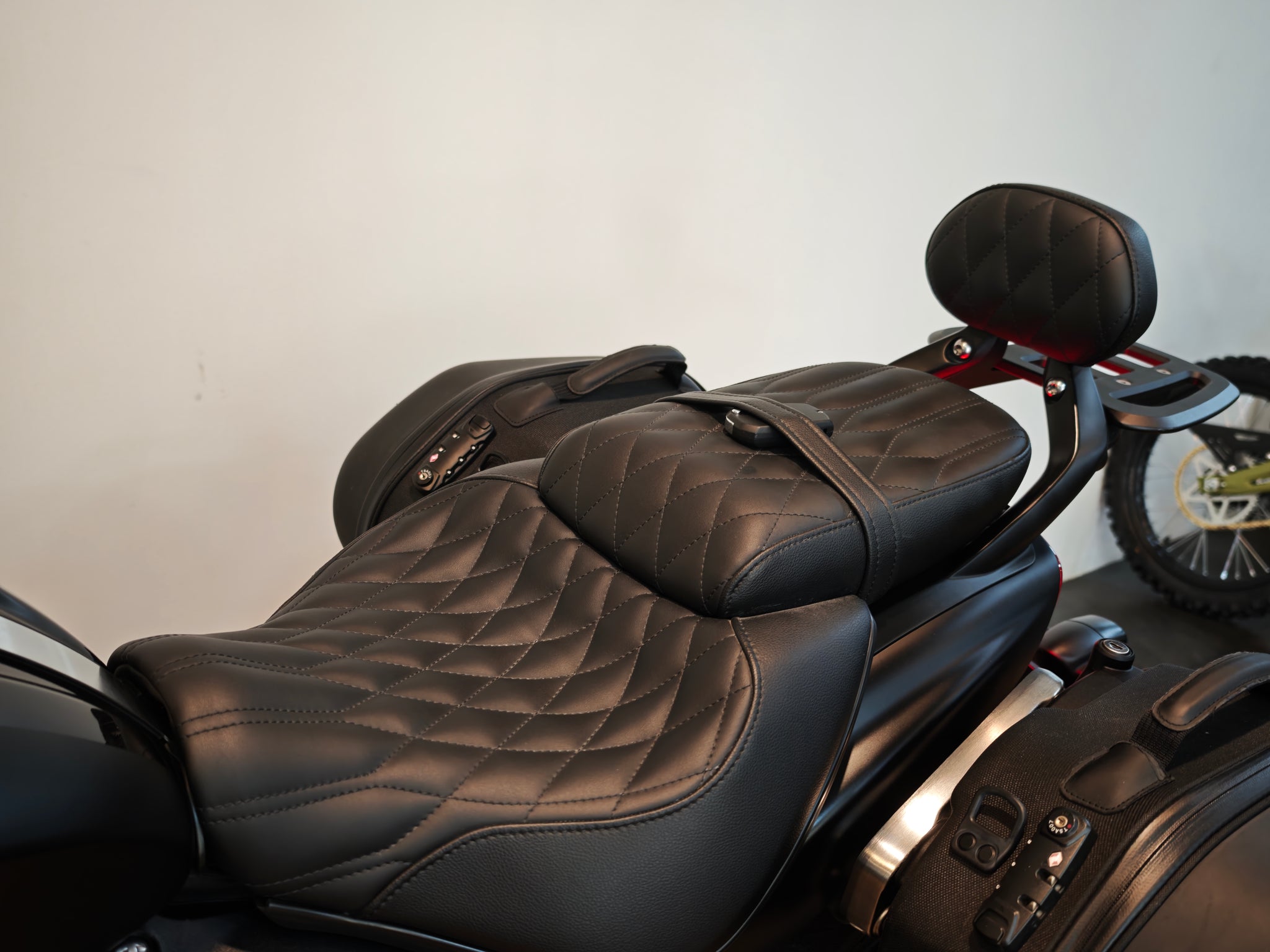

Additional Accessories- Carbon Fiber Exhaust heat shields , Carbon Fiber front fender, Triumpjh OEM detacheable saddlebags, Triumph OEM pillion backrest, Flyscreen, Custom stitched Rider and Pillion seat.

ENGINE

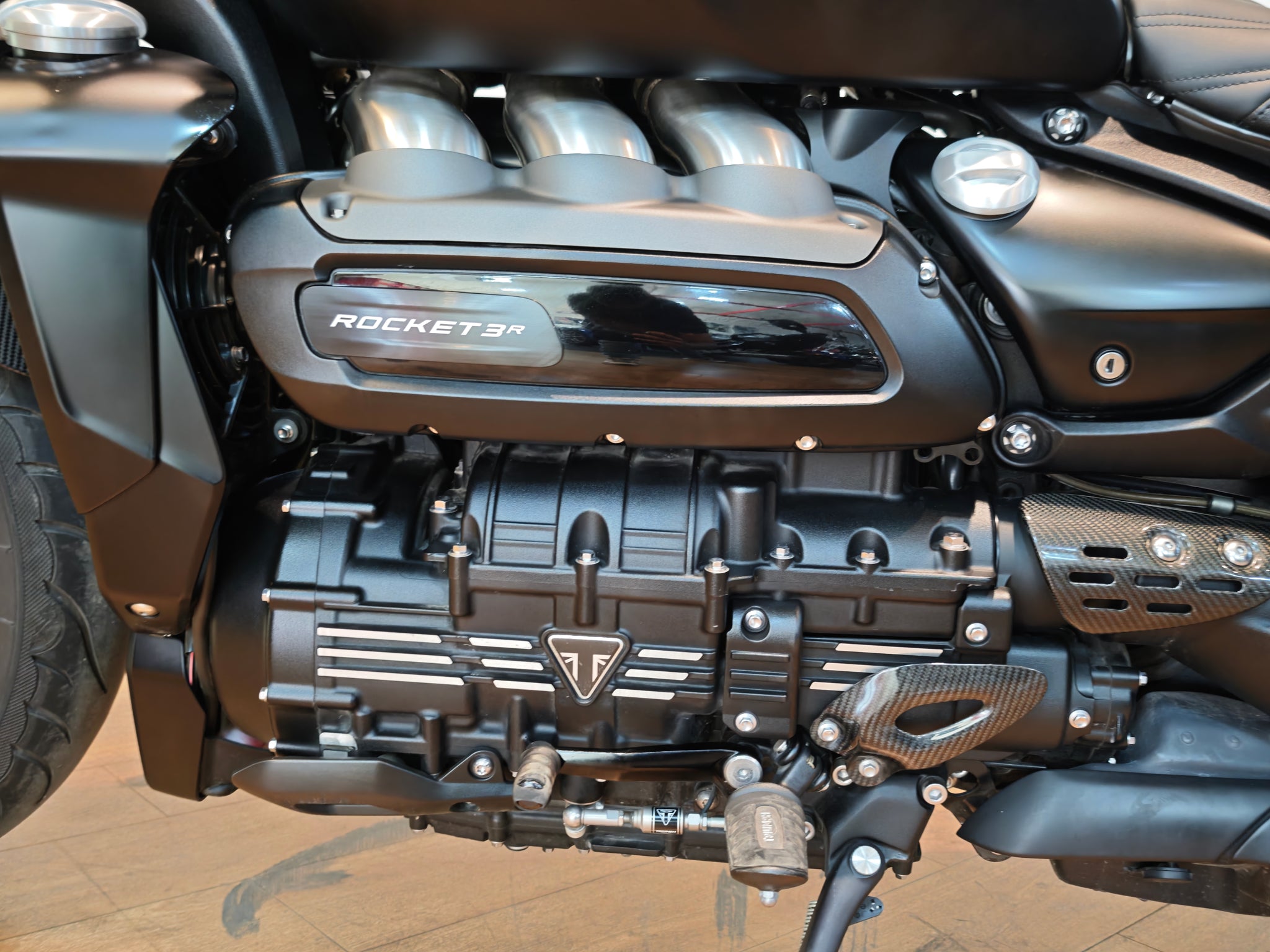

Engine Type: Four-stroke, longitudinal inline three-cylinder, DOHC, 12 valves
Cooling System: Liquid cooled
Capacity: 2,458 cc / 150 cu-in
Bore x Stroke: 110.2 x 85.9 mm
Compression Ratio: 10.8:1
Fuel System: Ride-by-Wire electronic fuel injection
Ignition: Digital inductive ignition via electronic engine management
Lubrication: Wet sump
Starting: Electric
Emission Standard: Euro 5

Maximum Power: 123 kW / 165 bhp / 167 PS @ 6,000 rpm
Maximum Torque: 221 Nm / 163 lb-ft @ 4,000 rpm

TRANSMISSION

Clutch: Wet, multi-plate, hydraulically operated, torque-assist
Transmission: 6-speed, helical-cut gearbox
Final Drive: Shaft drive with bevel box

EXHAUST

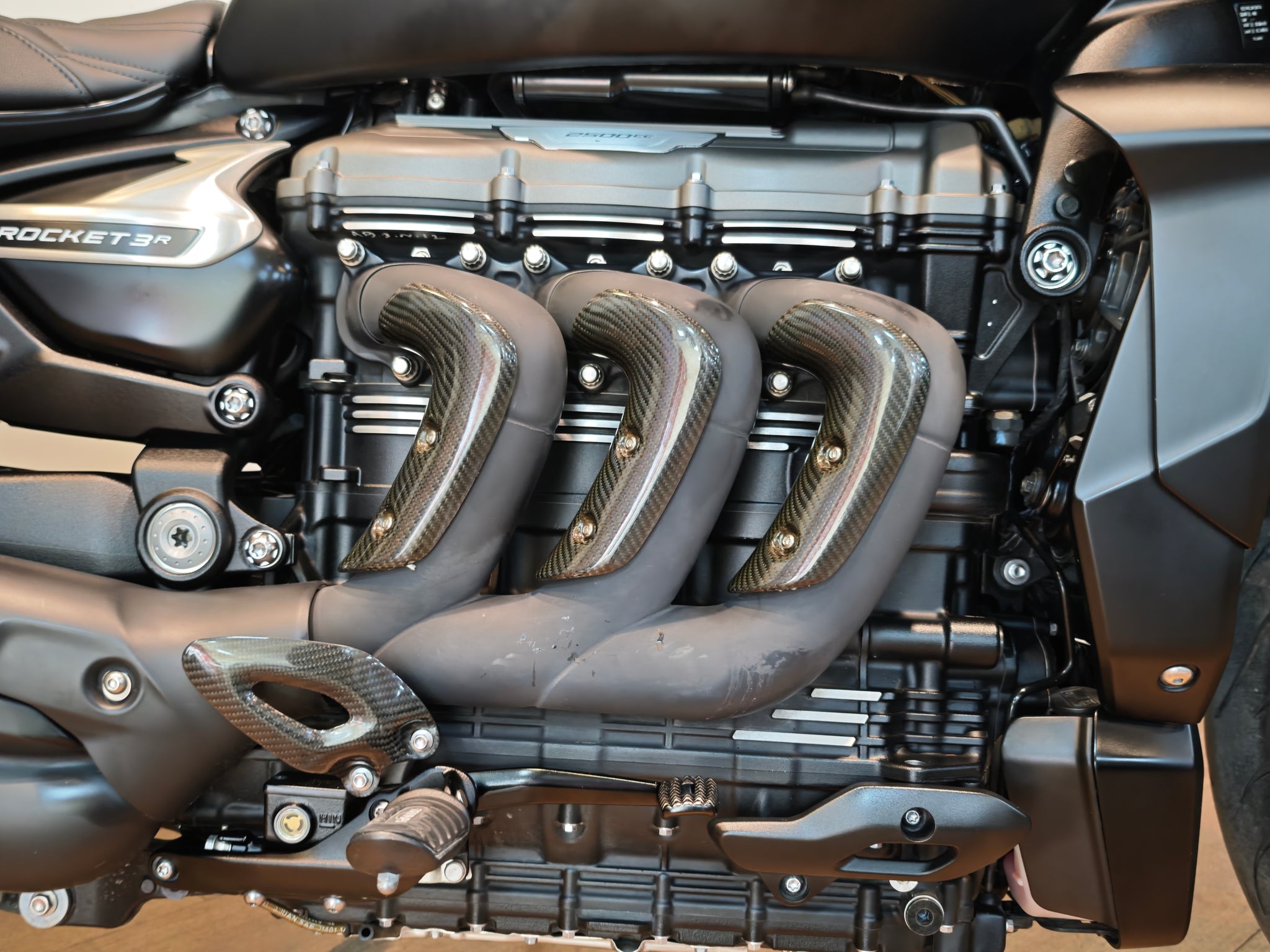

System: Hydroformed 3-into-1 header system with three-exit silencer
Black Edition Finish: Black-painted headers, heat shields and exhaust end caps

FRAME & CHASSIS

Frame: Full aluminium frame
Swingarm: Single-sided cast aluminium
Rake: 27.9°
Trail: 134.9 mm / 5.3 in

FRONT SUSPENSION

Type: Showa 47 mm upside-down 1+1 cartridge forks
Adjustment: Compression and rebound damping
Front Wheel Travel: 120 mm / 4.7 in

REAR SUSPENSION

Type: Showa piggyback reservoir RSU monoshock
Adjustment: Fully adjustable with remote hydraulic preload adjustment
Rear Wheel Travel: 107 mm / 4.2 in

FRONT BRAKES

Discs: Dual 320 mm floating discs
Calipers: Brembo M4.30 Stylema 4-piston radial monobloc calipers
ABS: Optimised Cornering ABS

REAR BRAKE

Disc: Single 300 mm disc
Caliper: Brembo M4.32 4-piston monobloc caliper
ABS: Optimised Cornering ABS

WHEELS

Front Wheel: 17 x 3.5 in cast aluminium, 20-spoke
Rear Wheel: 16 x 7.5 in cast aluminium, 20-spoke

TYRES

Front Tyre: 150/80 R17 V
Rear Tyre: 240/50 R16 V

Recommended Cold Tyre Pressure:
Front: 2.9 bar
Rear: 2.9 bar

DIMENSIONS

Overall Length: 2,365 mm / 93.1 in
Overall Width: 889 mm / 35.0 in
Overall Height: 1,065 mm / 41.9 in
Wheelbase: 1,677 mm / 66.0 in
Seat Height: 773 mm / 30.4 in

WEIGHT

Dry Weight: 291 kg / 641.5 lb

CAPACITIES

Fuel Capacity: 18 litres / 4.76 US gal

FUEL CONSUMPTION

Fuel Consumption: Approx. 6.82 L/100 km
CO₂ Emissions: 158 g/km
Emission Compliance: Euro 5

ELECTRICAL SYSTEM

Battery: YTX20CH-BS
Battery Rating: 12 V / 18.9 Ah
Alternator: 14 V / 45 A @ 3,000 rpm
Headlights: LED
Indicators: LED
Tail / Brake Light: LED
Number Plate Light: LED

INSTRUMENTATION

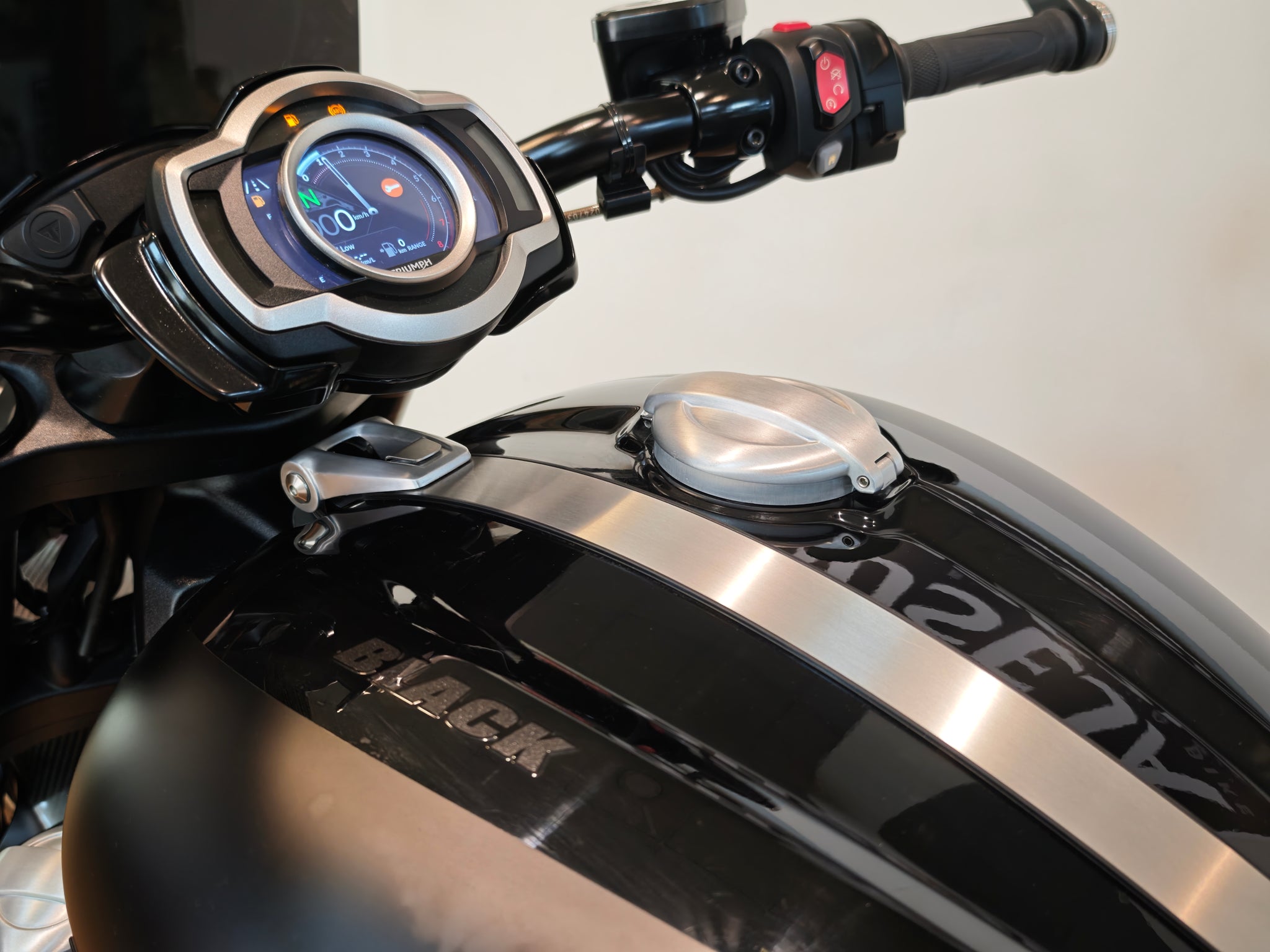

Full-colour adjustable TFT multi-function instrument display incorporating:

• Digital speedometer

• Digital tachometer

• Gear position indicator

• Fuel gauge

• Trip computer

• Service indicator

• Ambient temperature display

• Clock

• Rider mode display

RIDER ELECTRONICS

Riding Modes: Road | Rain | Sport | Rider Configurable
ABS: Optimised Cornering ABS
Traction Control: Optimised Cornering Traction Control
Cruise Control: Standard
Hill Hold Control: Standard
Keyless Ignition: Standard
Keyless Steering Lock: Standard
USB Charging: Standard

Optional equipment includes Triumph Shift Assist, tyre-pressure monitoring and the My Triumph Bluetooth connectivity system.

R BLACK LIMITED-EDITION FEATURES

The Rocket 3 R Black receives an extensive factory blacked-out treatment distinguishing it from the standard Rocket 3 R.

Special Features Include:

• Matt Jet Black / Jet Black paint scheme

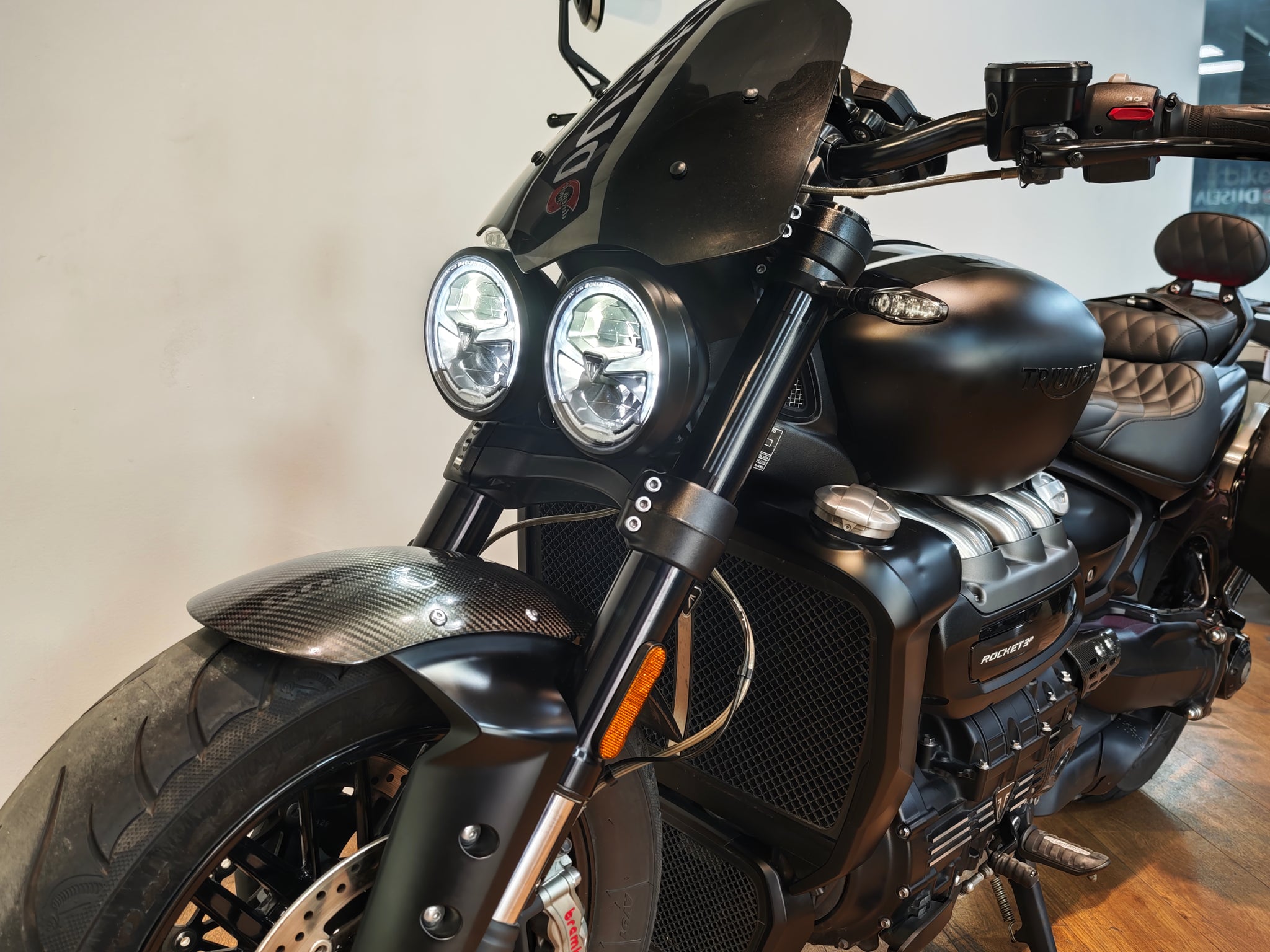

• Carbon-fibre front mudguard

• Black Triumph tank badging

• Black-painted exhaust headers

• Black exhaust heat shields and end caps

• Crinkle-black powder-coated intake cover

• Black headlight bezels

• Black radiator cowls

• Black front mudguard mounts

• Black fork lowers

• Black anodised yokes

• Black handlebar risers and clamps

• Black rider and passenger foot controls

• Black brake and clutch levers

• Black rear-frame forging

• Black swingarm guard

• Black side stand

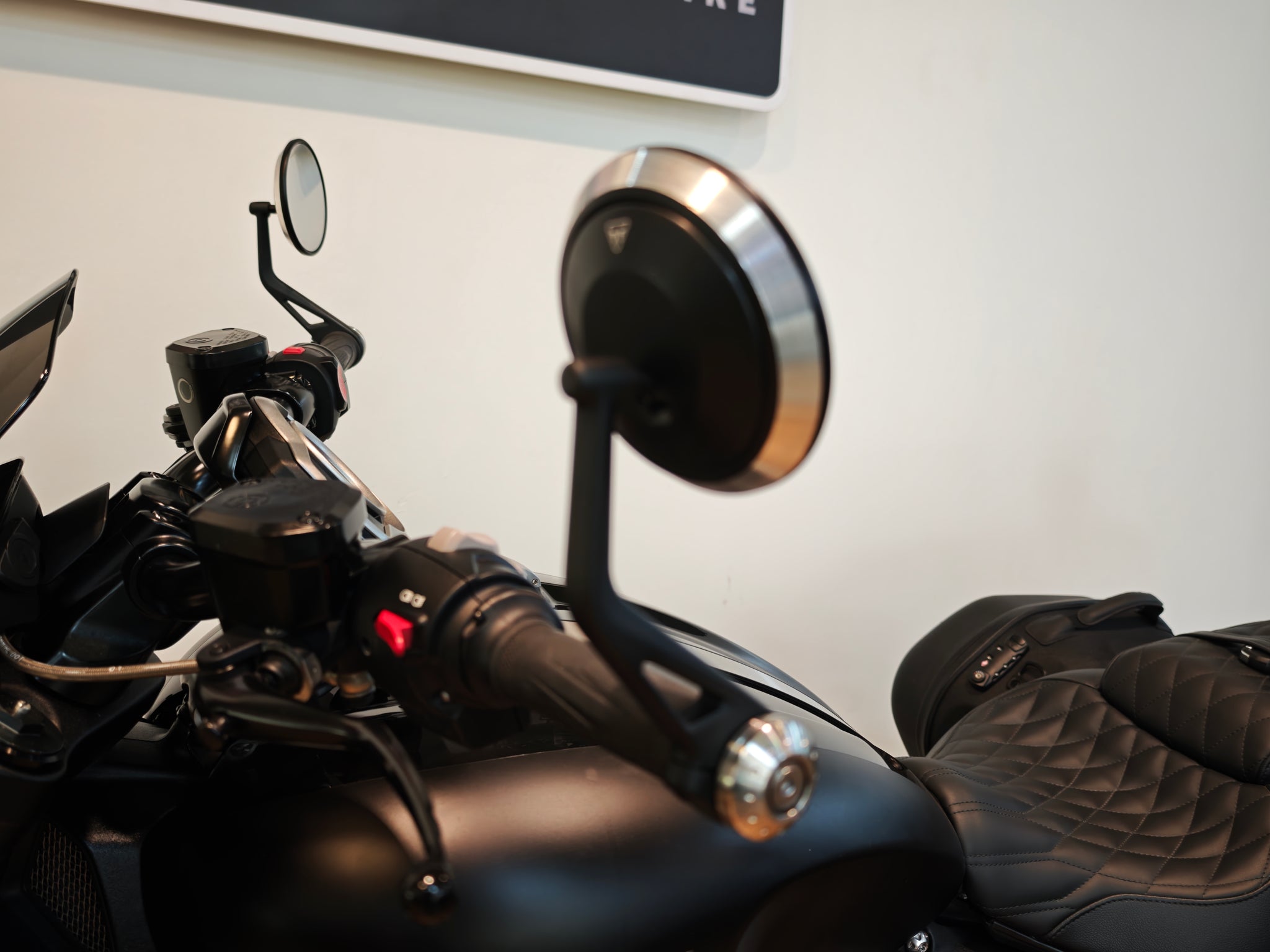

• Black anodised bar-end mirrors

• Individually numbered limited-edition certificate

PERFORMANCE

Maximum Power: 165 bhp / 167 PS @ 6,000 rpm
Maximum Torque: 221 Nm @ 4,000 rpm

0–60 mph: Approximately 2.73 seconds*

*Triumph's recorded 2.73-second 0–60 mph figure was achieved with the Rocket 3 R platform.

SUMMARY

Engine: 2,458 cc Inline Triple
Power: 165 bhp / 167 PS
Torque: 221 Nm
Gearbox: 6-Speed
Final Drive: Shaft
Front Tyre: 150/80 R17
Rear Tyre: 240/50 R16
Seat Height: 773 mm
Dry Weight: 291 kg
Fuel Capacity: 18 L
Production: 1,000 Units Worldwide
