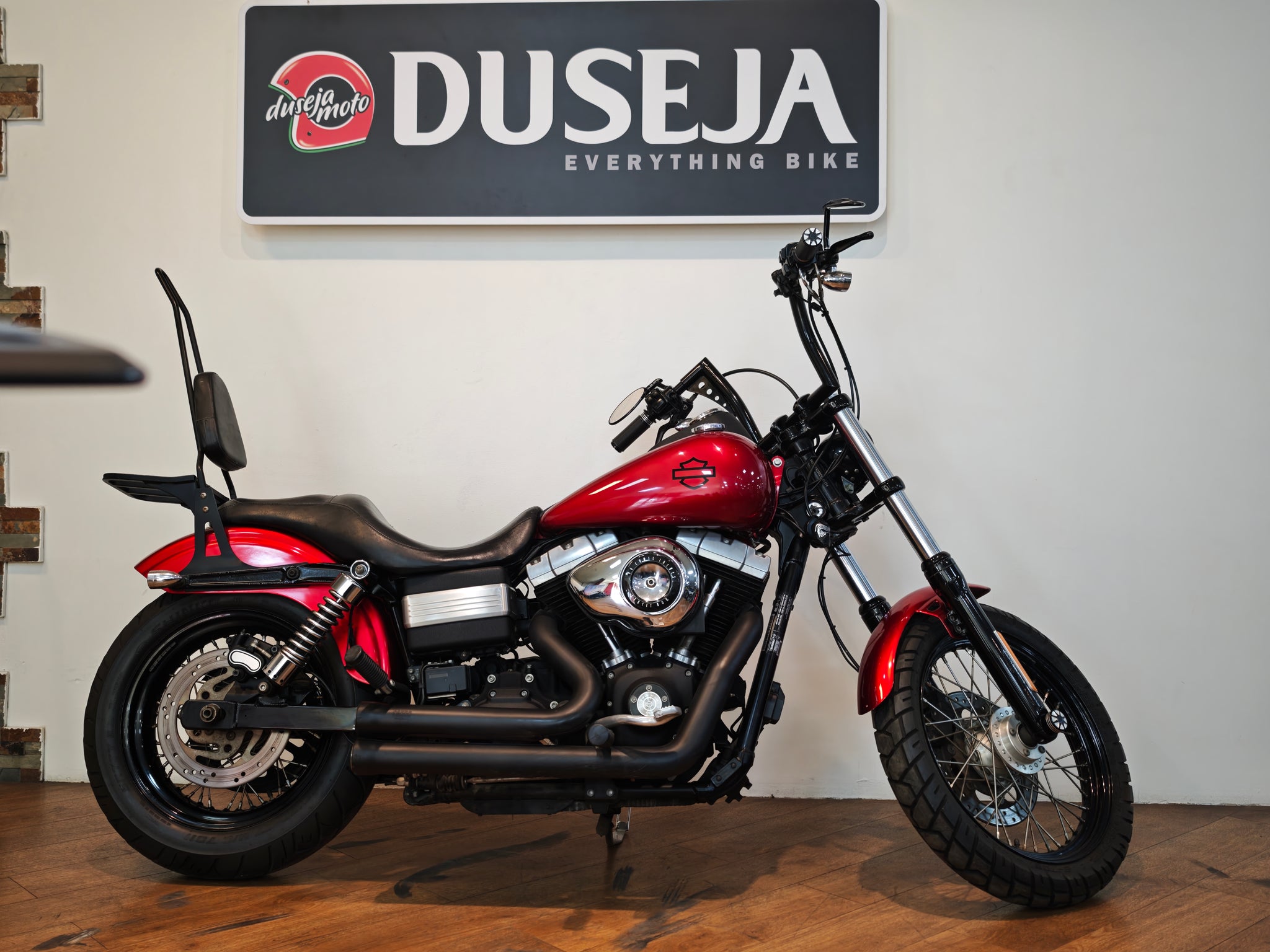

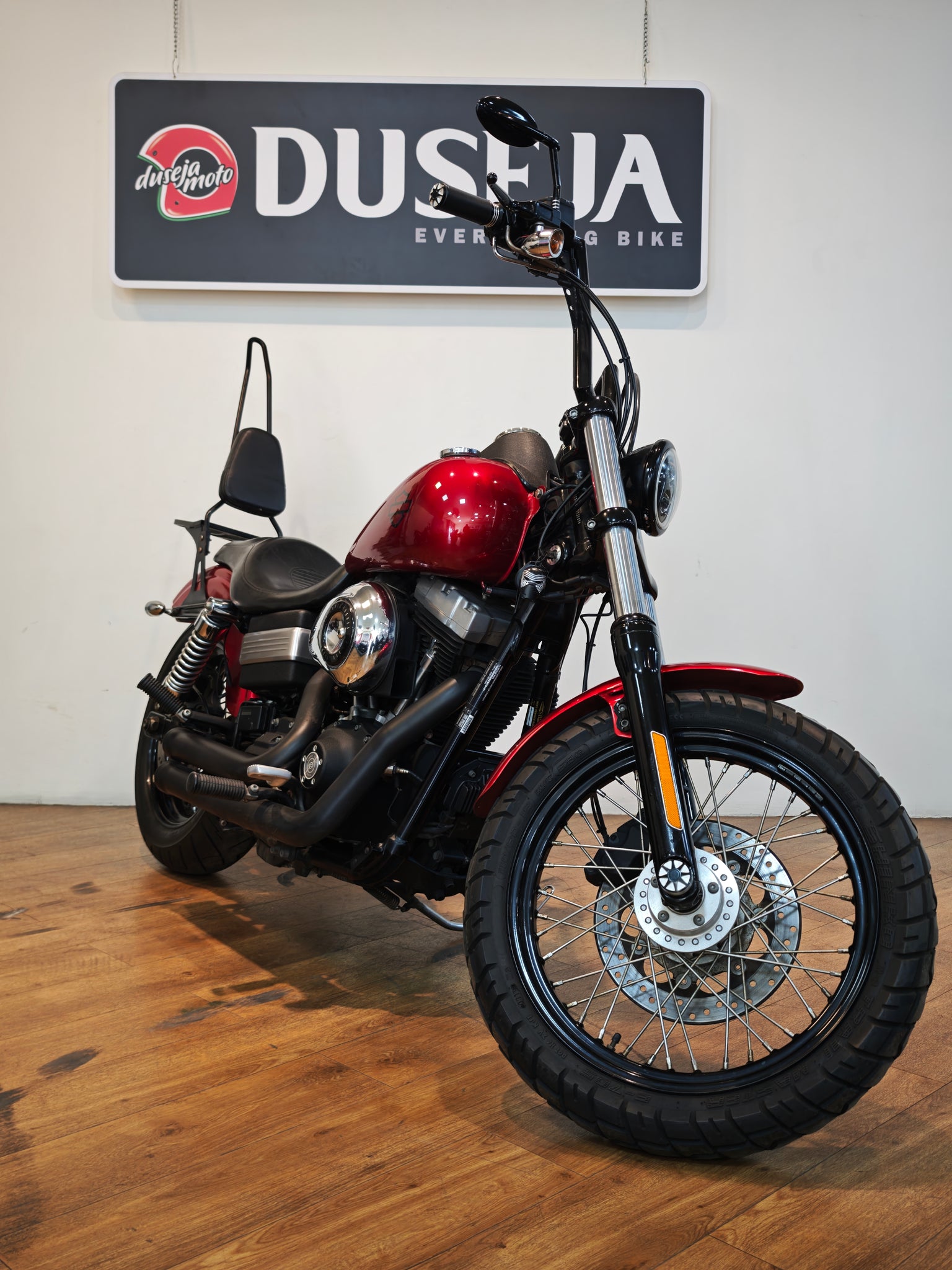

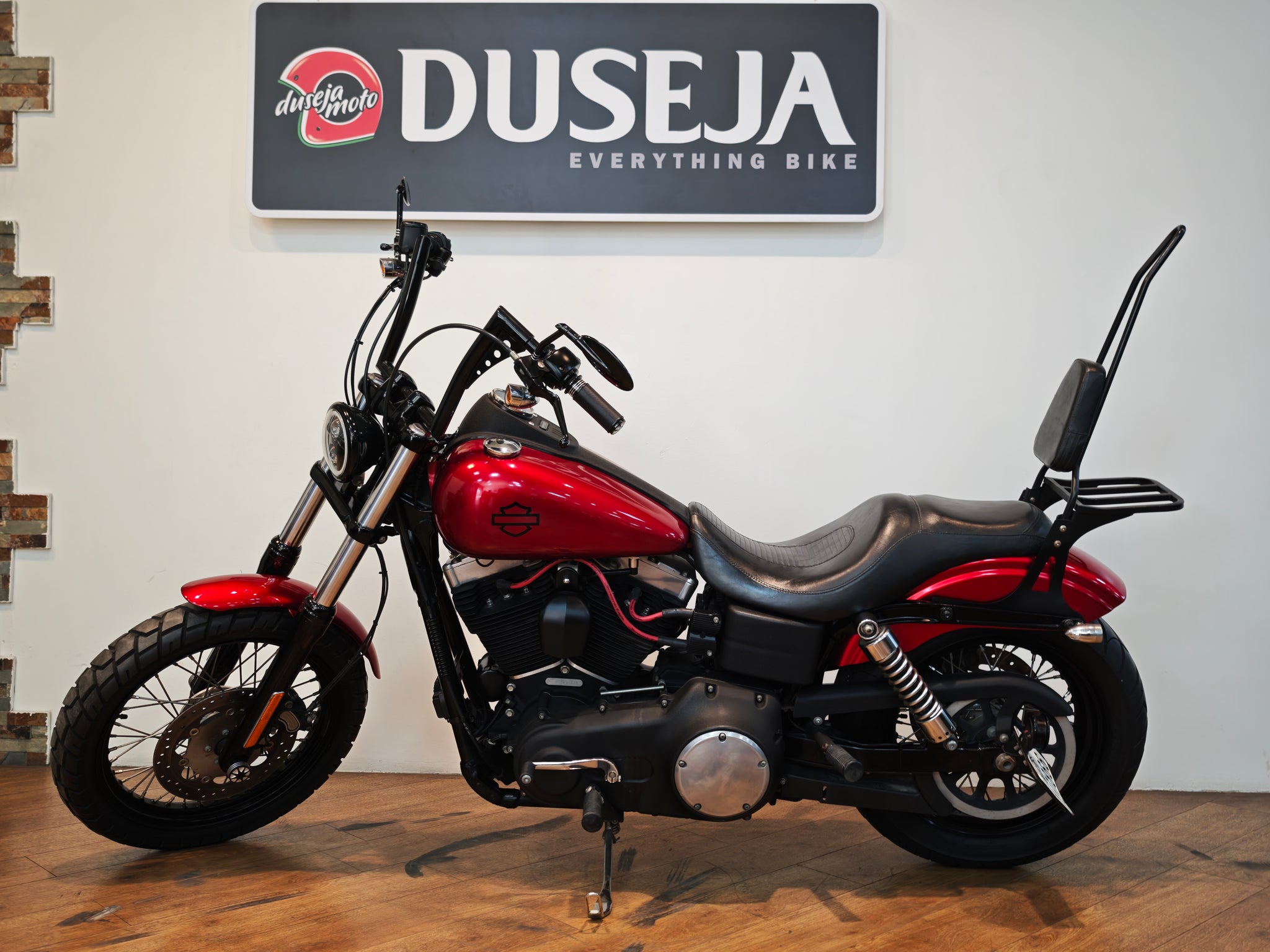

HARLEY-DAVIDSON DYNA STREET BOB FXDB

Make Model: Harley-Davidson Dyna Street Bob FXDB
Year: 2012

Category: Cruiser / Bobber
Model Code: FXDB
Colour : Ember Red Sunglo

Km: 15390

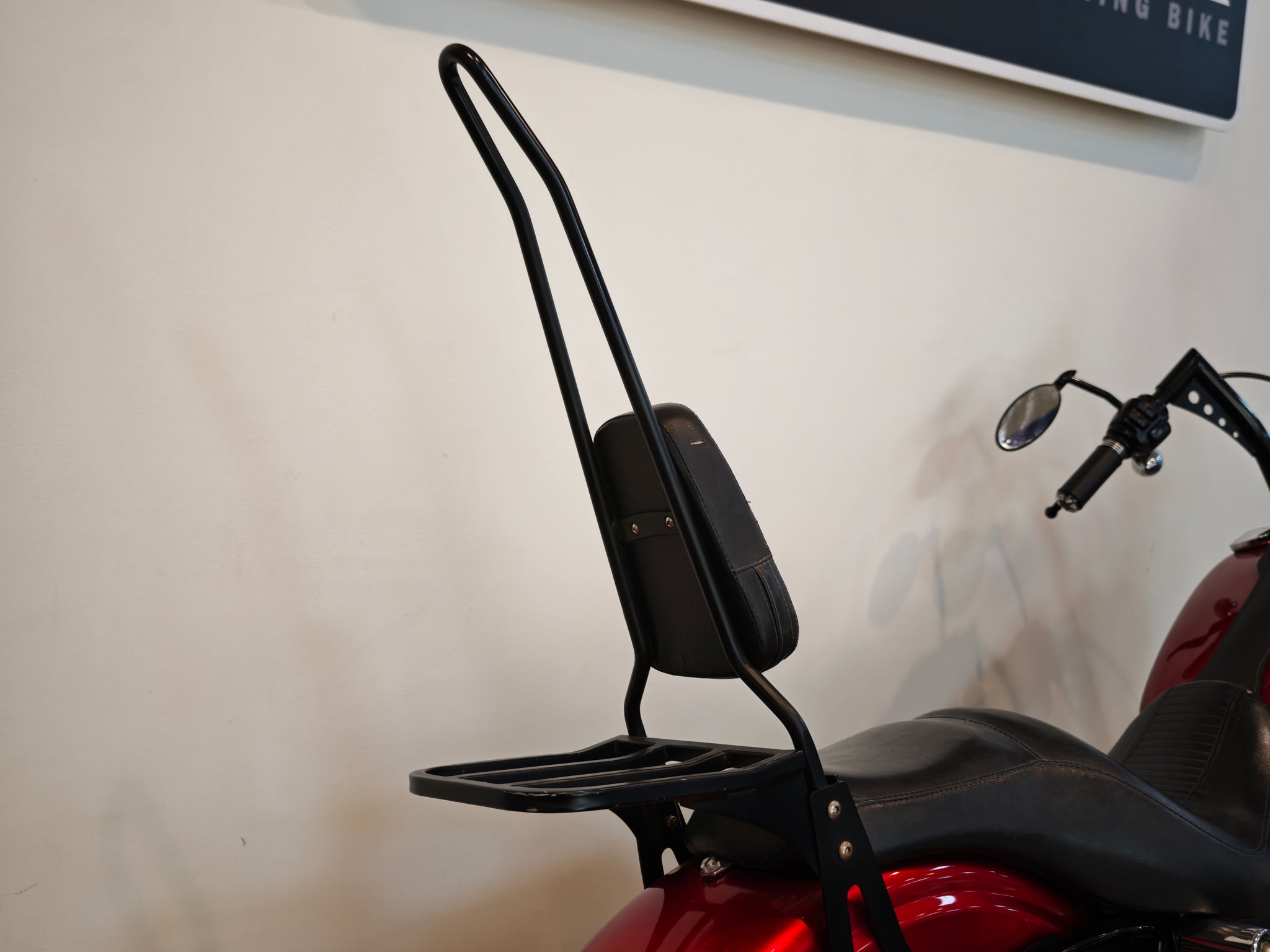

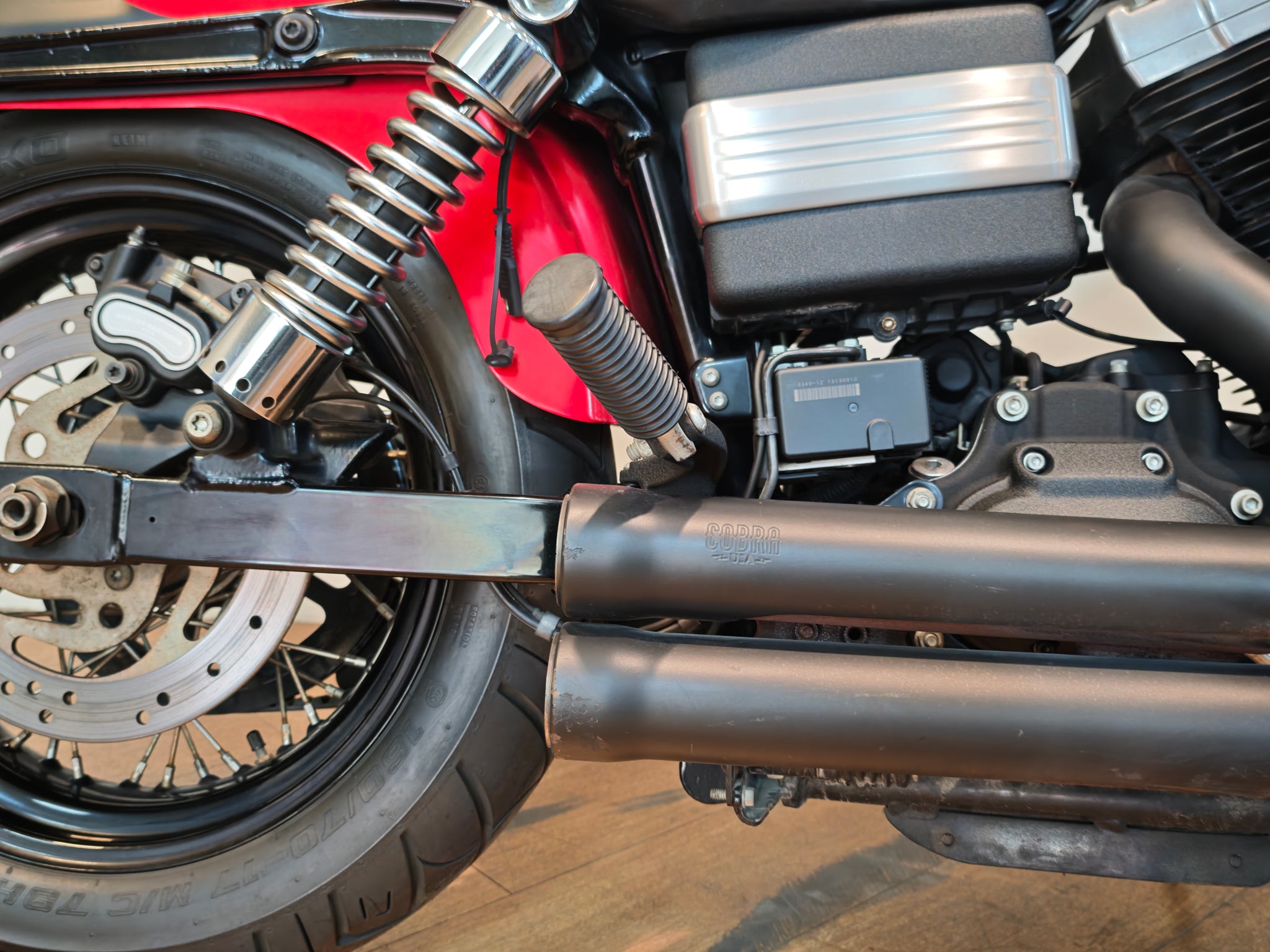

Additional Accessories:Cobra Speedster 909 exhaust system, Aftermarket sissy bar with pillion cushion, Side mount number plate , Aftermarket Ape Hanger handlebars, fork protectors .

ENGINE

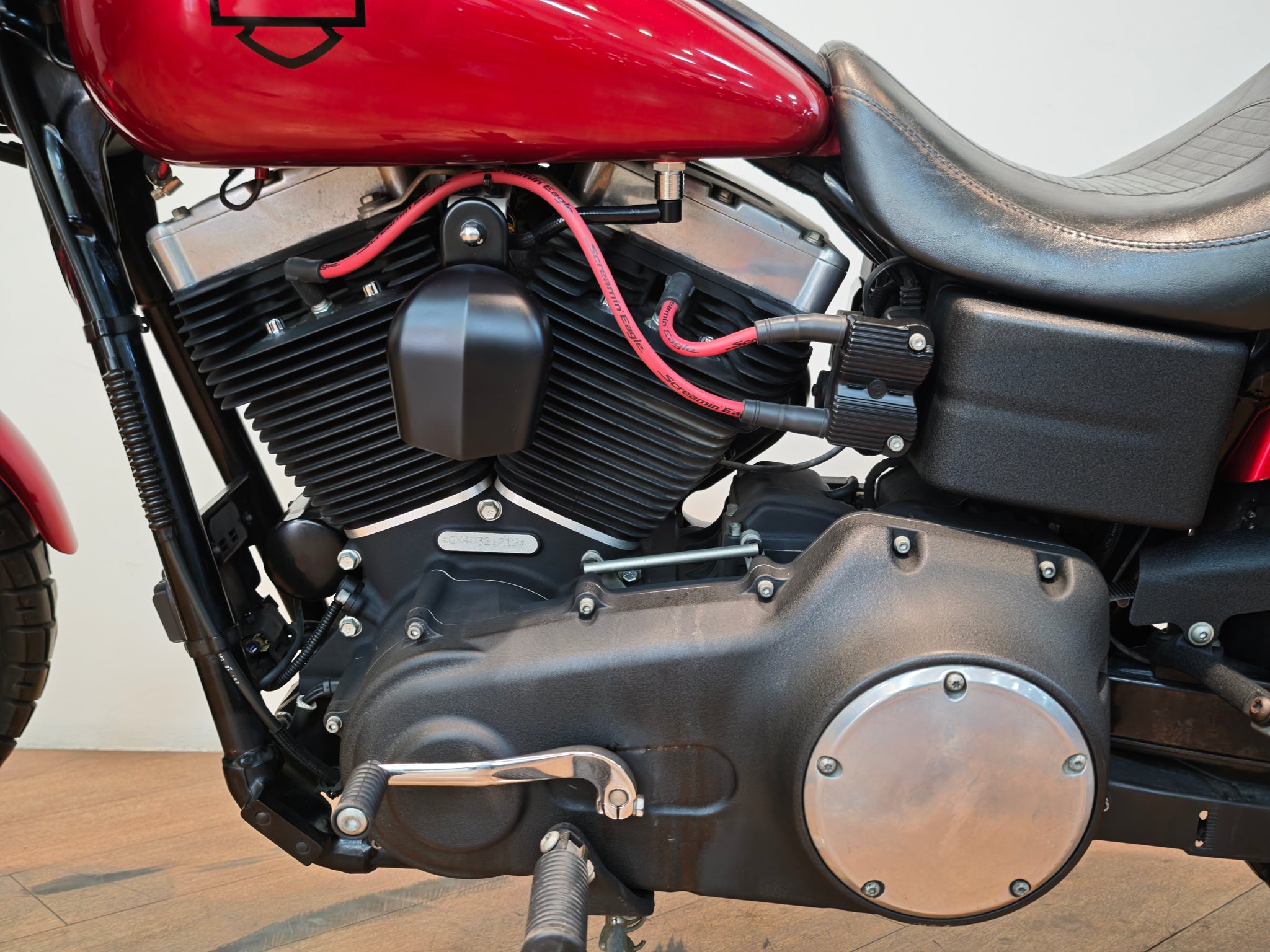

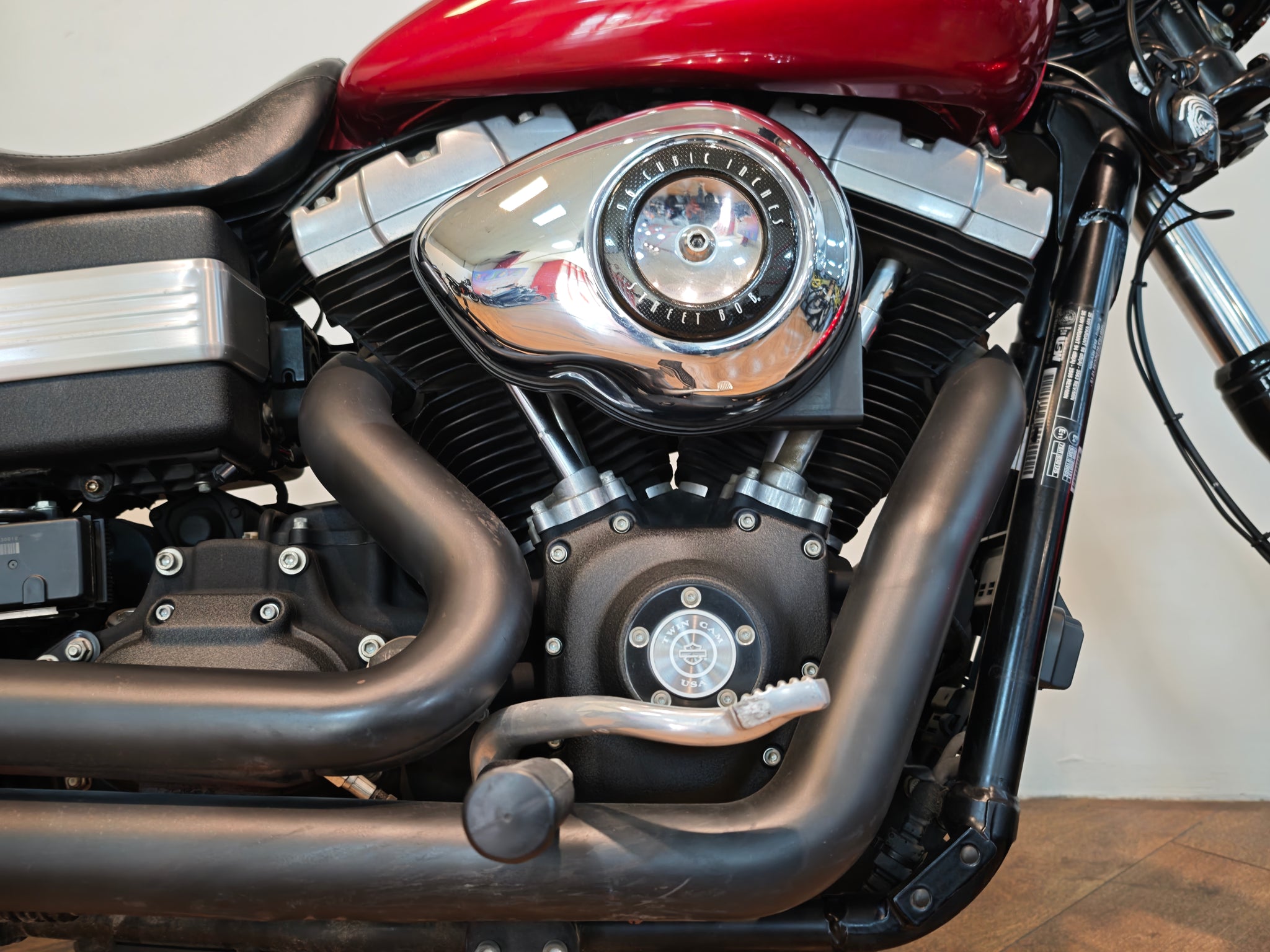

Engine Type: Four-stroke, 45° V-Twin, Twin Cam 96
Cooling System: Air cooled
Capacity: 1,584 cc / 96 cu-in
Bore x Stroke: 95.3 x 111.3 mm
Compression Ratio: 9.2:1
Valve Train: Pushrod-operated overhead valves with hydraulic self-adjusting lifters, 2 valves per cylinder
Fuel System: Electronic Sequential Port Fuel Injection – ESPFI
Lubrication: Pressurised dry-sump
Ignition: Electronic
Starting: Electric

Maximum Power: Approx. 73 hp / 54 kW @ 5,300 rpm*
Maximum Torque: 125 Nm / 92 lb-ft @ 3,000 rpm

*Harley-Davidson primarily published torque rather than an official peak horsepower figure for this model; the horsepower figure is a commonly quoted period specification.

TRANSMISSION

Transmission: 6-Speed Cruise Drive
Clutch: Wet, multi-plate
Primary Drive: Chain, 34/46 ratio
Final Drive: Belt, 32/66 ratio

FRAME & CHASSIS

Frame: Mild-steel tubular frame with rectangular-section backbone, stamped, cast and forged junctions and MIG-welded construction
Swingarm: Mild-steel rectangular-section swingarm
Rake: 29°
Trail: 119 mm / 4.7 in
Ground Clearance: 125 mm / 4.9 in

FRONT SUSPENSION

Type: 49 mm telescopic fork with polished aluminium triple clamp and dual-rate springs
Front Wheel Travel: 127 mm / 5.0 in

REAR SUSPENSION

Type: Twin exposed coil-over shock absorbers
Adjustment: Spring preload adjustable
Rear Wheel Travel: Approx. 79 mm / 3.1 in

FRONT BRAKE

Disc: Single 300 mm floating disc
Caliper: 4-piston fixed caliper
ABS: Optional

REAR BRAKE

Disc: Single 292 mm disc
Caliper: 2-piston torque-free floating caliper
ABS: Optional

WHEELS

Wheel Type: Black steel laced / wire-spoke wheels

Front Wheel: 19 x 2.5 in
Rear Wheel: 17 x 4.5 in

TYRES

Front Tyre: Michelin Scorcher 31 – 100/90B19 57H
Rear Tyre: Michelin Scorcher 31 – 160/70B17 73V

Recommended Cold Tyre Pressure

Front: 30 psi / 206 kPa
Rear: 40 psi / 276 kPa

DIMENSIONS

Overall Length: 2,357 mm / 92.8 in
Overall Width: 953 mm / 37.5 in
Overall Height: 1,280 mm / 50.4 in
Wheelbase: 1,631 mm / 64.2 in
Ground Clearance: 125 mm / 4.9 in

Seat Height – Unladen: 678 mm / 26.7 in
Seat Height – Laden: 648 mm / 25.5 in

WEIGHT

Dry / As-Shipped Weight: Approx. 289 kg / 637 lb
Running Order Weight: Approx. 304 kg / 670 lb
Gross Vehicle Weight Rating: 492.2 kg / 1,085 lb

Maximum Additional Load: Approx. 188 kg / 415 lb

CAPACITIES

Fuel Tank: 17.8 litres / 4.7 US gal
Engine Oil with Filter: 2.8 litres / 3.0 US qt
Transmission Oil: Approx. 0.95 litre / 1.0 US qt
Primary Chaincase: Approx. 0.95 litre / 1.0 US qt

FUEL & PERFORMANCE

Fuel Type: Unleaded petrol
Fuel Injection: ESPFI
Combined Fuel Consumption: Approx. 5.5 L/100 km / 43 US mpg
Maximum Torque: 125 Nm @ 3,000 rpm

The Twin Cam 96 engine is tuned around strong low- and mid-range torque rather than high-rpm peak horsepower.

ELECTRICAL SYSTEM

System Voltage: 12 V
Battery: Sealed, maintenance-free
Battery Capacity: 19 Ah
Cold Cranking Amps: Approx. 270 CCA
Charging System: Three-phase, 40 amp
Starter: 1.2 kW electric starter

Headlight: Halogen
Low Beam: 55 W
High Beam: 60 W

INSTRUMENTATION

Tank-mounted electronic instrumentation incorporating:

• Digital speedometer

• Odometer

• Dual trip meter

• Clock

• RPM / gear display

• Fuel level indication

• Low-fuel warning

• Low-oil-pressure warning

• Engine diagnostic indicator

• Turn-signal indicators

• High-beam indicator

• Neutral indicator

• 6th-gear indicator

RIDER EQUIPMENT & FEATURES

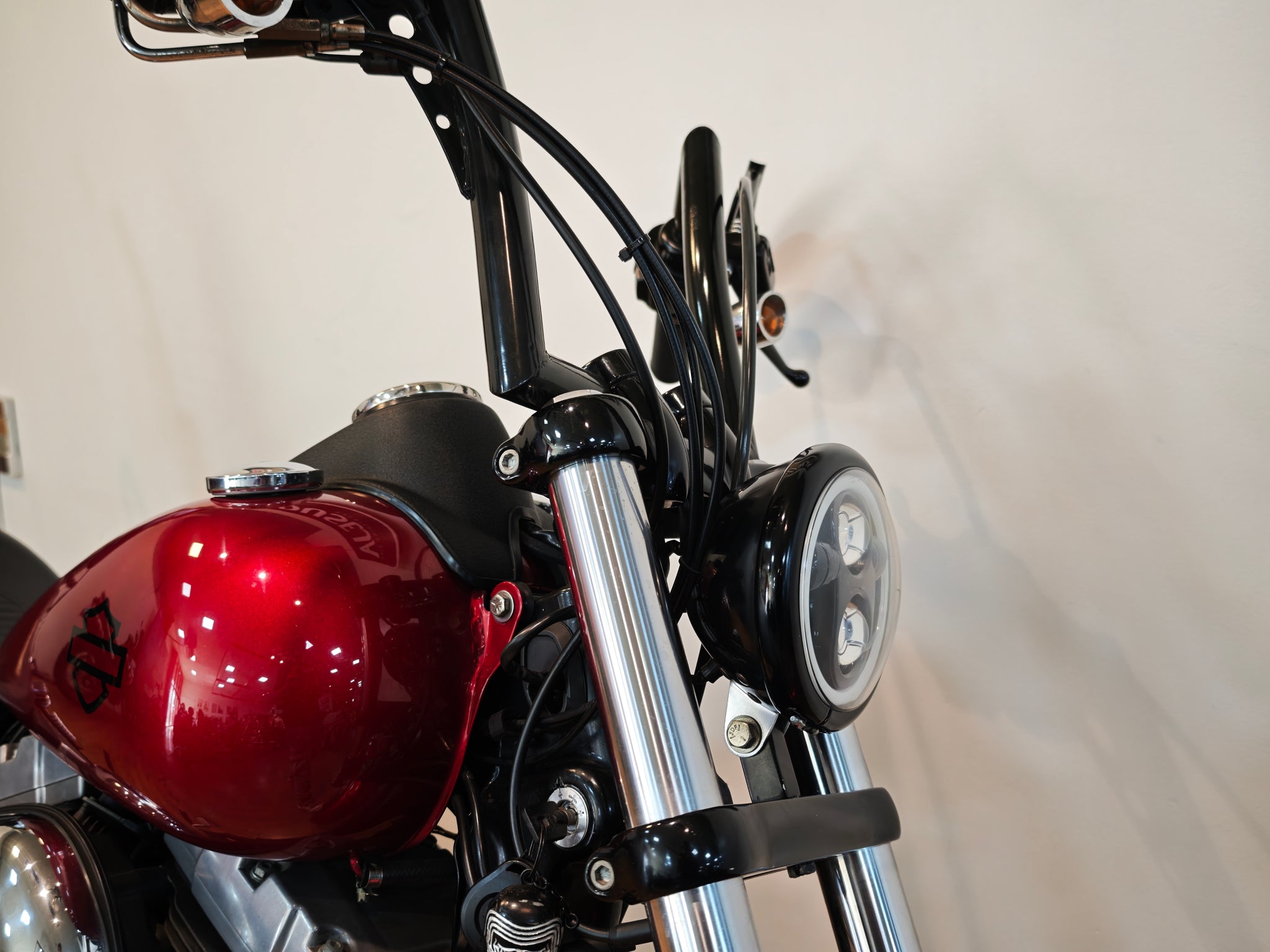

Handlebar: Mini ape-hanger style
Foot Controls: Mid-mounted
Seat: Low-profile solo seat

STREET BOB DESIGN FEATURES

The 2012 Street Bob follows Harley-Davidson's stripped-back factory bobber theme, combining traditional Dyna architecture with minimalist styling.

SUMMARY

Engine: 1,584 cc Twin Cam 96 V-Twin
Cooling: Air Cooled
Power: Approx. 73 hp / 54 kW
Torque: 125 Nm @ 3,000 rpm
Gearbox: 6-Speed Cruise Drive
Final Drive: Belt
Front Tyre: 100/90B19 57H
Rear Tyre: 160/70B17 73V
Front Brake: 300 mm Disc, 4-Piston
Rear Brake: 292 mm Disc, 2-Piston
Seat Height: 648 mm Laden
Running Weight: Approx. 304 kg
Fuel Capacity: 17.8 L
Wheelbase: 1,631 mm
