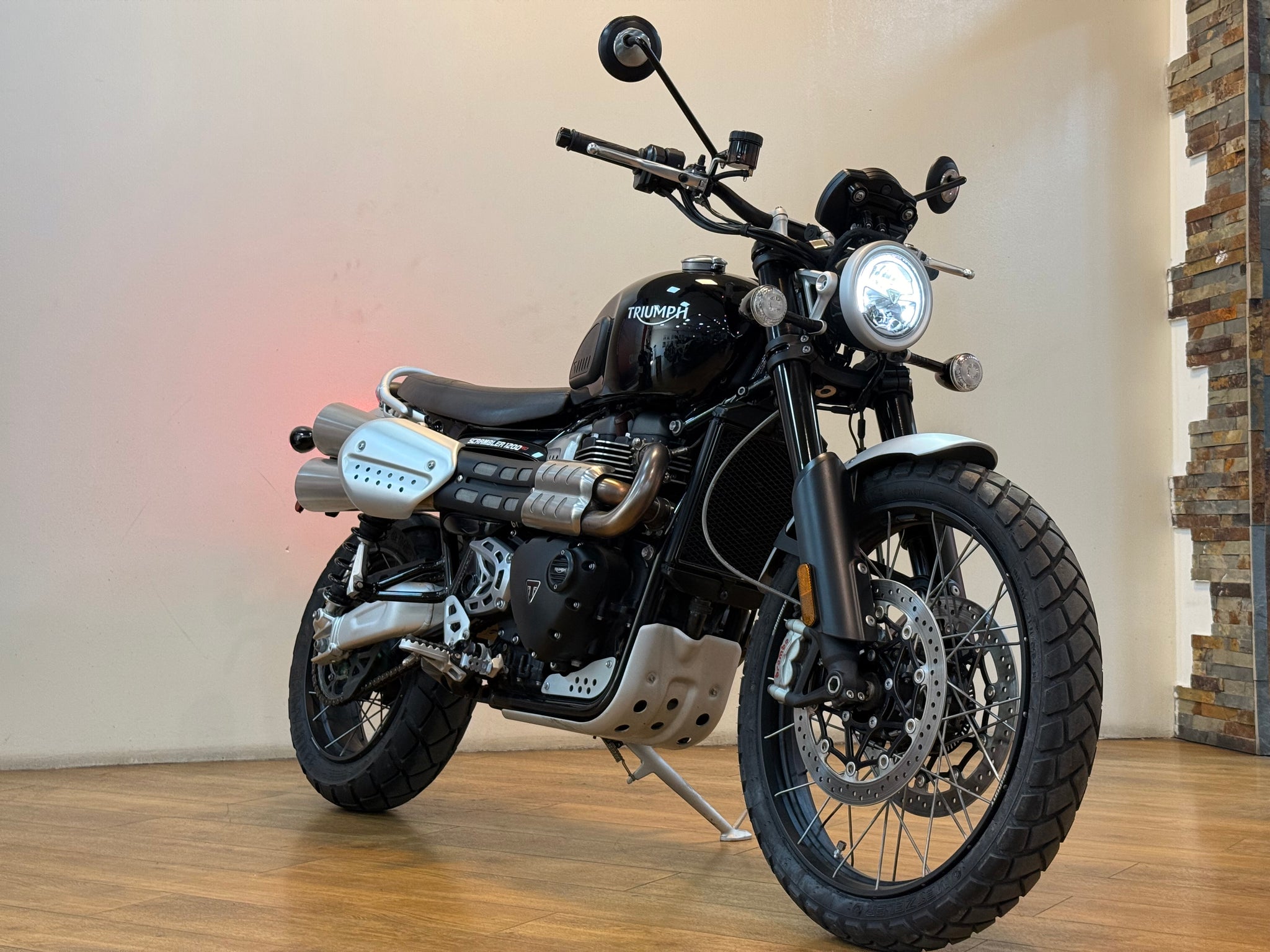

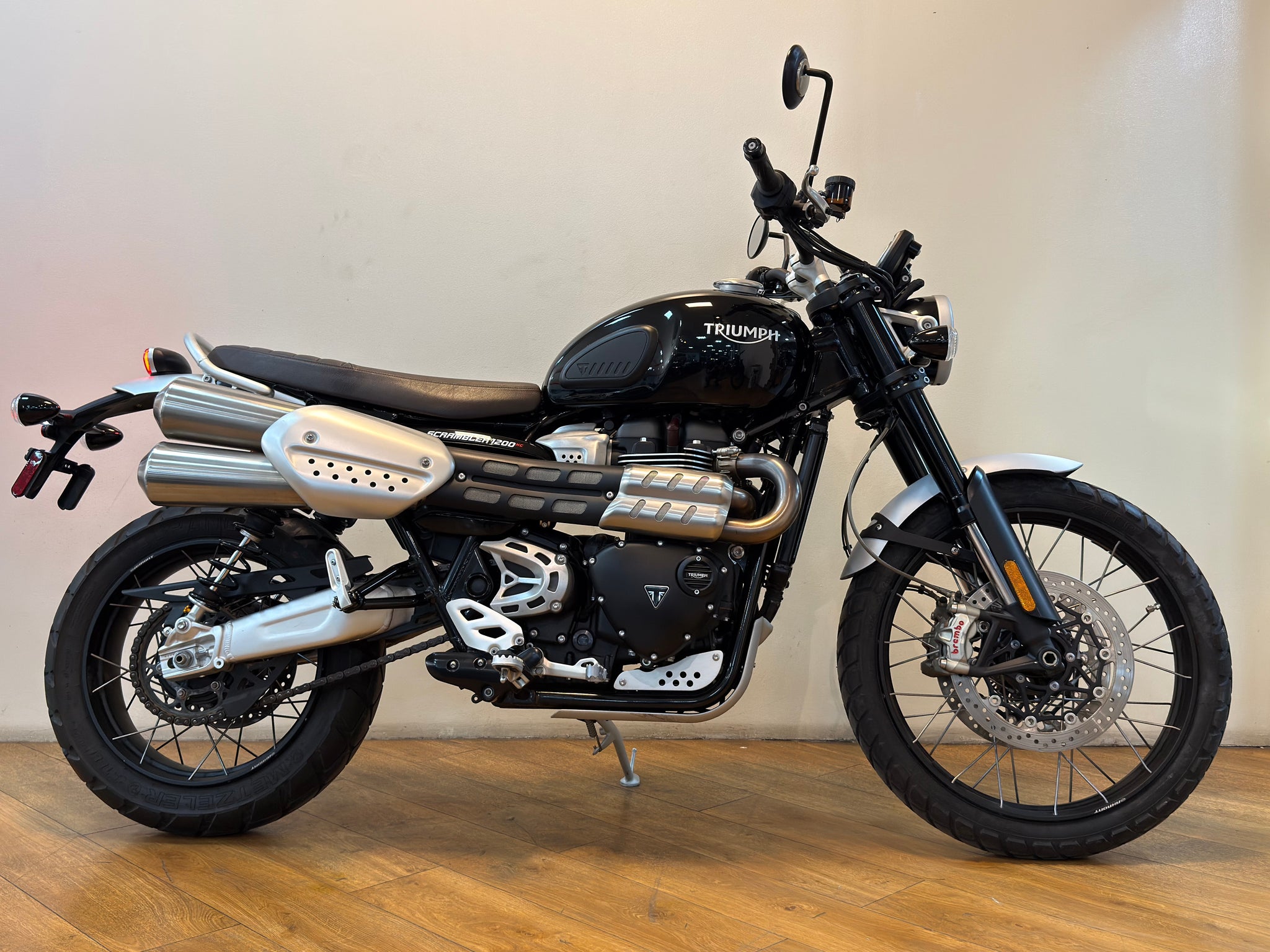

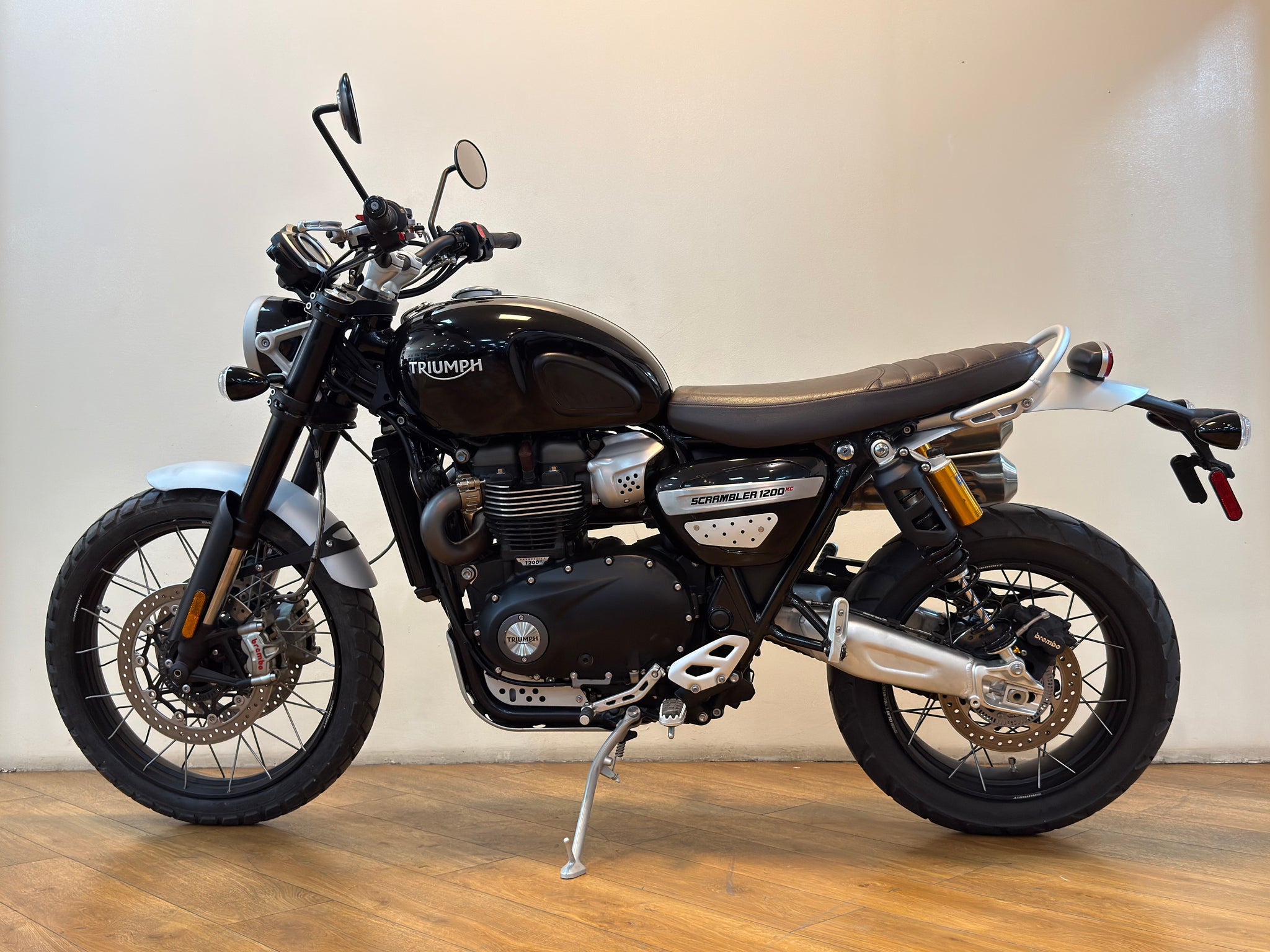

2022 Triumph Scrambler 1200 XC
Model Year: 2022
Color : Black

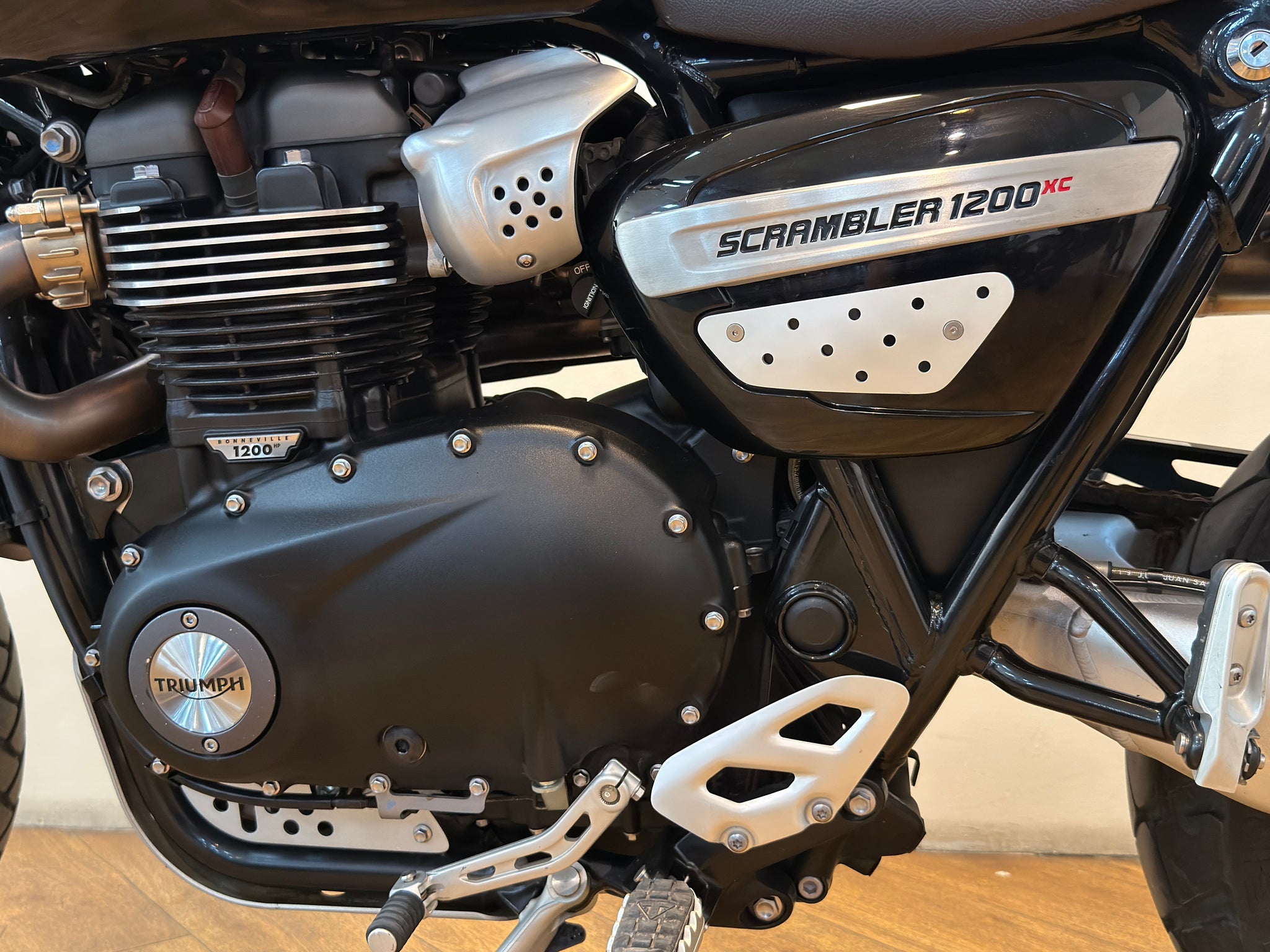

Engine
- Type: Liquid-cooled, 8-valve, SOHC, 270° crank angle parallel-twin
- Displacement: 1,200 cc
- Bore x Stroke: 97.6 mm x 80.0 mm
- Compression Ratio: 11.0:1
- Max Power: 89 hp (66.2 kW) @ 7,400 rpm
- Max Torque: 110 Nm (81.1 lb-ft) @ 3,950 rpm
- Fuel System: Multipoint sequential electronic fuel injection

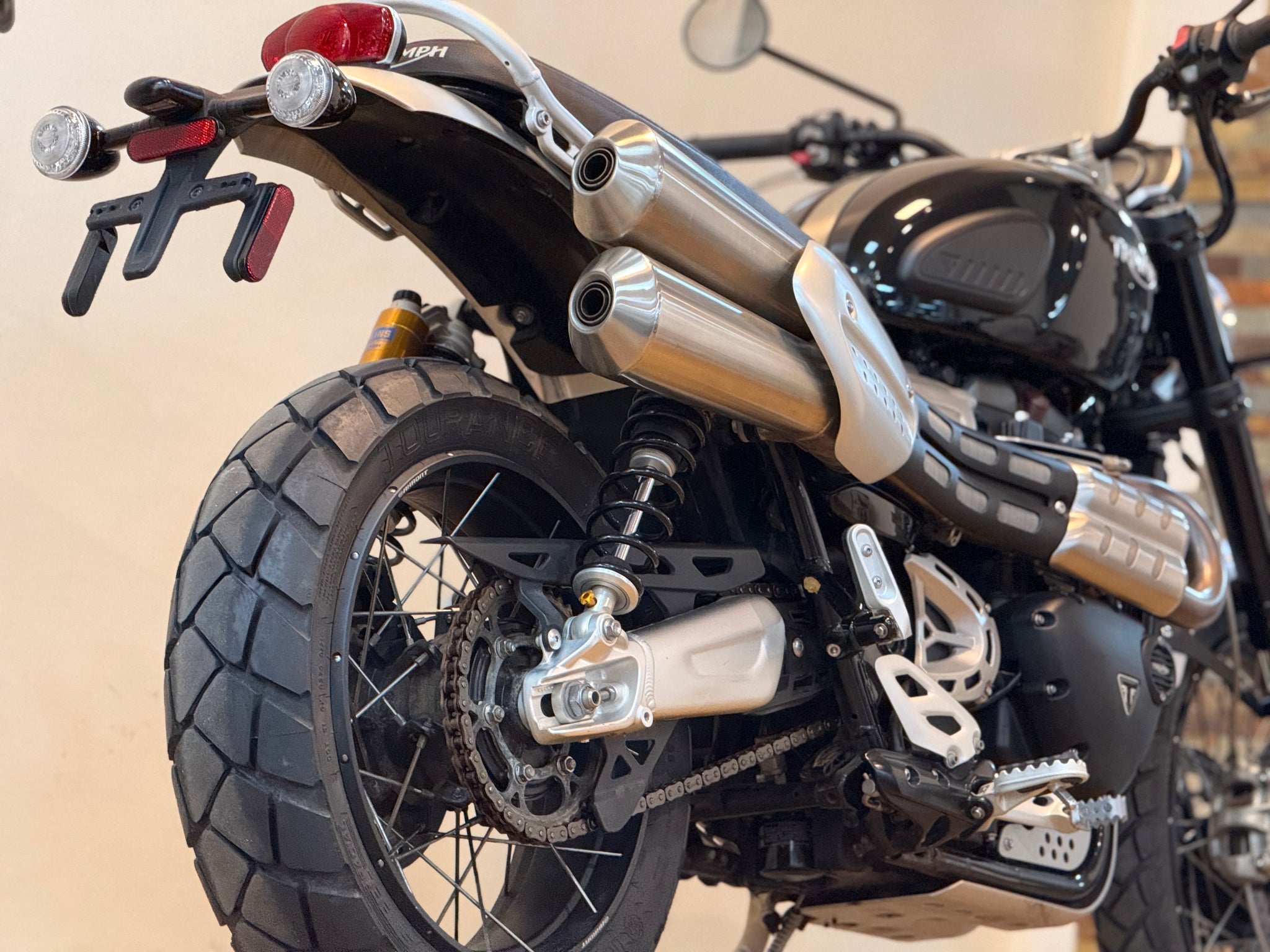

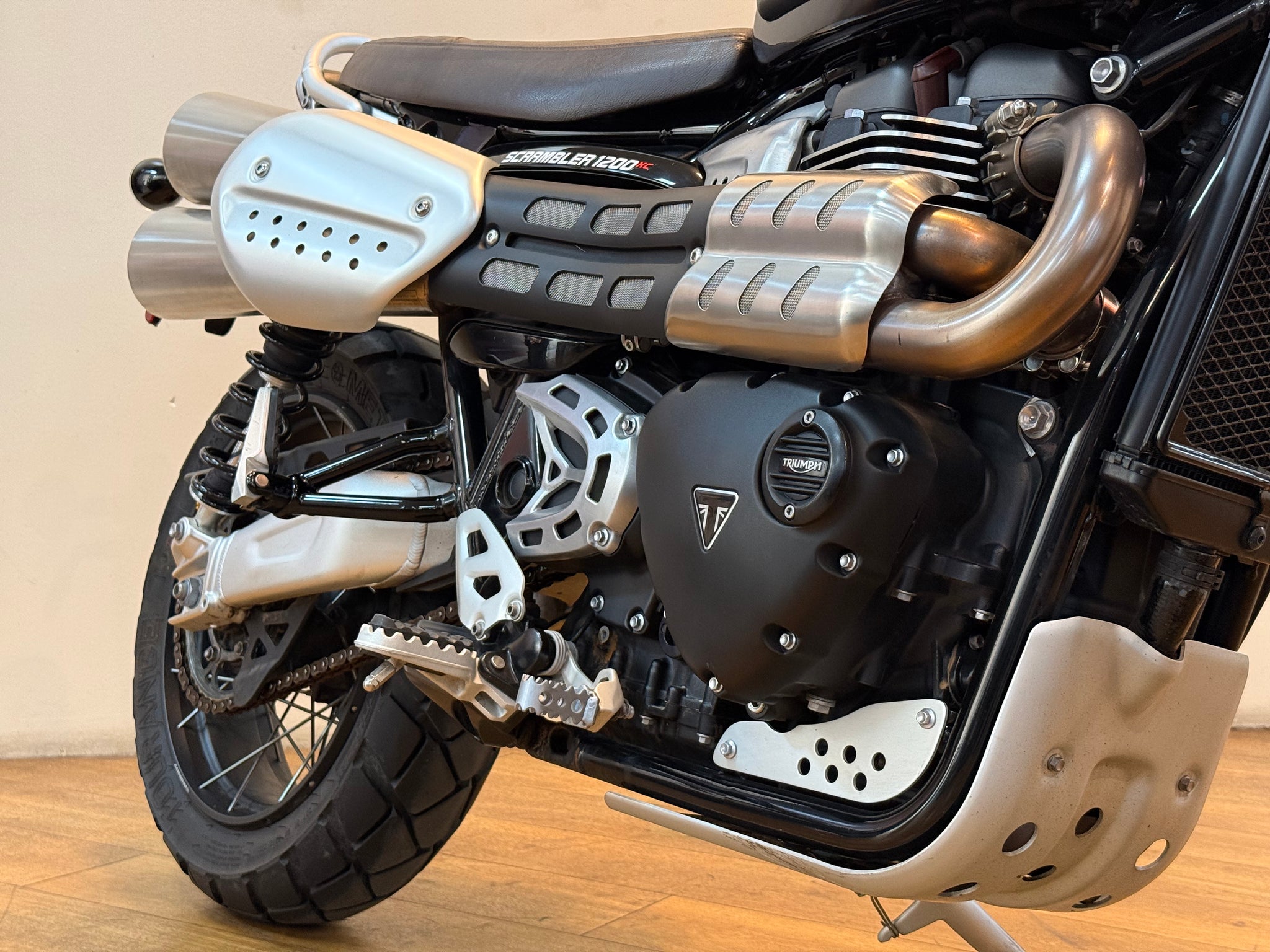

- Exhaust: Brushed 2-into-2 exhaust system with brushed high-level silencers
Transmission
- Type: 6-speed manual
- Clutch: Wet, multi-plate assist clutch
- Final Drive: X-ring chain
Chassis & Suspension
- Frame Type: Tubular steel with aluminum cradles
- Swingarm: Twin-sided, aluminum, 547 mm long
- Front Suspension: Showa 45 mm fully adjustable USD forks; 200 mm wheel travel

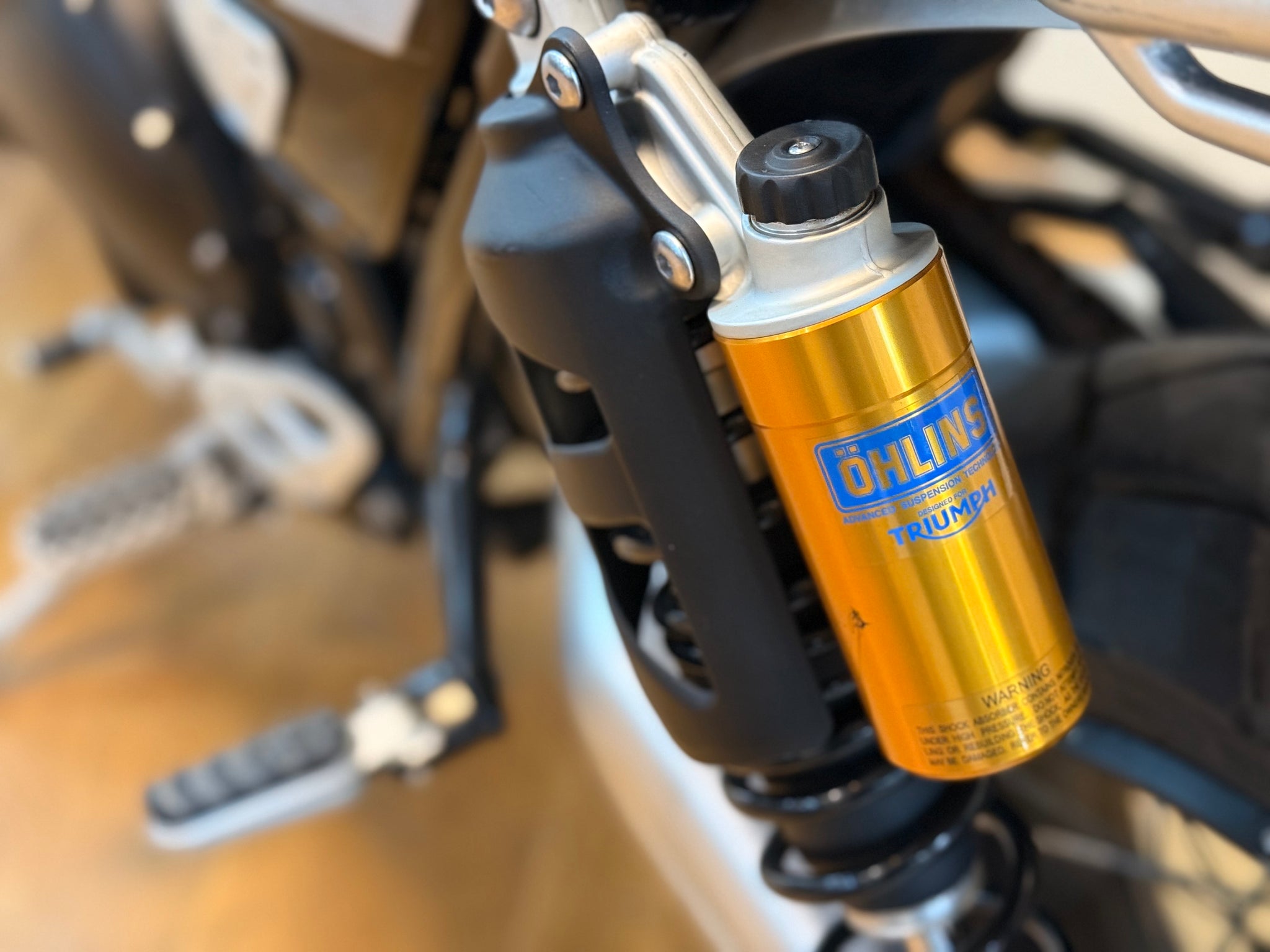

- Rear Suspension: Öhlins fully adjustable piggy-back RSUs with twin springs; 200 mm wheel travel
Brakes

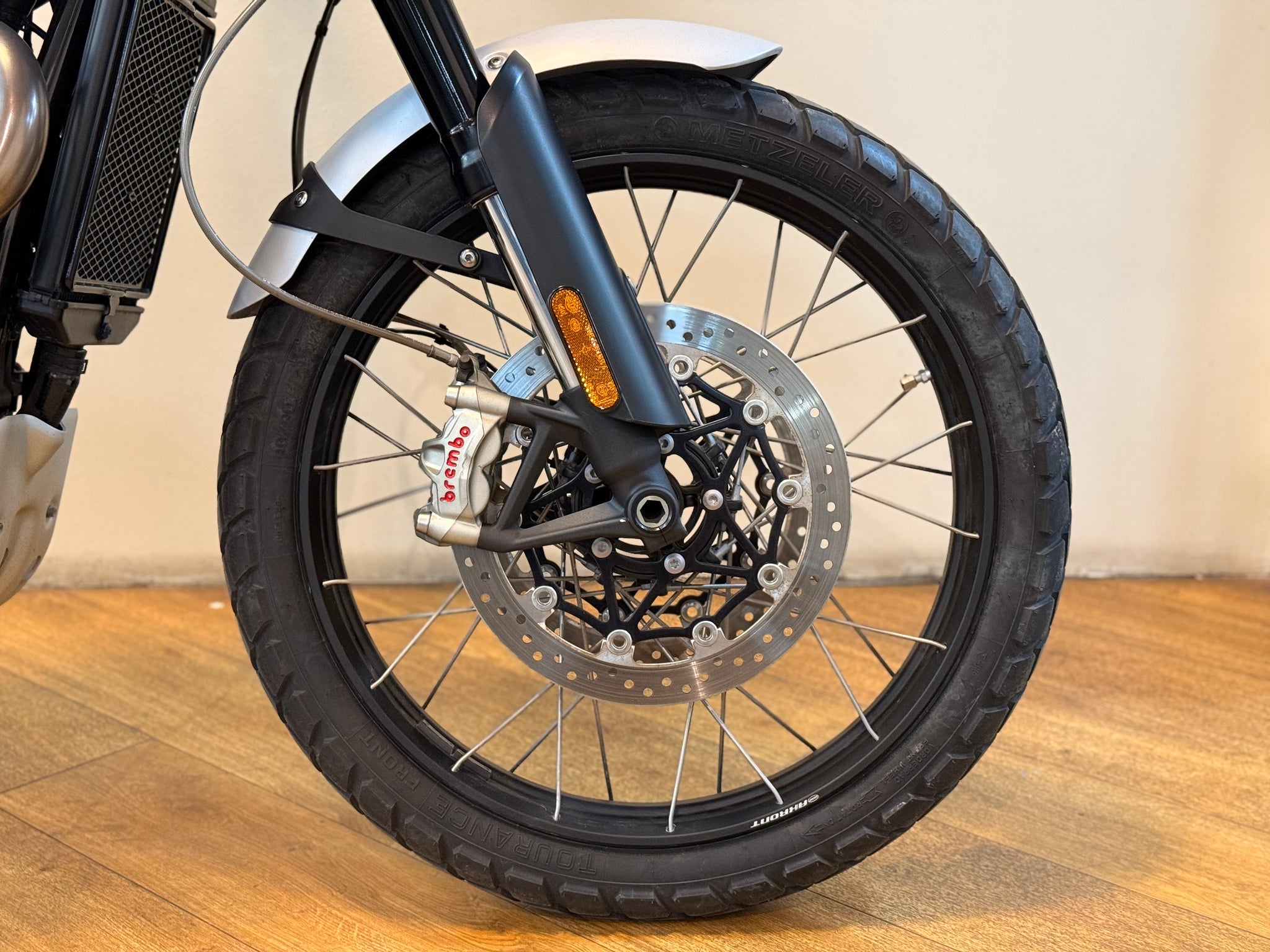

- Front Brakes: Twin 320 mm discs, Brembo M50 monobloc 4-piston radial calipers; switchable ABS

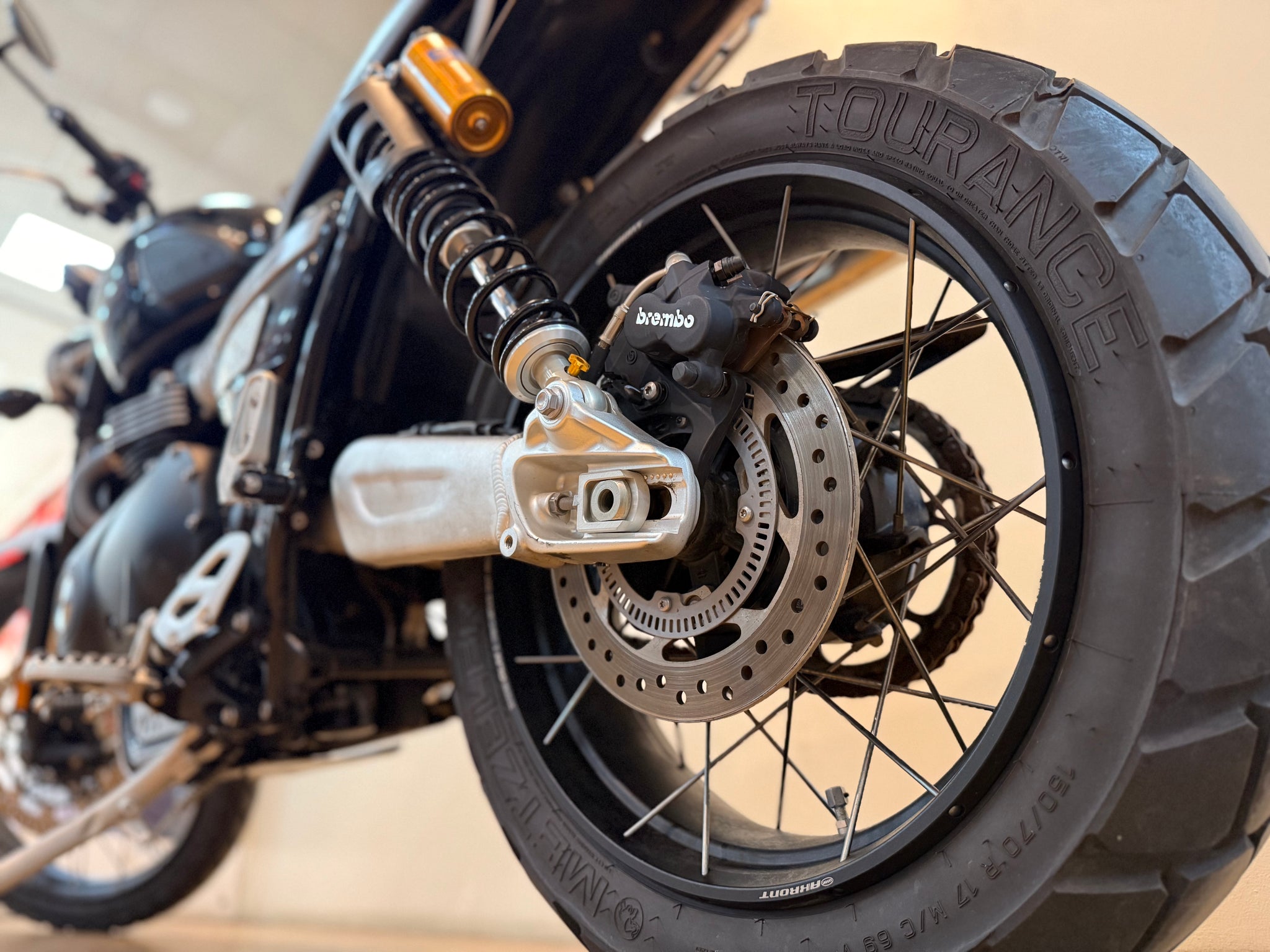

- Rear Brake: Single 255 mm disc, 2-piston floating Brembo caliper; switchable ABS
Wheels & Tires
- Front Wheel: Tubeless 36-spoke 21 x 2.15 in, aluminum rim
- Rear Wheel: Tubeless 32-spoke 17 x 4.25 in, aluminum rim
- Front Tire: 90/90-21
- Rear Tire: 150/70 R17
Dimensions
- Width (Handlebars): 840 mm (33.1 in)
- Height (Without Mirrors): 1,200 mm (47.2 in)
- Seat Height: 840 mm (33.1 in)
- Wheelbase: 1,530 mm (60.2 in)
- Rake: 25.8°
- Trail: 121 mm (4.76 in)
- Dry Weight: 205 kg (452 lbs)

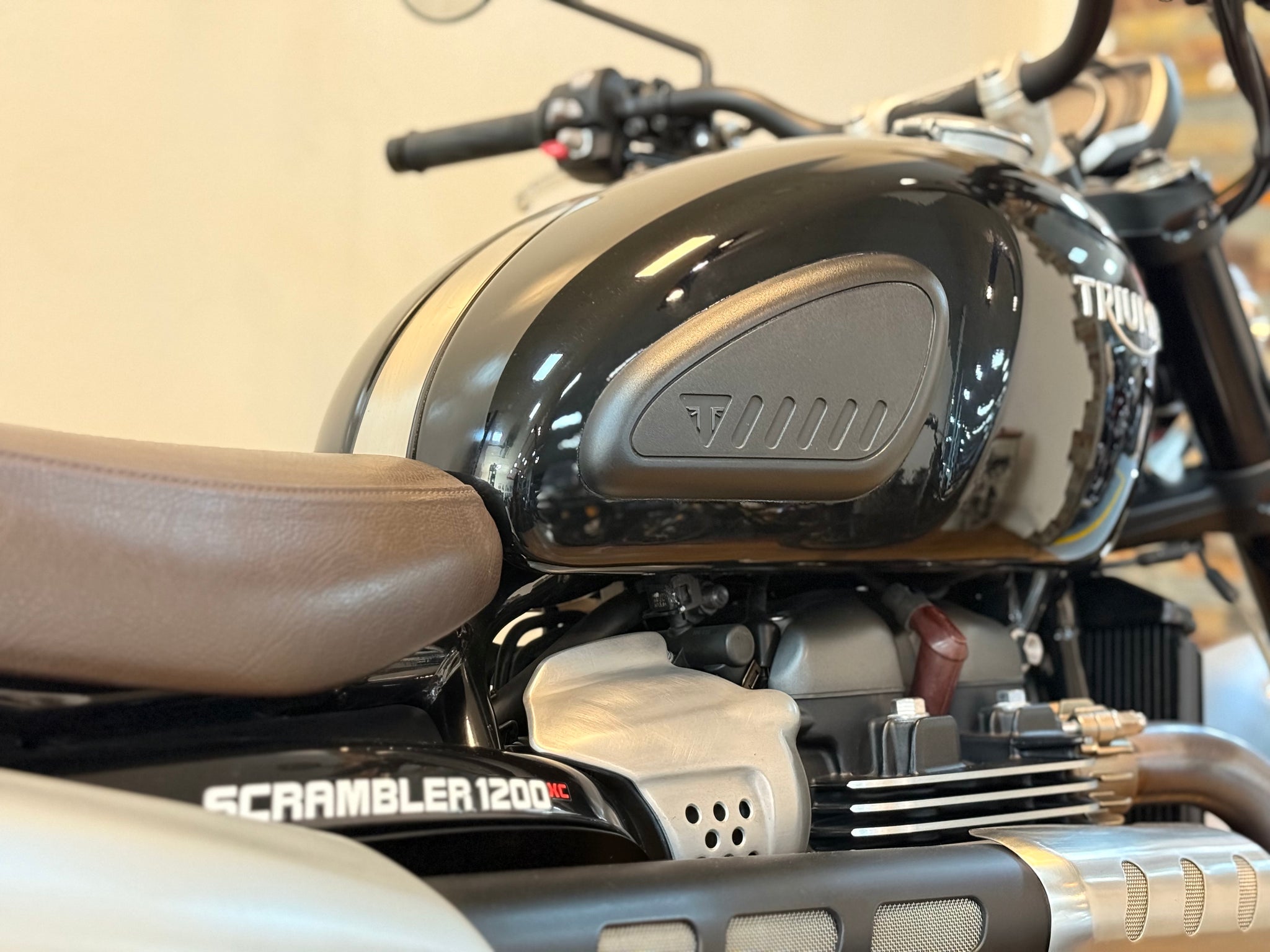

- Fuel Tank Capacity: 16 liters (4.2 US gal)
Performance
- Max Power: 89 hp (66.2 kW) @ 7,400 rpm
- Max Torque: 110 Nm (81.1 lb-ft) @ 3,950 rpm
- Fuel Consumption: 51.1 mpg (4.6 L/100 km)
Features

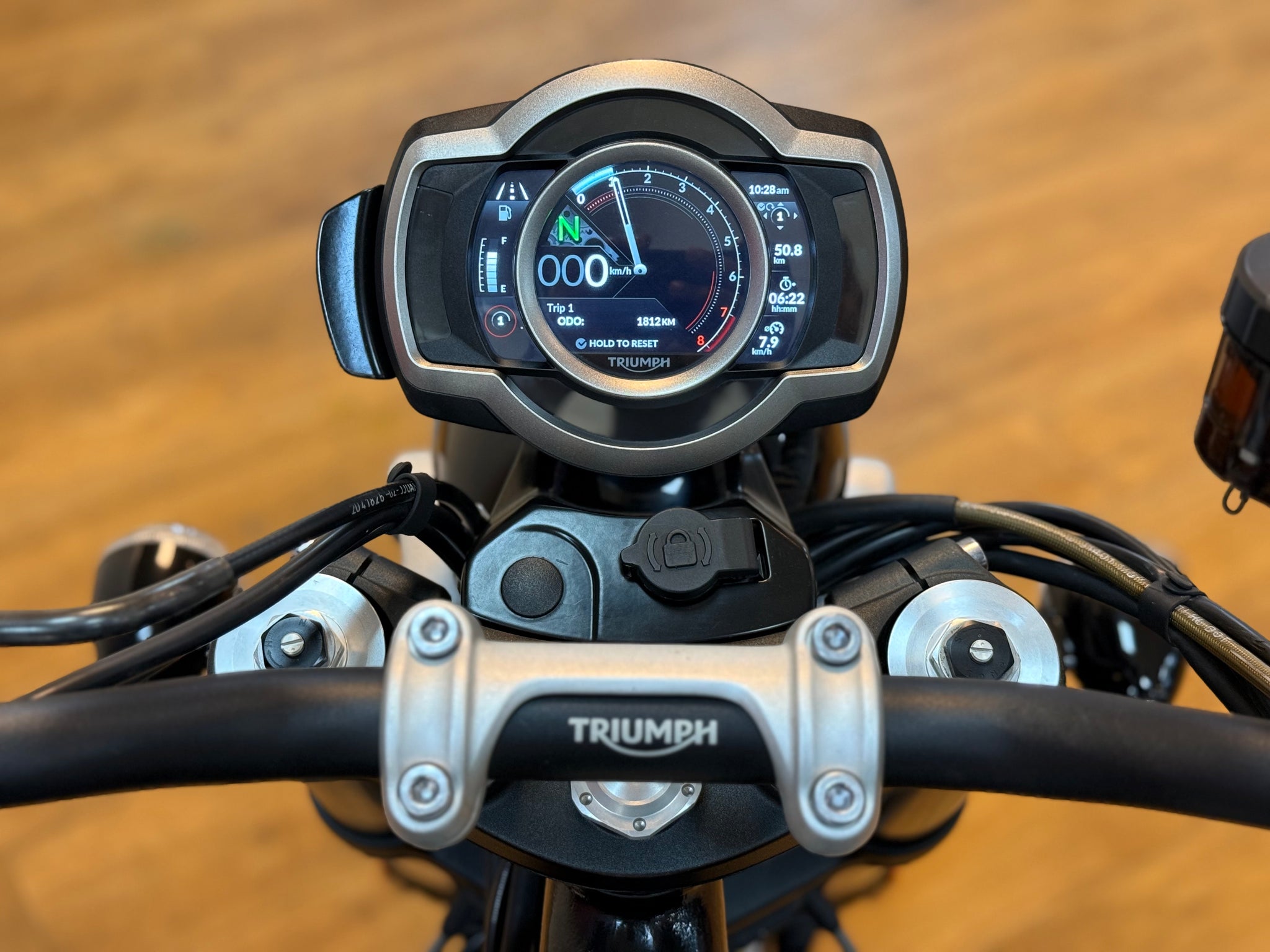

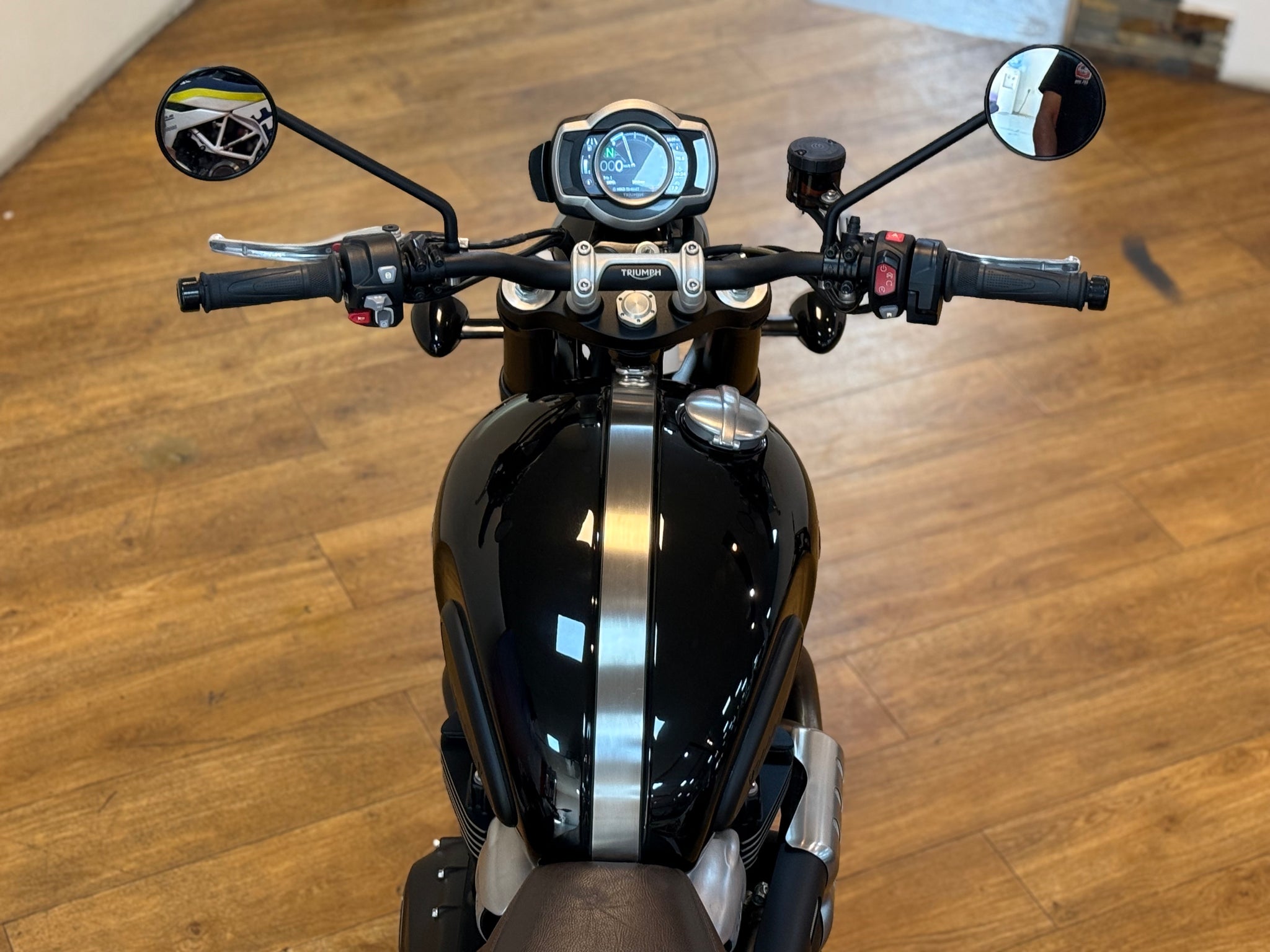

- Instrumentation: TFT multifunctional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, clock, and rider modes (Rain/Road/Sport/Off-Road/Rider-Customizable)

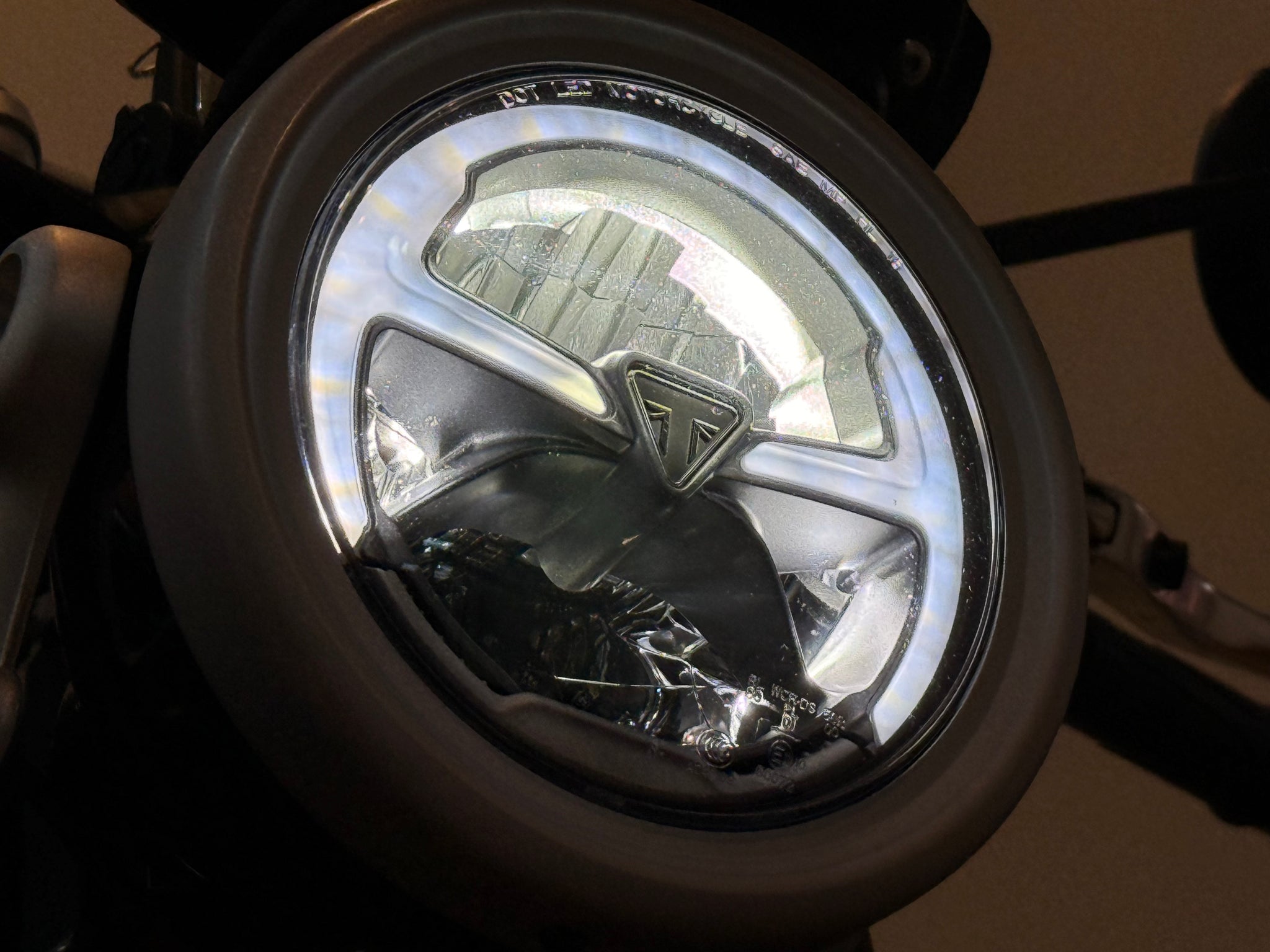

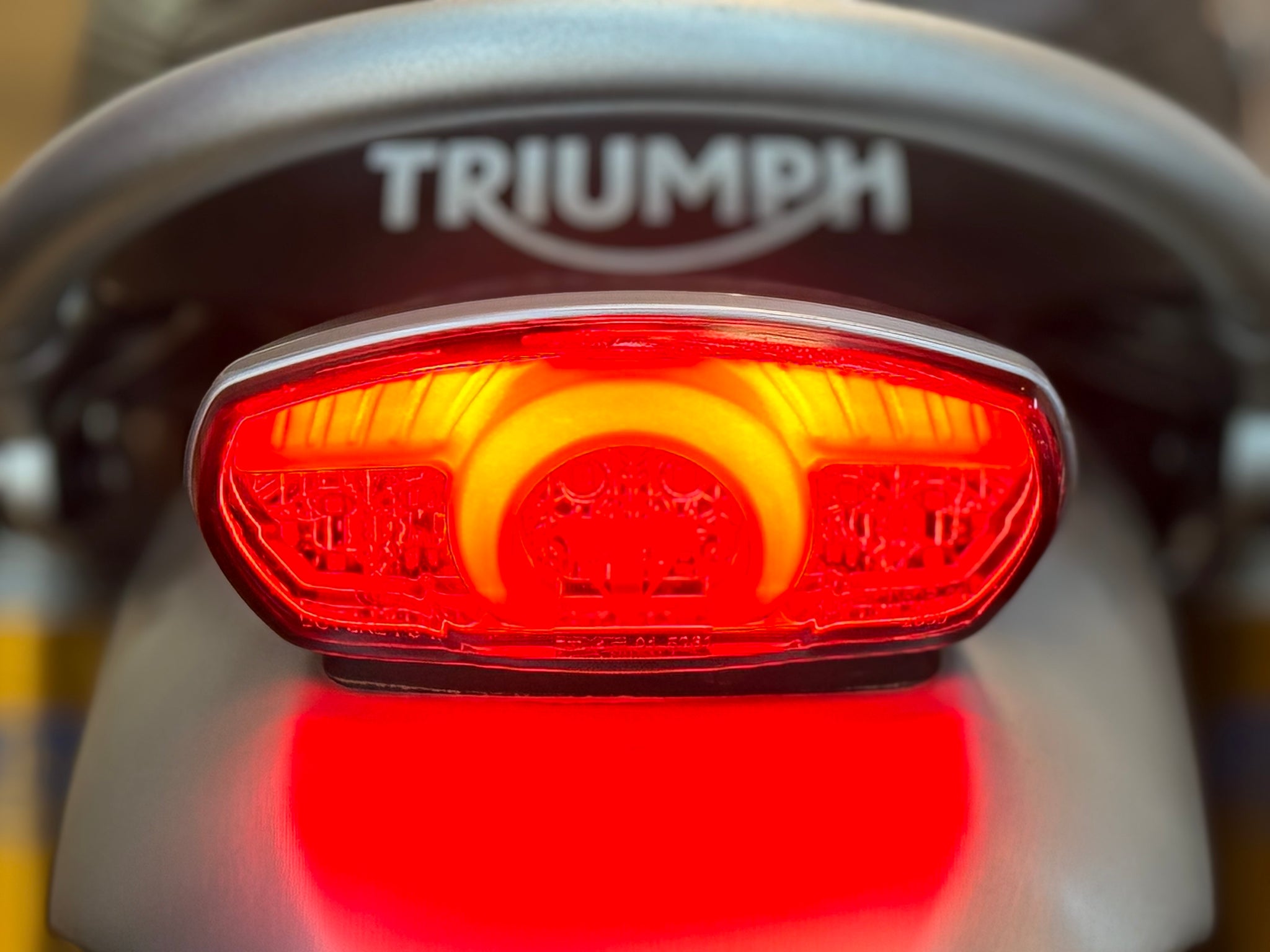

- Lighting: LED headlight with DRL, LED taillight, LED indicators
- Riding Modes: Five modes – Rain, Road, Sport, Off-Road, and Rider-Customizable

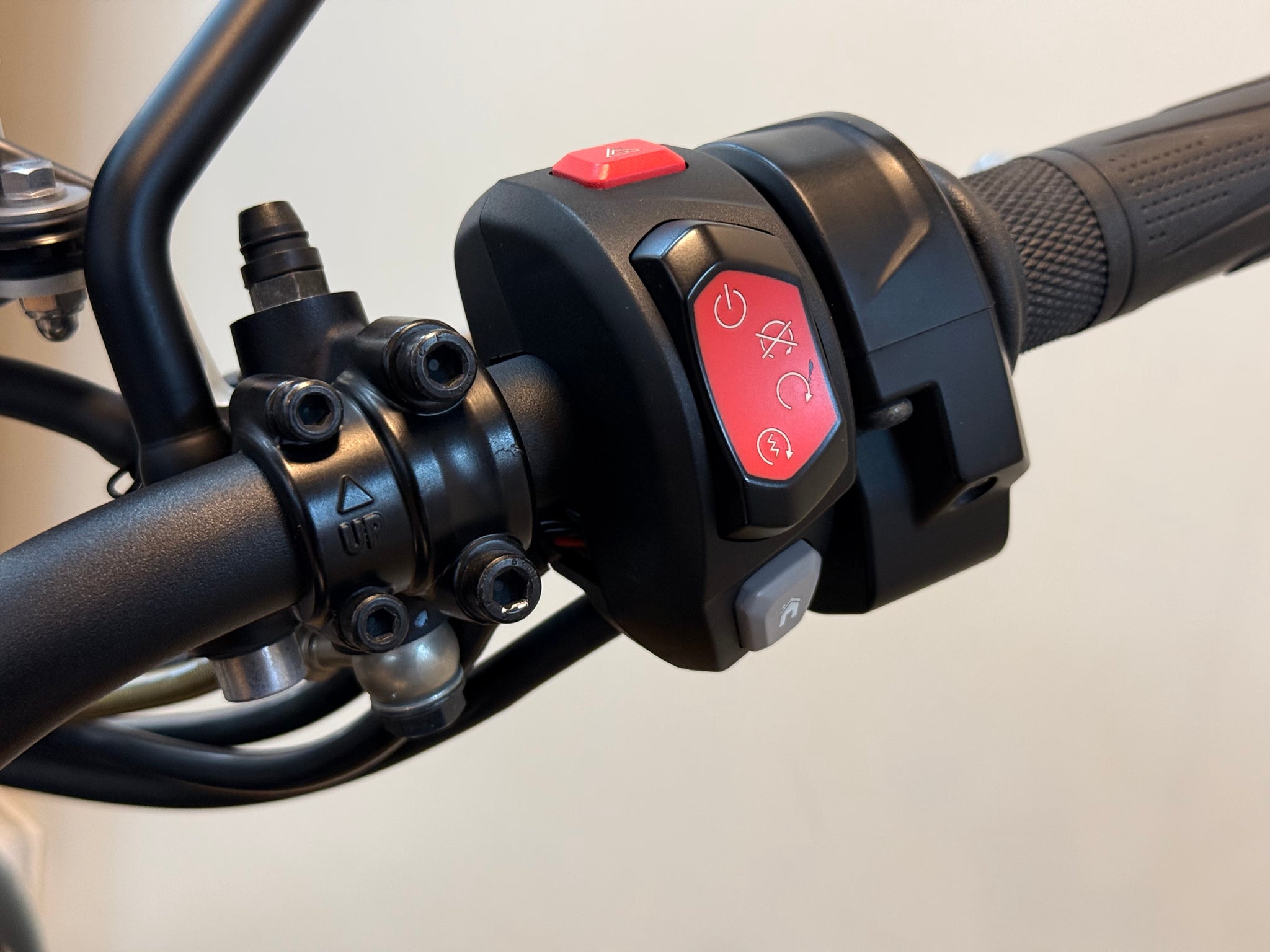

- Additional Features: Cruise control, ride-by-wire throttle, switchable ABS, traction control, torque-assist clutch
